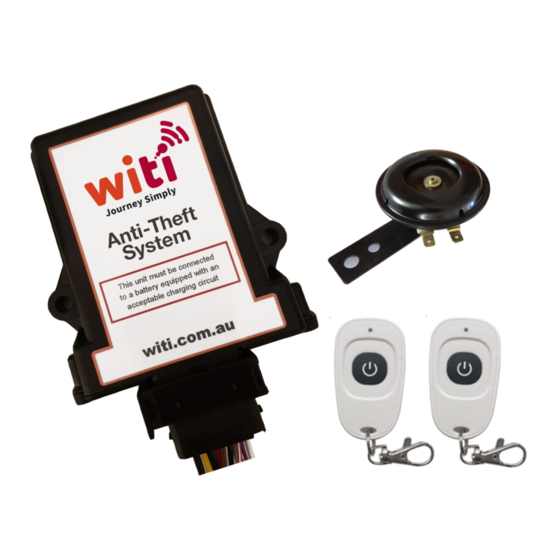

- Page 1 Wireless Interface...
-
Page 2: Warnings And Safety Instructions
LOW VOLTAGE ALARM WiTi features a low voltage alarm. If voltage drops below 11.5V on the battery in the trailer or caravan, the alarm will sound on the trailer unit to alert the driver. The alarm is a different pitch to the Anti-Theft alarm. - Page 3 Remote Control button for 1/2 a second before another activation sequence is attempted. WiTi BREAK AWAY WiTi includes a Break Away system that activates the brakes in the caravan or trailer in the event of failure of the tow hitch and the tow vehicle and trailer are separated.
-
Page 4: Specifications
SPECIFICATIONS Vehicle Unit Trailer Unit Nominal System Voltage 12V - 24V Operating Voltage 9V - 25V 9V-14V Standby Current <10mA <10mA Operating Temperature -20C – 60C -20C – 60C Max. Trailer Axles 3 Axles Lighting circuit/s max draw Braking circuit max draw Maximum Rated Current Weight 270g... - Page 5 DCDC charger. CIRCUIT PROTECTION AND FAULT CONDITIONS In the event a short circuit or overload is detected WiTi will disable all functions and the Alarm Status LED will flash. The Alarm Status LED will continue to flash until the short circuit is repaired and the unit restarted by pressing the button on the remote control.
- Page 6 Do not connect to an existing Break Away system - only connect the orange wires to a Break Away switch if WiTi is to act as a Break Away as well as Anti-Theft. 12V+ connect to positive terminal on house battery and protect with a 30A fuse.
- Page 8 WiTi must be connected to a permanent power supply and the circuit protected with a 5 Amp fuse. It is recommended to remove power from the Vehicle Unit if it is going to be in storage or unused for a period longer than 2 weeks.
- Page 10 4 pin and 2 pin corresponding plugs on the WiTi wiring harness. Ignore the two orange wires, those are not connected. WiTi GPS is supplied with a SIM and does not require connection to a third party network provider. The WiTi GPS is network independent and will operate wherever mobile phone signal is available irrespective of service provider.
- Page 11 Step 4: Complete the form Complete the form and make note of the following selections: WiTi Registration Number Choose Protect Once you hit “Submit” you will automatically receive an email with your activation letter.
- Page 12 How to get warranty service During the warranty period, if you wish to return a defective product you may contact us via www.witi.com.au. You may then return the defective product to the address given accompanied by an acceptable proof of purchase (a bill of sale or receipted invoice).
