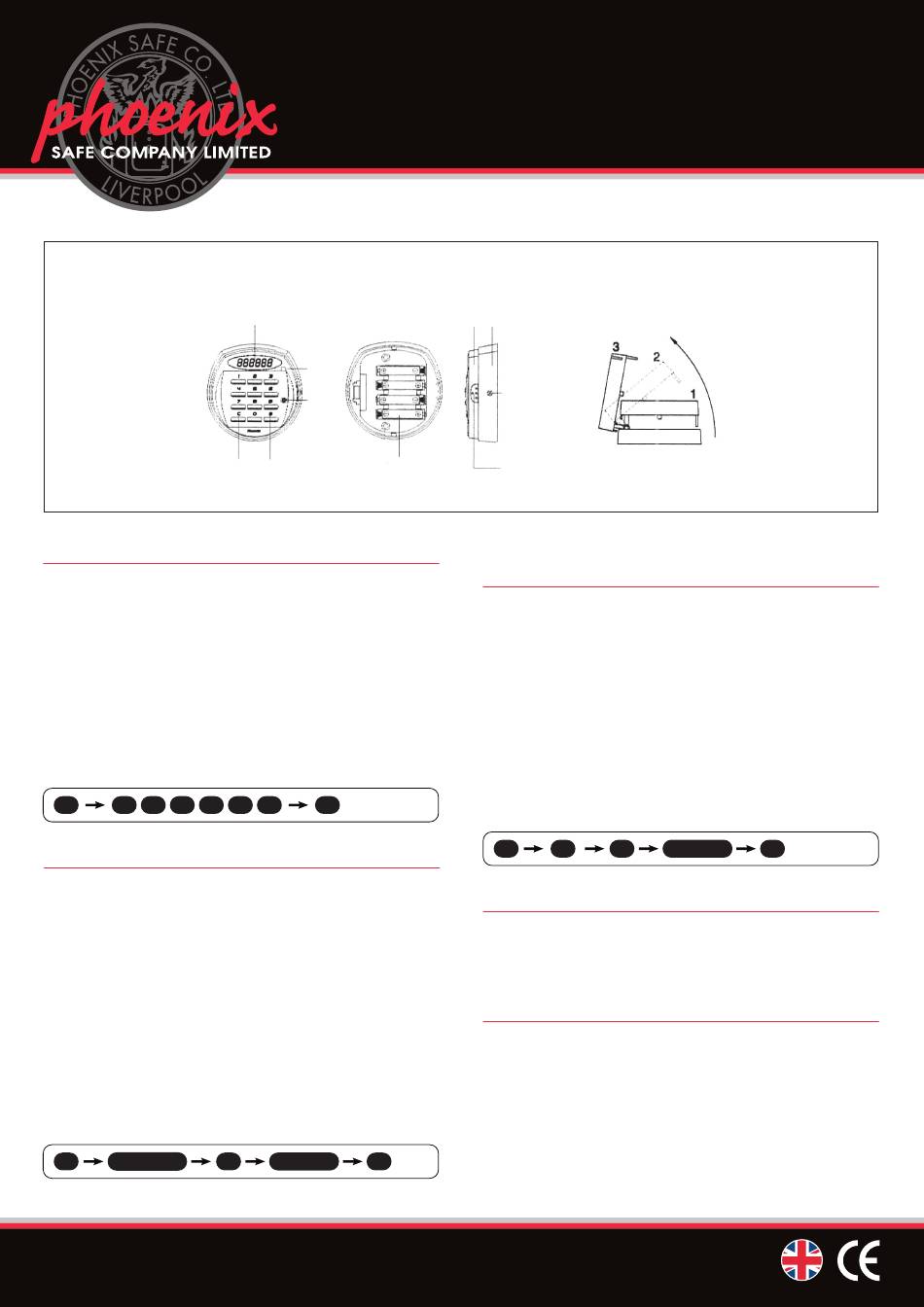

Phoenix R3 Quick Start Manual

Battery Installation – 4 x LR03 AAA Alkaline (supplied)
Keypad and LCD Display Window
C Button
Start Button

1. First Opening on Factory Default Code

Step 1 Press 'C' button
Step 2 Press factory code ' 1 2 3 4 5 6'
Step 3 Press '#' button, a melodic tone will sound and the display confirms
OPEnd
Step 4 Turn Knob or Handle clockwise and open the door while the tone is
sounding
Caution
If an incorrect code is entered, Error will appear in the display panel and a
short warning tone will sound.
If an incorrect code is entered five times the lock will cease to operate for
five minutes, a warning tone will sound and the display will indicate dELAY
C 1 2 3 4

2. Setting a New Personal Code.

It is advisable to set a new code with the door open and test the new
code before closing the door.
Step 1 Press '#' button
Step 2 Enter the Present Code.
Step 3 Press '#' button.
Step 4 Enter New 4~16 digit Code.
Step 5 Press '# button.
For Example:
If the present code is 1 2 3 4 5 6 and a new four digit code is decided as
4 2 4 2 press buttons as below.
# 1 2 3 4 5 6 # 4 2 4 2 #
EnTErd will be indicated in the display and a short 3 second tone will sound
to confirm the change to 4 2 4 2
#
Present Code
Advanced Phoenix Digital Lock R3
LED
Battery Position
# Button
under Keypad
5 6 #
# #
New Code

Opening Battery Compartment

Upper Lower
part part
1. Remove keypad
retaining screw
2. Press the keypad opening mark, to release the
retaining arm and swing the keypad up and left,
to open.
3. Setting the dual control function where two operators with
individual personal codes are required to open the lock.
With the door in the open position set the second code.
Step 1 Press the "M" memory button recessed into the back of the door.
Step 2 Press '2' button
Step 3 Press '#' button
Step 4 Enter 2nd Personal code
Step 5 Press '#' button
EnTErd will be indicated in the display and a short 3 second tone will sound,
to confirm the 2nd code entry.
For Example:
If the present code is 4 2 4 2 and a second new four digit code is decided
as 6 7 8 9 press buttons as below. EnTErd will appear in the display
accompanied by a short tone to confirm M 2 # 6 7 8 9 #
M 2 #

4. To Activate Dual Control

Step 1 Press the "M" memory button recessed into the back of the door.
Step 2 Press '9' button
Step 3 Press '#' button

5. To operate with the dual control function

Step 1 Press C button dual will appear in the display.
Step 2 Enter the first code 4 2 4 2
Step 3 Press '#' button. a short 3 second tone will sound to confirm correct
code
Step 4 Within 5 minutes enter the second code 6 7 8 9
Step 5 Press '# button. a short 3 second tone will sound to confirm correct
code and OPEnd will appear in the display and the lock will be open.
Either code can be entered first or second.
#
2nd Code
