Matco Tools DT8 Quick Start Manual

WARNING
Study, understand and follow all instructions provided with
this product. Read these instructions carefully before installing,
operating, servicing or repairing this tool. Keep these
instructions in a safe accessible place.
INTENDED USE OF THE TOOL
The DT8 Deluxe Digital Tire Inflator is designed to work with
the included locking and dual chucks to inflate, deflate and
measure pressure on truck and vehicle tires. Do not use this
tool outside of the designed intent. Never modify the tool for
any other purpose or use.
WARNING
Caution: To help prevent personal injury
• Use of this product can expose you to chemicals including
ethylene glycol, gasoline vapors and engine exhaust, which
are known to the State of California to cause cancer, birth
defects, or reproductive harm. For more information, visit
www.P65Warnings.ca.gov. Always wear ANSI approved safety
equipment, safety glasses and clothing when using this
product. Study, understand, and follow all instructions
provided with this product. Failure to read and follow all
warnings and operating instructions may result in damages
and serious injury or death.
• Always wear ANSI approved goggles when using this
product. (Users and by standers).
• Never use this tool for any application other than for which
it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
• Improper operation and/or maintenance of the tool,
modification of the tool, or use of the tool with accessories
not designed for it could result in serious injury or death.
• Always select the correct accessories of the correct size and
design for the job that you are attempting to perform.
• Always work in a clean, safe, well-lit, organized and
adequately equipped area.
• Do not begin repairs without assurance that vehicle is in
secure position, and will not move during repair.
Includes
2 AAA batteries
DO NOT DISCARD – GIVE TO USER

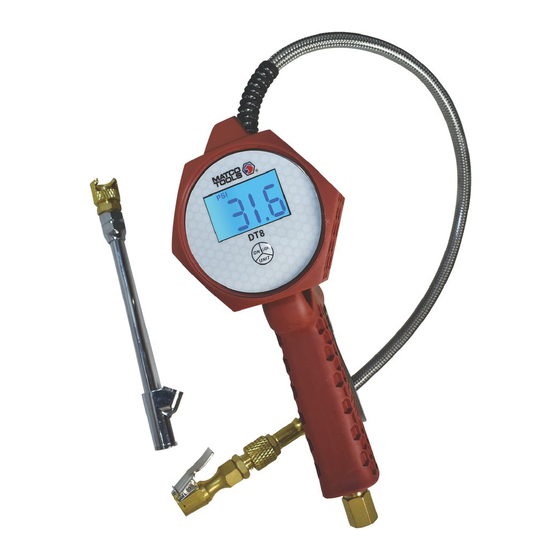

DELUXE DIGITAL TIRE INFLATOR
The manufacturer warrants this product to the original user
against defective material or workmanship for a period of 1
year from the date of purchase.
The manufacturer reserves the right to determine whether
the part or parts failed because of defective material,
workmanship or other causes. Failures caused by accident,
alteration, or misuse are not covered by this warranty.
The manufacturer, at its discretion, will repair or replace
product covered under this warranty free of charge. Repairs
or replacements of products covered under this warranty are
warranted for the remainder of the original warranty period.
The manufacturer or its authorized service representatives
must perform all warranty repairs. Any repair to the product
by unauthorized service representatives voids this warranty.
The rights under this warranty are limited to the original user
and may not be transferred to subsequent owners.
The warranty is in lieu of all other warranties, expressed or
implied, including warranties of merchantability and fitness
for a particular purpose. Some states do not allow the
exclusion or limitations of incidental or consequential
damages, so the above limitations may not apply to you.
When unpacking, check the parts diagram and part number
listing on page 10 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.
PRODUCT INFORMATION:
Top of the line design. Coated anti-fray hose and exclusive
quick change chuck design to easily switch between included
locking and dual chuck styles.
More accurate than ever. 0.1psi resolution and +/-1.0psi
accuracy for difficult TPMS systems.
Simple AAA battery design. Just pull the battery tab and go
for up to 560 hours of use. Two AAA batteries included.
Displays KGF, PSI or BAR measurement.
Large LCD digital read-out with new longer 10 second backlit
face.
Two position lever. 1st position deflates, 2nd position inflates.
Works on with nitrogen systems and CO
FUNCTION KEY:
ON/UNIT/LIGHT:
TWIST/THREAD LOCKING CHUCK ONTO VALVE STEM TO FULLY SEAL
Specifications:
Measuring Range:
Units:
Resolution:
Accuracy:
Working Temperature:
Power:
Made in China
Battery Lifetime:
to Matco specifications
Page 1
1 YEAR LIMITED WARRANTY
BEFORE USE
Press once to turn on. Press again to turn on backlight.
When the unit is on, press for 3 seconds to switch units.
If display is inaccurate, unreadable or will not change, press
and hold the button for 8 seconds to restart.
3 - 175psi
PSI / BAR / KPA / KGF
0.1psi
+/- 1.0 PSI
32°F - 104°F ( = 0°C - 40°C)
AAA battery
560 hours
DT8
2
.
1810323-14
