JRDAB-04
DAB/DAB+ Radio
Table of Contents
1. Basic functions ...............................................................................
2. Turning on the DAB radio screen ...................................................
3. Station list .......................................................................................
4. Memorizing the station list (adding to favorites) .............................
5. Extended information .....................................................................
6. Favorite list .....................................................................................
7. Choice of service ............................................................................
8. DAB options ...................................................................................
9. Operation from the steering wheel .................................................
10. Firmware update and station "logo" images database ...................
JuNa
PPHU
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
User manual
Manufacturer
Audi
2
2
3
3
4
4
5
6
7
7
Advertisement
Table of Contents
Related Manuals for Juna JRDAB-04
Summary of Contents for Juna JRDAB-04

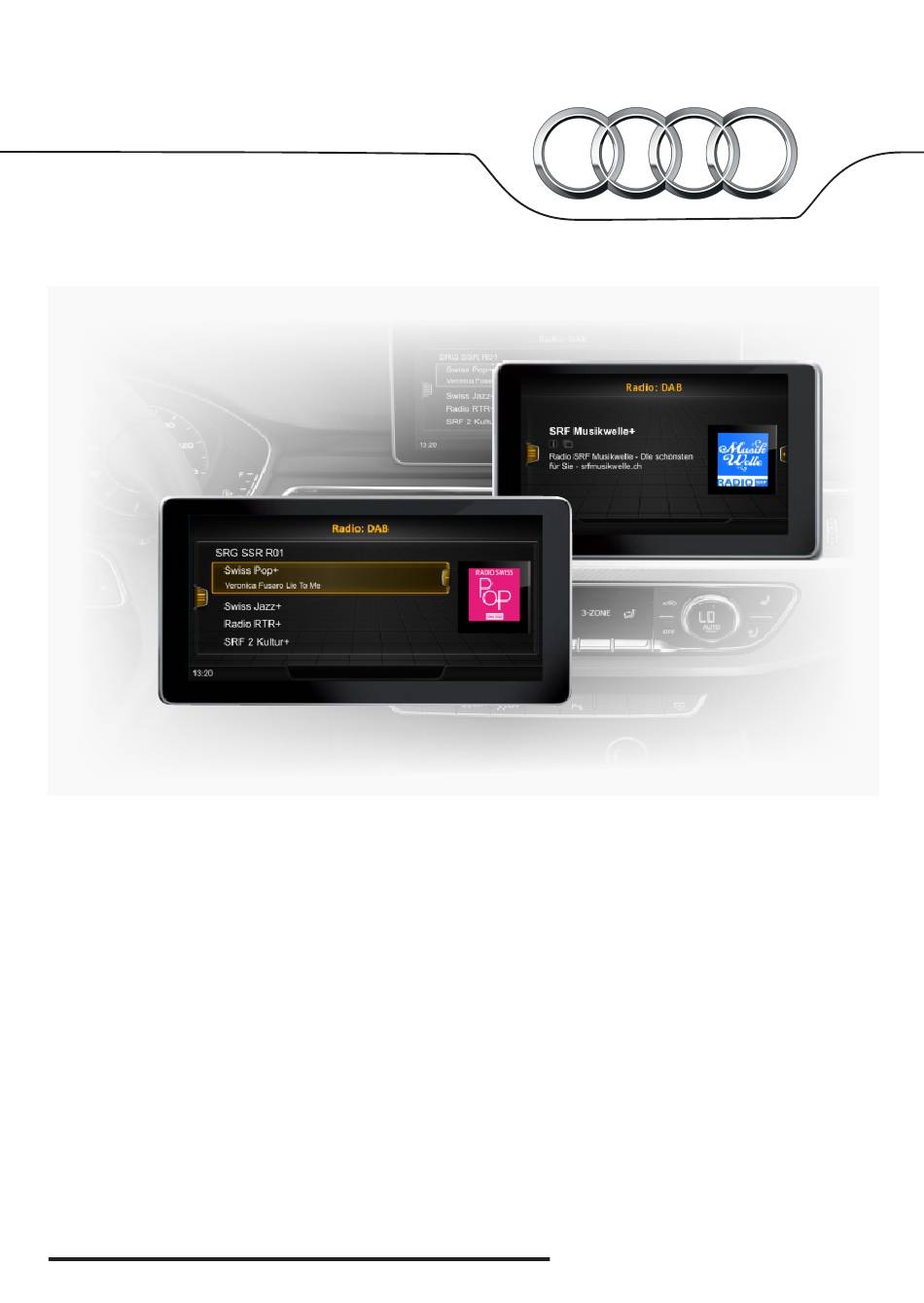

- Page 1 Audi JRDAB-04 DAB/DAB+ Radio User manual Table of Contents 1. Basic functions ................2. Turning on the DAB radio screen ........... 3. Station list ..................4. Memorizing the station list (adding to favorites) ......5. Extended information ..............6. Favorite list ..................
- Page 2 1. Basic functions • Support for DAB and DAB + standards • Automatic background scan and search for radio stations • Dual DAB / DAB + tuner • Support directly from the panel of factory MIB / MIB2 MQB units •...
- Page 3 3. Station list a) Information symbols on the DAB screen The radio station is a DAB radio station Radio station contains graphic information (slide show) The radio station contains text information DAB signal is not available Move the desired DAB station Delete the selected DAB station 3.
- Page 4 5. Extended information 3. Window - extended station name radio text information (DLS, DL +) graphic information about the selected station - logo or slideshow Pic. 5 a) In the "extended information" window, only currently selected radio station informations are display To make the window visible, it must be activated in: "DAB-options"...
- Page 5 PRESS 2 sek. Change of order station in the list favorites Pic. 6 To change the position of a station on the favorites list, press and hold the knob on the control panel until the symbol ( ) appears. Then select the new position using the knob and confirm it by prssing the knob Pic 6. The function of changing the position of stations in the favorites list can also be performed in the window ”DAB options"...
- Page 6 8. DAB options 7. DAB options Pic. 9 ■ Radio text - text information broadcast by the station currently being received. ■ Program sorting - how to display the station list. A-Z - alphabetical sort. Groups - divided in groups by the content of the multiplexes. ■...
- Page 7 10. Firmware update and station "logo" image database The JRDAB-04 receiver has the function of displaying the logo assigned to the saved ones radio stations. The receiver can automatically select the appropriate picture for the station saved in the favorites list in the main window. Station logotype databaseis located on a pendrive connected to the JRDAB-04 module or in memory internal JRDAB-04 module (depending on the module version).
