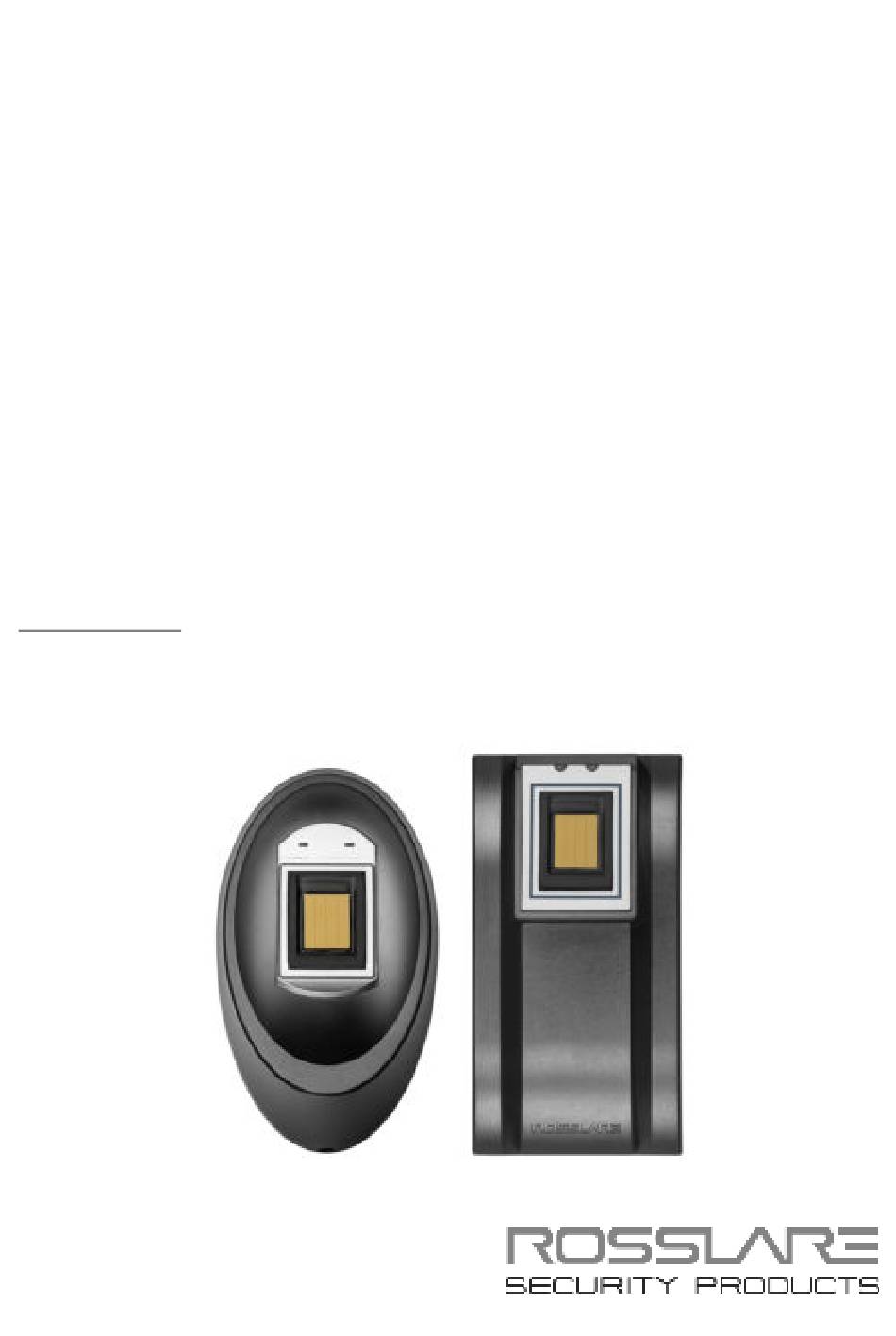

  • Page 1 AY-Bx660 Family Full Fingerprint Match-on-Card Readers Installation Manual Models: AY-B1660 AY-B2660 AY-B1660 AY-B2660...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents Introduction ..............7 Features.................. 7 Technical Specifications ..........8 Installation ..............10 Mounting Instructions ............10 Wiring Instructions ..............12 Configuring the Reader ..........14 Configuration Procedure ............14 Testing the Reader ............ 16 Modes of Operation ..........
  • Page 4 List of Figures List of Figures Figure 1: AY-B1660 – Mounting Dimensions ........... 10 Figure 2: AY-B2660 – Mounting Dimensions ........... 11 Figure 3: Removing the Top Cover ..............12 AY-Bx660 Family Installation Manual...
  • Page 5 List of Tables List of Tables Table 1: Wiring the Reader to the Controller ........... 13 AY-Bx660 Family Installation Manual...
  • Page 6  ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
  • Page 7: Introduction

    The AY-Bx660 series of readers use a full finger capacitive type biometric sensor to check for verification between fingerprint data and a biometric template stored in the MIFARE card. When...
  • Page 8: Technical Specifications

    Technical Specifications Technical Specifications General Characteristics • Wiegand 26-Bit (default) Output Formats • Wiegand 26-Bit with Facility Code • Wiegand 32-Bit Reversed • Clock & Data • Wiegand 32-Bit • Wiegand 34-Bit • Wiegand 40-Bit 4 cm (1.6 in.) Read Range (max) Electrical Characteristics Power Supply Type Linear type (recommended)
  • Page 9 Technical Specifications Physical Characteristics AY-B1660: 100 x 54 x 42 mm Dimensions (H x W x D) (3.94 x 2.13 x 1.65 in.) AY-B2660: 102 x 54 x 32 mm (4.02 x 2.13 x 1.26 in.) AY-B1660: 79 g (2.79 oz) Weight AY-B2660: 156 g (5.50 oz) AY-Bx660 Family Installation Manual...
  • Page 10: Installation

    Installation Installation Mounting Instructions Prior to starting, select the location where the reader unit is to be mounted. Use the supplied drilling template to assist in locating and drilling the appropriate holes (Figure 1 and Figure 2). Figure 1: AY-B1660 – Mounting Dimensions AY-Bx660 Family Installation Manual...
  • Page 11 Installation Figure 2: AY-B2660 – Mounting Dimensions Be sure to protect the fingerprint sensor when the reader is mounted outside. To mount the reader: 1. Determine an approximate surface location for the reader. 2. Peel off the back of the self-adhesive mounting label template and place it on the required mounting location.
  • Page 12: Wiring Instructions

    Installation 7. Carefully remove the snap-off front cover of the reader to reveal two screw holes. Figure 3: Removing the Top Cover AY-B1660 AY-B2660 8. Route the interface cable from the reader to the controller (see Section 3.2). The reader can also be mounted using strong epoxy glue. After application, firmly hold the reader in place until the glue dries.
  • Page 13 Installation Table 1: Wiring the Reader to the Controller Color Wiring Black/ Shield Ground Green Data 0 White Data 1 Brown LED control Orange Buzzer control Purple Tamper 4. If the tamper output is being utilized, connect the purple wire to the correct input on the controller.
  • Page 14: Configuring The Reader

    Configuring the Reader Configuring the Reader To provide the highest level of security, the reader is programmed to validate only MIFARE cards whose settings correspond to the Master card that is used to configure the reader. Then, a configuration card is used to configure the following settings: ...
  • Page 15 Configuring the Reader If the configuration is not valid, an error beep is generated. If the reader is being configured for the first time, the reader will not work until a successful configuration is performed. If the reader is already in use, then following a failed configuration, the reader returns to Standby mode and continues to work with its previous configuration settings.
  • Page 16: Testing The Reader

    Testing the Reader Testing the Reader After wiring the reader to the controller and to a power supply, test the reader. To test the reader: 1. Power up the reader. Three long beeps are generated and both LEDs flash red simultaneously for 3 seconds.
  • Page 17: Modes Of Operation

    Modes of Operation Modes of Operation The AY-Bx660 readers have the following modes of operation:  Boot Mode (reset)  Configuration Mode  Standby Mode  Read Mode  Lockout Mode  Fingerprint Matching Override Mode  Duress Mode Boot Mode The reader enters Boot mode upon power up or upon restoration of power after a power failure where the loader runs separately from the main application.
  • Page 18: Standby Mode

    Modes of Operation Standby Mode The reader enters Standby mode:  After the Boot (reset) and Configuration modes  After the Lockout mode period  After a successful card or fingerprint read During Standby mode, the left red LED remains lit to indicate Standby mode and the reader is ready for normal use.
  • Page 19: Invalid Card/Fingerprint Read

    If there are fewer than the pre-configured number of invalid card/fingerprint reads within 30 seconds, the reader enters Standby mode. When connected and operating with Rosslare’s controllers and the AxTrax software, the readers send specific messages when failures occur. Those messages appear and can be handled on the AxTrax software: •...
  • Page 20: Lockout Mode

    Modes of Operation Lockout Mode The reader enters Lockout mode when there are a number of invalid card and/or finger reads within a 30-second period. During Lockout mode, the two LEDs flash red simultaneously for one minute. After one minute, the reader enters Standby mode. The default number of invalid reads before the reader enters Lockout mode is 5.
  • Page 21: Limited Warranty

    The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-Bx660 Family Installation Manual...
  • Page 22 Canada Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 sales.in@rosslaresecurity.com Europe Rosslare Israel Ltd.
