- Page 1 AURES MULTI INSTANTANEOUS ELECTRIC WATER HEATER INSTALLATION & OPERATION MANUAL...
-
Page 2: General Safety Instruction
GENERAL SAFETY INSTRUCTION 1. This manual is an integral part of the product. Keep it with in a safe place, and hand it on to the next user/owner in case of change of property. 2. Read the instructions and warnings in this manual carefully, they contain important informa- tion regarding safe installation, use and maintenance. -
Page 3: General Safety Standards
Symbol Meaning Failure to observe this warning can result in injury, which may even be fatal in certain circumstances Failure to observe this warning can msult in damage or injury, even to property; plants and animals Observe the product's general and specific safety instructions. GENERAL SAFETY STANDARDS Symbol Ref. -
Page 4: Technical Characteristics
TECHNICAL CHARACTERISTICS For the technical specifications, refer to the nameplate (the nameplate is located on the right side of the water heater). PRODUCT INFORMATION Model M 9.5 240V EU AURES Power (kW) Voltage (V) Phases Mono Installation Multi point Construction Close outlet Frequency (Hz) 50/60... -
Page 5: Installation Instructions

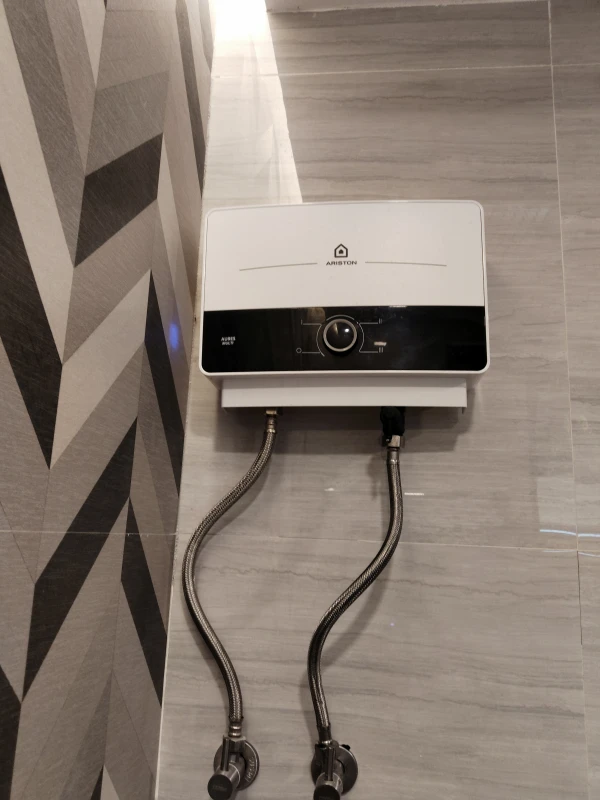

Installation Instructions: The appliance must be installed and commissioned by a competent person in accordance with established regulations and local health and safety regulations. Before performing any operations, disconnect the electricity using the external switch Open the two screws located at the bottom of the device and remove the cover from base. Fix the base horizontally against a wall or side of cabinet, the inlet and outlet water pipes are on the down/bottom side of the unit. -
Page 6: Installation Requirements
OPERATING INSTRUCTIONS Your new Instant Water Heater is flow activated. Regulate the knob in one of the 3 setting power (I, II, III) the product will switch ON once the hot water tap is turned on, the heating element will work and warm the water only when there is a flow of water through the appliance.. - Page 7 Table 1: Recommended cable kW Loaded Recommended Recommended Power Heating setting Cable Fuse Rating 220V 230V 240V 4.7+4.8 kW H05VV-F 3x6mm² * AURES M 9.5 240V EU • Operating water pressure 50-800 kPa (0.5-8 bar) • Water pressure operating power switch •...
-
Page 8: Troubleshooting
Troubleshooting SYMPTOM POSSIBLE CAUSE SOLUTION Water not hot Too much water flowing through Reduce the flow rate of the water via the enough the heater outlet tap. Reduction In the ambient Switch to higher temperature setting. temperature Check if the mains stop valve is fully open Water Pressure below of 100 kPa and that the there are no other restriction in the supply line. - Page 9 ELECTRICAL WIRING...
-
Page 10: Product Sizes
Product sizes Optional cable entry Top-left cable inlet is for cable until 10 mm Optional top-right cable entry is only for power cable size: 6 mm... - Page 11 Close cover Steps Close cover Steps...
- Page 12 Manufactured by: Ariston Thermo S.p.A. Viale Aristide Merloni, 45 60044 Fabriano (AN) Tel. (+39) 0732.6011 ariston.com Commercialised in UK by: Ariston Thermo UK 3 Juniper West Basildon SS15 6SJ www.ariston.com/uk e-mail: info.uk@aristonthermo.com Customer Service: 0333 240 8777 Technical Advice: 0333 240 7777...
