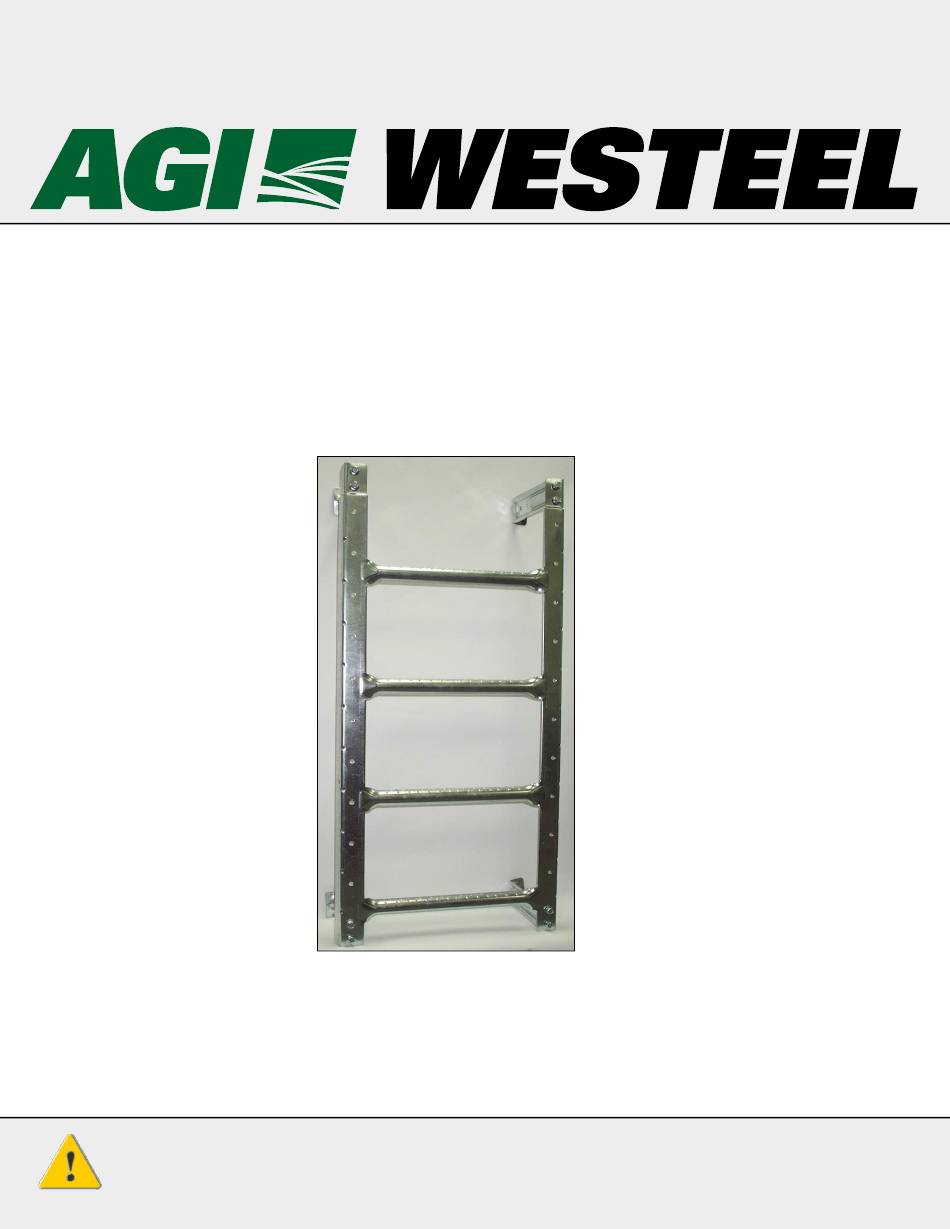

Hopper Ladder Make-Up Packages
Wide-Corr® Grain Bin
Installation and Storage Instructions
INSTALLATION AND STORAGE INSTRUCTIONS
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
WIDE CORR LADDER
READ INSTRUCTIONS CAREFULLY AND COMPLETELY
BEFORE BEGINNING FOUNDATION OR ASSEMBLY
EFFECTIVE DATE: January, 2016
Part Number: 198925
Revision: 20
Revision: 4
Part Number: 198935 R17
Revised: February 2022
Original Instructions
