Omnisense Systems USA Inc
1881 West State Road 84, Bldg. 1 Unit 102
Fort Lauderdale, Florida, 33315, United States
T: +1 (954) 316-6230
E: enquiries@omnisense-systems.com
omnisense-systems.com
IMPORTANT: The Quick Start Guide is part of the complete documentation for your thermal
camera. Please visit Omnisense Systems website to download the complete and latest user
guide for your product.

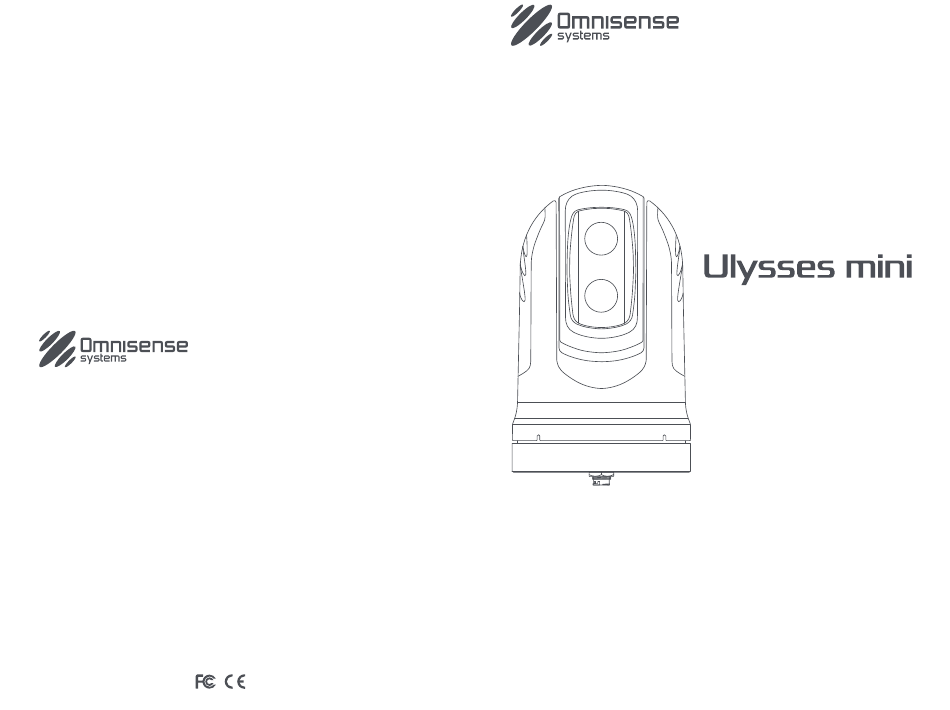

Compact dual payload marine
thermal camera
Quick Start Guide
Part No: Part No: ULS-N640S & ULS-N640W
Ver 2.0
Advertisement
Table of Contents
Related Manuals for Omnisense Systems Ulysses mini
Summary of Contents for Omnisense Systems Ulysses mini
- Page 1 Part No: Part No: ULS-N640S & ULS-N640W Ver 2.0 IMPORTANT: The Quick Start Guide is part of the complete documentation for your thermal camera. Please visit Omnisense Systems website to download the complete and latest user guide for your product. omnisense-systems.com...
- Page 2 Using the Mounting Template decal provided, mark and drill all the holes required for Camera Turret installation at the selected location. This is the layout plan of how your Ulysses Mini thermal camera system will be set-up. Prepare the camera for installation by installing the provided 4 x m6 studs into the base of the camera.
- Page 3 Change IP Settings Mounting the Joystick Controller If you are unable to connect to the camera due to the a di erent set of IP address, Identify the desired location of the Joystick Controller. follow this step to configure the camera for Windows user. Use the supplied mounting template decal and create the necessary openings as indicated on the template.
- Page 4 Connecting to your Display via Ethernet (Options) 5. NMEA You can choose to display the video output of your Ulysses Mini to a supported MFD via IP (ethernet) or via HDMI to a Touchscreen monitor/MFD. We recommend using Junction Box...
