Repairs
6.5

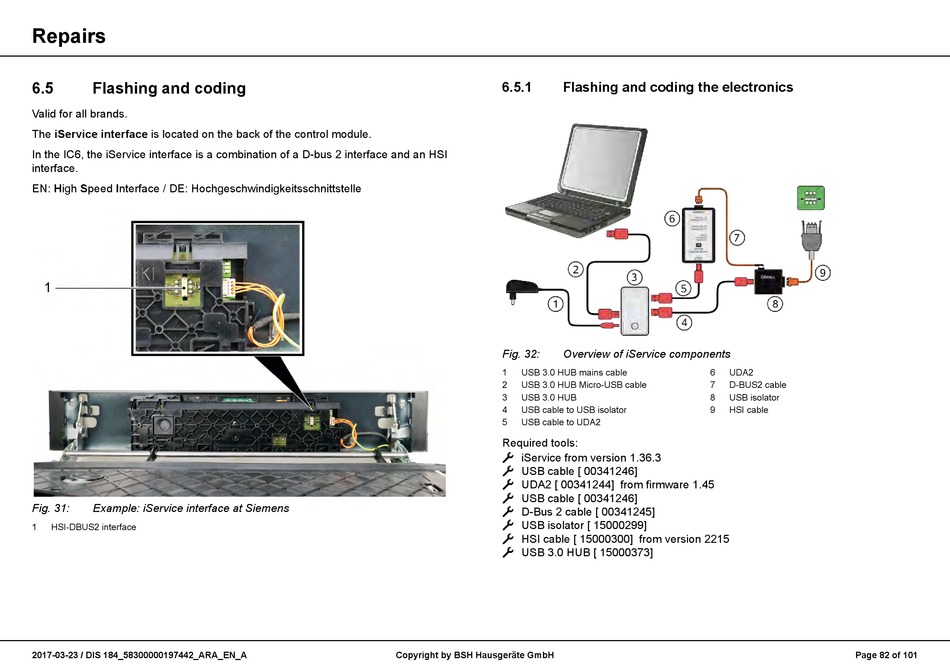

Flashing and coding

Valid for all brands.
The iService interface is located on the back of the control module.
In the IC6, the iService interface is a combination of a D-bus 2 interface and an HSI
interface.
EN: High Speed Interface / DE: Hochgeschwindigkeitsschnittstelle
Fig. 31: Example: iService interface at Siemens
1 HSI-DBUS2 interface
2017-03-23 / DIS 184_58300000197442_ARA_EN_A
6.5.1 Flashing and coding the electronics
Fig. 32: Overview of iService components
1 USB 3.0 HUB mains cable
2 USB 3.0 HUB Micro-USB cable
3 USB 3.0 HUB
4 USB cable to USB isolator
5 USB cable to UDA2
Required tools:
? iService from version 1.36.3
? USB cable [ 00341246]
? UDA2 [ 00341244] from firmware 1.45
? USB cable [ 00341246]
? D-Bus 2 cable [ 00341245]
? USB isolator [ 15000299]
? HSI cable [ 15000300] from version 2215
? USB 3.0 HUB [ 15000373]
Copyright by BSH Hausgeräte GmbH
6 UDA2
7 D-BUS2 cable
8 USB isolator
9 HSI cable
