Prior to Using This Document: Videology reserves the right to modify the information in this
document as necessary and without notice. It is the user's responsibility to be certain they possess the
most recent version of this document by going to www.videologyinc.com, searching for the model
number, and comparing revision letters on the respective document, located in the document's footer.
For technical assistance with this product, please contact the supplier from whom the product was
purchased.
Videology® Imaging Solutions, Inc.
37M Lark Industrial Parkway
Greenville, Rhode Island 02828 USA
Tel: (401) 949 – 5332 Fax: (401) 949 – 5276
North/South American Sales:
www.videologyinc.com
Doc # INS-45S10SL
Revision: A
IMAGING SOLUTIONS INC.
Original Equipment Manufacturer
Instruction Manual
45S10SL
sales@videologyinc.com
Videology® Imaging Solutions, Europe B.V.
NL-5405NH Uden, The Netherlands
Tel: +31 (0) 413 256261 Fax: +31 (0) 413 251712
European Sales:
Issue Date: 01/12/2012
Page 1 of 15
Neutronenlaan 4
info@videology.nl
www.videology.nl
Advertisement
Table of Contents
Related Manuals for Videology 45S10SL
Summary of Contents for Videology 45S10SL
- Page 1 Instruction Manual 45S10SL Prior to Using This Document: Videology reserves the right to modify the information in this document as necessary and without notice. It is the user’s responsibility to be certain they possess the most recent version of this document by going to www.videologyinc.com, searching for the model number, and comparing revision letters on the respective document, located in the document’s footer.
-
Page 2: Table Of Contents
10.7. Display ........................11 10.8. Image Optimize ......................12 10.9. Function ........................13 10.10. Exit ..........................13 Outline Dimension of LCD Panel ................... 14 Contact Information ......................15 Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 2 of 15... -
Page 3: Document History

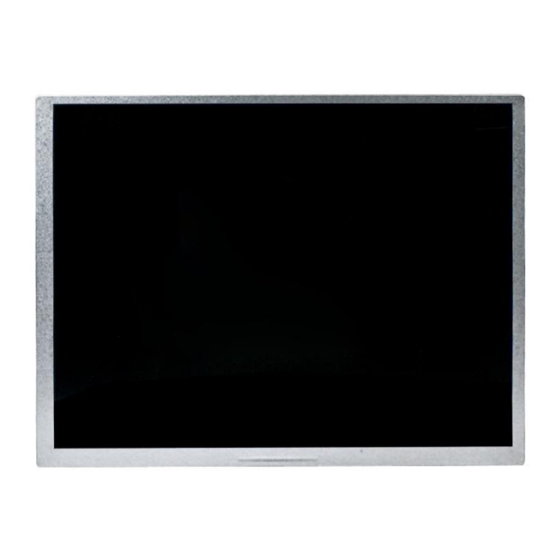

Rev A 01-12-12 Initial release 11-0120 2. Scope of Work This specification shall be applied to model: 45S10SL, 10.4” TFT sunlight readable LCD module with 3D comb filter, 3D De-interlace, and noise reduction. 3. Specifications Display 10.4” color TFT LCD... -
Page 4: Block Diagram
5. Block Diagram 6. Input Terminal Pin Assignment Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 4 of 15... -
Page 5: Inspection Standard
Number = 2 max, Average Diameter ≦ 0.5 mm Afterimage After displaying a pattern for 5 seconds then switch to a different pattern, the previous pattern should disappear within 10 seconds. Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 5 of 15... -
Page 6: Reference Drawings
8. Reference Drawings 8.1. Drive Board w/Input Connectors Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 6 of 15... -
Page 7: Led Backlight Board
Hot key selection for < Brightness/ Contrast/ 6. Power Backlight/ Sharpness/ Hue/ Color/ Volume > Push to turn on and turn off the unit. function OSD menu Power indicator Green: Power on Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 7 of 15... -
Page 8: Remote Control Operation
14. Position: PIP mode Press to select the position of sub-picture. (4 corners and center) 15. Sleep: Select the Automatic turn off time. Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 8 of 15... -
Page 9: Osd Function
Push <Menu> to confirm the selected item; use Select (▲▼) button to adjust and then push <Source> button to return. Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 9 of 15... -
Page 10: Sound
（ Use Select ） button to adjust the left / right balance. Balance ▼ （▲） （ Use Select ） button to select On/Off Speaker Enhance （▲） ▼ （ Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 10 of 15... -
Page 11: Pip
Push Menu to confirm the selected item , use Select (▲▼) button to adjust and then push <Source> button to return. (Mode：PC D-Sub) (Mode：AV、S-VIDEO,HD) Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 11 of 15... -
Page 12: Image Optimize
3 kinds of modes. Select (▲▼) button to select Low/ Medium/ High/ Off AV/S-video 4 kinds of modes. Auto Color Push <MENU> button to adjust the best image color. Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 12 of 15... -
Page 13: Function
Image Auto Move Off/30/60/90/120/180 Min. Reset Push <MENU> button to return to factory default setting. 10.10.Exit Push <MENU>to exit the OSD menu. Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 13 of 15... -
Page 14: Outline Dimension Of Lcd Panel
11. Outline Dimension of LCD Panel Doc # INS-45S10SL Issue Date: 01/12/2012 Revision: A Page 14 of 15... -
Page 15: Contact Information
Please visit our website at: http://www.videologyinc.com VIDEOLOGY IMAGING SOLUTIONS is an ISO 9001 registered video camera developer and manufacturer serving industrial, machine vision, biometric, security, and specialty OEM markets. Videology designs, develops, manufactures, and distributes video, image acquisition, and display technologies and products to OEMs worldwide.
