Creator C310+

1．Safety Precautions and Warnings ................... 2

2. Using the Scan Tool ............................... 4

2.1 Tool Description ............................... 4

2.2 Specifications ................................. 5

2.3 Accessories Include ............................ 5

2.4 Product Troubleshooting ........................ 6

3. Software Function ................................. 9

3.1 System Configuration .......................... 10

4. Diagnostics...................................... 12

4.1 Read Trouble Code ............................. 15

4.2 Erasing Codes ................................. 16

4.3 Read DataStream ............................... 17

4.4 Vehicle Information ........................... 19

5.Software update ................................... 21

BM Multi-system Scanner

INDEX

Table of Contents

Need help?

Do you have a question about the C310+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Creator C310+

Page 1: Table Of Contents
Creator C310+ BM Multi-system Scanner INDEX 1．Safety Precautions and Warnings ....2 2. Using the Scan Tool ....... 4 2.1 Tool Description ....... 4 2.2 Specifications ......... 5 2.3 Accessories Include ......5 2.4 Product Troubleshooting ......6 3. Software Function ......... 9 3.1 System Configuration ......
Page 2: 1．Safety Precautions And Warnings
Creator C310+ BM Multi-system Scanner 1．Safety Precautions and Warnings To prevent personal injury or damage to vehicles and/or the scan tool. Read this instruction manual first and observe the following safety precautions at a minimum whenever working on a vehicle.
Page 3 Creator C310+ BM Multi-system Scanner gasoline/chemical/electrical fires nearby. · Don’t connect or disconnect any test equipment while the ignition is on or the engine is running. · Keep the scan tool dry, clean, free from oil/water or grease. Use a mild detergent on a clean cloth to clean the outside of the scan tool, when necessary.
Page 4: Using The Scan Tool

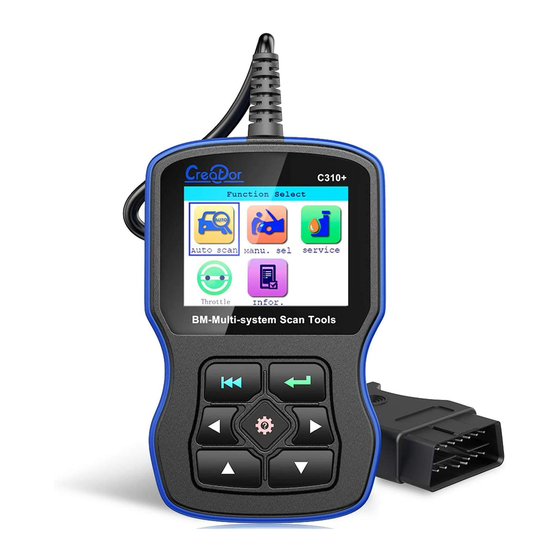

Creator C310+ BM Multi-system Scanner 2. Using the Scan Tool 2.1 Tool Description ① DLC -- Data Link Connector (DLC), Use to connect the scan tool to the vehicle; ② LCD DISPLAY -- Indicates test results. Color, 320 x 240 pixel display with contrast adjustment ③...
Page 5: Specifications
Creator C310+ BM Multi-system Scanner ④ USB PORT -- Use to connect the scan tool to 2.2 Specifications A) Display: Color, 320 x 240 pixel display with contrast adjustment B) Operation Temperature: -20 ℃ -- 75 ℃ C) Storage Temperature: -40 ℃ -- 120 ℃...
Page 6: Product Troubleshooting
Creator C310+ BM Multi-system Scanner 2.4 Product Troubleshooting Vehicle Linking Error If the scan tool has a communication error ； Cannot communicate with the ECU of the vehicle (Engine Control Unit). You need to check the following: 1) Confirm that the ignition is ON;...
Page 7 Creator C310+ BM Multi-system Scanner 3) Confirm that the vehicle is OBD2 compliant; 4) Turn the ignition off and wait for about 10 Seconds; 5) Turn on the engine again and continue testing; 6) confirm that the control module was not damaged;...
Page 8: Software Function
Creator C310+ BM Multi-system Scanner 3. Software Function CATION: Don’t connect or disconnect any test equipment with ignition on or engine running. 1) Turn the ignition off. 2) Locate the vehicle’s 16-pin Data Link Connector (DLC) 3) Plug into the scan tool cable connector to the vehicle's DLC ，the scan tool will be light.
Page 9: System Configuration
Creator C310+ BM Multi-system Scanner USE the key [ ] to select in the [Main Menu] , and press [ ] to selection 3.1 System Configuration Select [SYSTEM CONFIGUARATION] in the Main Menu and press ]. The screen will display the interface as shown...
Page 10 Creator C310+ BM Multi-system Scanner 1) [SYSTEM INFORMATION]: show the system information Choose [SYSTEM INFORMATION] and press [ The screen will display the interface as shown below: Press [ ] or [ ] to return the [Main menu] 2) [BEEPER]: ON / OFF the beep.
Page 11: Diagnostics
Creator C310+ BM Multi-system Scanner 4. Diagnostics Select ［Automatically search］: When choosing “ Automatically search”, the scanner will establish communication with the vehicle automatically and display all the system Select [Manually Select] in Main Menu and press [ The screen will display the interface as shown below:...
Page 12 Creator C310+ BM Multi-system Scanner Press [ ] to select, [ ] and [ ] to Page, and press ] to confirm. Select the Chassis of the vehicle, and press [ The screen will display the interface as shown below:...
Page 13 Creator C310+ BM Multi-system Scanner Select the model of the vehicle, and press [ The screen will display the interface as shown below: Press [ ] to select, [ ] and [ ] to Page, and press ] to confirm.
Page 14 Creator C310+ BM Multi-system Scanner ◆ if the scan tool communicate with the vehicle, it will enter the [function menu], the screen will display the interface as shown below: Press [ ] to select, [ ] and [ ] to Page, and press...
Page 15: Read Trouble Code
Creator C310+ BM Multi-system Scanner 4.1 Read Trouble Code ◆Reading Codes can be done with the key on engine off (KOEO) or with the key on engine running (KOER). ◆Trouble codes cause the control module to illuminate the malfunction indicator lamp (MIL) when emission-related fault occurs.
Page 16 Creator C310+ BM Multi-system Scanner ◆ If there are no Diagnostic Trouble Codes , the display indicates “No Trouble Code”,please wait a few seconds or press any OK to return to Diagnostic Menu. right hand corner of the display. 4.2 Clear Trouble Code 1）The scan tool can clear the fault code stored...
Page 17: Read Datastream
Creator C310+ BM Multi-system Scanner detection and record the fault codes ◆ After clearing, you should turn ignition on and detection fault codes again. If there are still some fault codes , please find out the cause of the fault code first, and then solve the problem.
Page 18: Vehicle Information
Creator C310+ BM Multi-system Scanner Press [ ] to return data model. Press to return [DIAGNOSTIC MENU]. 4.4 Vehicle Information This function can view the vehicle ECU information. Include: Software version, hardware version, diagnostic index, Date, part number Etc. but it does not support some system.
Page 19 Creator C310+ BM Multi-system Scanner Press [ ] to return data model. Press to return [DIAGNOSTIC MENU].
Page 20: Software Update
Creator C310+ BM Multi-system Scanner 5．Software update 1. Setup Update tools Put the CD in to PC and open. you can see the setup file in the CD. Double click the [Setup file] to setup the tool. Operate follow the instructions , and finish to setup.
Page 21 Creator C310+ BM Multi-system Scanner After finish setup , there is a icon of [Creator] in desktop. 2. Download upgrade software...
Page 22 Creator C310+ BM Multi-system Scanner 1)Enter the Creator website : http://www.szcreator.com/ 2)Select the correct software like C110+/C310+ , click on the download option for your product and unzip it , then you will get a Bin file. 3)Set up the software in your computer.
Page 23 Creator C310+ BM Multi-system Scanner 3. Run the update tool Double click the update tool icon and Run the update tool and Operate in accordance with photograph. 1) Used the USB cable connected to C310+ scanner and PC 2) Run the update software.
Page 24 Creator C310+ BM Multi-system Scanner 1) Click [Update] button. it will show the Select window...
Page 25 Creator C310+ BM Multi-system Scanner 2) Click [ ] and change the path to find the update file (HONDA_CREATOR_XXXXXX.BIN) 3) Select update file and click [open] button. 4) Into the upgrade interface, wait for the end of upgrade WARNNING: Do not power off during upgrade!
Page 26 Creator C310+ BM Multi-system Scanner 4. Start Update Waiting for a few minutes. The software will update the scanner tool. Finish Update When the update is finished , the screen on PC will show as below.
Page 27 Creator C310+ BM Multi-system Scanner If update success, the software will display [Update success!]; if update not success, it will display [Update fail! Try again]. Press [finish] , the scanner is already updated ,and you can unplug the scanner from PC.
