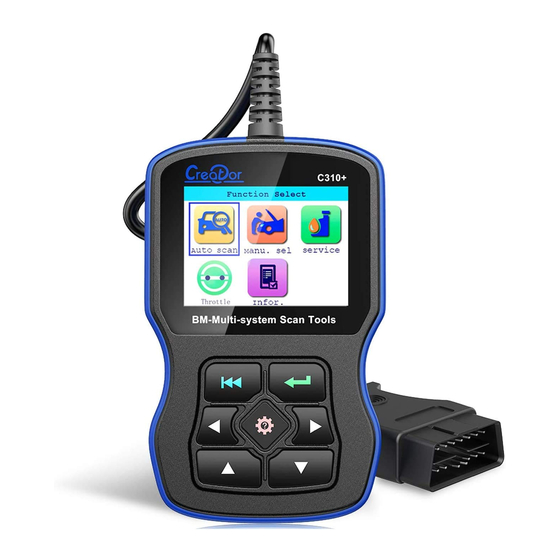

C r e a t o r C 3 1 0 +
1．Safety Precautions and Warnings................... 2
2. Using the Scan Tool............................... 4
2.1 Tool Description ............................... 4
2.2 Specifications ................................. 5
2.3 Accessories Include ............................ 5
2.4 Product Troubleshooting ........................ 7
3. Software Function................................. 8
3.1 System Configuration ........................... 9
4. Diagnostics...................................... 11
4.1 Read Trouble Code ............................. 14
4.2 Erasing Codes ................................. 16
4.3 Read DataStream ............................... 17
4.4 Vehicle Information ........................... 18
5．Software update.................................. 20
B M M u l t i - s y s t e m S c a n n e r
INDEX
1
Advertisement
Table of Contents
Related Manuals for Creator C310+
Summary of Contents for Creator C310+
-
Page 1: Table Of Contents
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r INDEX 1．Safety Precautions and Warnings....2 2. Using the Scan Tool....... 4 2.1 Tool Description ....... -
Page 2: 1．Safety Precautions And Warnings
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 1．Safety Precautions and Warnings To prevent personal injury or damage to vehicles and/or the scan tool. - Page 3 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r gasoline/chemical/electrical fires nearby. · Don’t connect or disconnect any test equipment while the ignition is on or the engine is running.
-
Page 4: Using The Scan Tool
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 2. Using the Scan Tool 2.1 Tool Description ①... -
Page 5: Specifications
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 320 x 240 pixel display with contrast adjustment ③... - Page 6 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r C) CD – save the update tool and user’s manual. D) Optional accessories OBD-16 to BMW-20 Socket –...
-
Page 7: Product Troubleshooting
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 2.4 Product Troubleshooting Vehicle Linking Error A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit). -
Page 8: Software Function
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 3. Software Function CATION: Don’t connect or disconnect any test equipment with ignition on or engine running. -
Page 9: System Configuration
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r USE the key [ ] to select in the [Main Menu] , and press [ ] to selection 3.1 System Configuration... - Page 10 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 1) [SYSTEM INFORMATION]: show the system information Choose [SYSTEM INFORMATION] and press [ The screen will display the interface as shown below: Press [...
-
Page 11: Diagnostics
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 4. Diagnostics Select [DIAGNOSE] in Main Menu and press [ The screen will display the interface as shown below: Press [ ] to select, [... - Page 12 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r Press [ ] to select, [ ] and [ ] to Page, and press ] to confirm.
- Page 13 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r Press [ ] to select, [ ] and [ ] to Page, and press ] to confirm.
-
Page 14: Read Trouble Code
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r if the scan tool communicate with the vehicle, it will enter the [function menu], the screen will display the interface as shown below: Press [... - Page 15 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r engine off (KOEO) or with the key on engine running (KOER).
-
Page 16: Erasing Codes
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 4.2 Erasing Codes CAUTION: Erasing the Diagnostic Trouble Codes may allow the scan tool to delete not only the codes from the vehicle’s on-board computer, This function is performed with key on engine... -
Page 17: Read Datastream
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 4.3 Read DataStream The Read DataStream function allows viewing of live or real time data of vehicle’s computer module(s). -
Page 18: Vehicle Information
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r Press [ ] to return data model. Press to return [DIAGNOSTIC MENU]. - Page 19 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r Press [ ] to return data model. Press to return [DIAGNOSTIC MENU].
-
Page 20: 5．Software Update
C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 5．Software update 1. Setup Update tools Put the CD in to PC and open. you can see the setup file in the CD. - Page 21 B M M u l t i - s y s t e m S c a n n e r Setup the software in your computer. After finish setup , there is a icon of [Creator] in desktop. 2. Run the update tool...
- Page 22 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 1) Used the USB cable connected to C100 scanner and PC 2) Run the update software.
- Page 23 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 1) Click [Update] button. it will show the Select window...
- Page 24 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 2) Click [ ] and change the path to find the update file (HONDA_CREATOR_XXXXXX.BIN) 3) Select update file and click [open] button.
- Page 25 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r 3. Start Update Waiting for a few minutes. The software will update the scanner tool.
- Page 26 C r e a t o r C 3 1 0 + B M M u l t i - s y s t e m S c a n n e r If update success, the software wil display [Update success!];...
