Description
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from

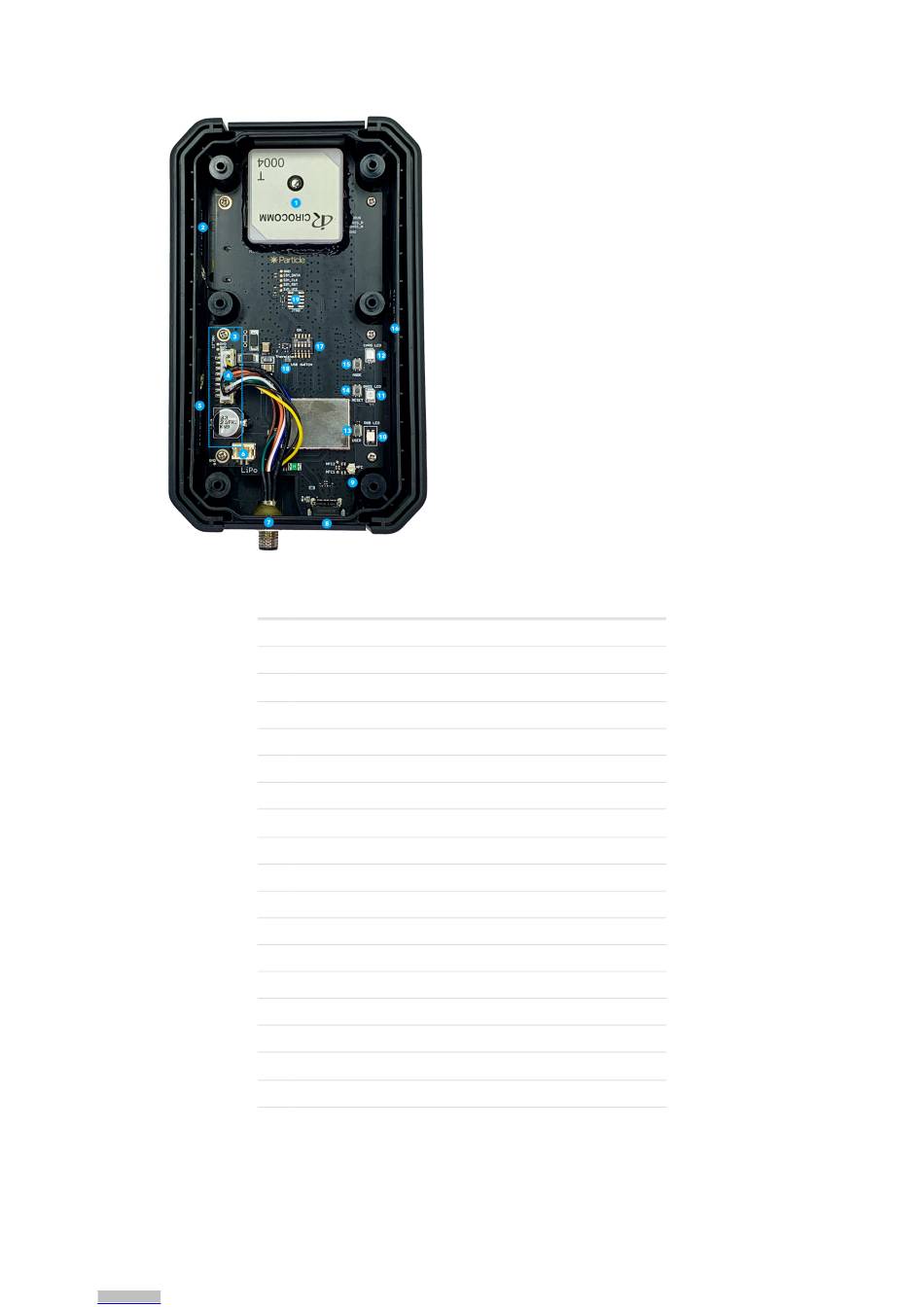

Num ID Description
1 GNSS Antenna
2 Wi-Fi Antenna (mounted on side of case)
3
NFC Antenna (mounted on lid)
4 Power and I/O connector (B8B-PH)
5 Wi-Fi Antenna (mounted on side of case)
6 LiPo Connector
7 M8 8-pin male connector (mounted on side of case)
2
8
USB-C
9 NFC connector (connects to NFC antenna on lid)
10 RGB Status LED
11 GNSS LED GNSS Status LED
12 CHRG LiPo charge status LED
13 USER User Button
14 RESET RESET Button
15 MODE MODE button
16 Cellular Antenna (mounted on side of case)
17 USB-C switch
18 Thermistor
19
JTAG connector (not populated)
1
3
4
