- Page 1 Priority Manufacturing EZ SPOT INFORMATION & OPERATING INSTRUCTIONS READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE OPERATING THE MACHINE...
-
Page 2: Table Of Contents
Exploded View & Parts List Normal Use Tools & Hoses Parts List Chemicals Warranty Tools & Accessories Troubleshooting Machine Specifications: Jon Don EZ SPOT 120V Pump 55 psi, oscillating Vacuum 2-stage, 85” lift, 88cfm Solution Tank Capacity 2.3 Gal Recovery Tank Capacity 2.5 Gal... - Page 3 CRITICAL SAFETY INFORMATION & CAUTIONS • To avoid electric shock, do not expose to rain or The acceptable use of this machine is for commercial/professional cleaning, for example, in snow and keep from extremes in temperature. hotels, schools, hospitals, and offices, rather than Store in a heated location.
-
Page 4: Your New Machine
NORMAL USE: providing a nice even spray pattern, order replacements. The EZ Spot is designed to clean small areas like furniture, area rugs, automobiles, and spots in The solution line and vacuum hose are made of carpets. These machines are not suited for cleaning durable and long-lasting components and, with the carpet in an entire room. -
Page 5: Views Of Machine

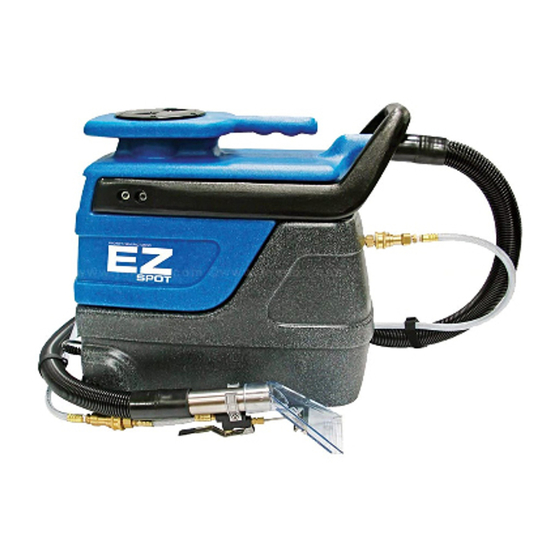

VIEWS OF MACHINE Handle Vac Hose Inlet Recovery Tank Latch Switches Solution Motor Tank Compartment Caster Solution Vac Inlet Fill Hole Filter Recovery Latch Tank Solution Hose Outlet Figure 1... -
Page 6: Set Up & Operating Instructions
SET-UP AND OPERATING INSTRUCTIONS: 1. Before each use, inspect the machine, 8. Pre-spray the area to be cleaned with a high hoses, and cleaning tool for cleanliness quality, non-foaming cleaner mixed to product and completeness, Ensure the spray specifications. NOTE: If foaming occurs, use a nozzles on the cleaning tool are tight. -
Page 7: Exploded View & Parts List
Item Item Part No. Description Part No. Description 05-30001 Tank, Recovery, Spotter Repair 41-00525 Hose, 9” 41-01309 Gasket, Top Float 41-00700 Hose Clamp, ¾” 41-01308 Gasket, Bottom Float 41-00526 Hose, Measure for Size 41-01307 Gasket, Float to Tank 41-00526 Hose, Measure for Size 05-30002 Float Assembly, Repair 35-00002... -
Page 8: Tools & Hoses Parts List
Item Item Part No. Description Part No. Description 05-10022-002 Smak UPH Wand w/ 10ft Hose Set 43-00026 Spray Tip 35-00007 Bracket, Spray Manifold 39-00030 4” Glide 32-00006 Nut, Spray Manifold Bracket 41-01321 Gasket, Glide 43-00020 Spray Manifold 90-00313 Screw, Glide Mounting 90-00235 Washer, Spray Manifold 41-01810... -
Page 9: Warranty
EZ SPOT WARANTY This limited warranty begins on the date of the customers purchase and is valid and available to the original purchaser only. 10-YEAR LIMITED HOUSING WARRANTY Manufacture warrants that all rotationally molded housing and tanks will be free from manufacturing defects, defects in workmanship, and defects in material for Ten (10) years from the date of original purchase, for the original purchaser only. -
Page 10: Troubleshooting
TROUBLESHOOTING ALWAYS UNPLUG THE MACHINE BEFORE DISCONNECTING OR CONNECTING ANY WIRES OR COMPONENTS SYMPTOM POSSIBLE CAUSE No spray Solution tank is empty; Solution hose is not completely connected to machine & tool; Spray tip on tool is plugged; Pump is not running; Pump inlet filter is dirty or plugged;...
