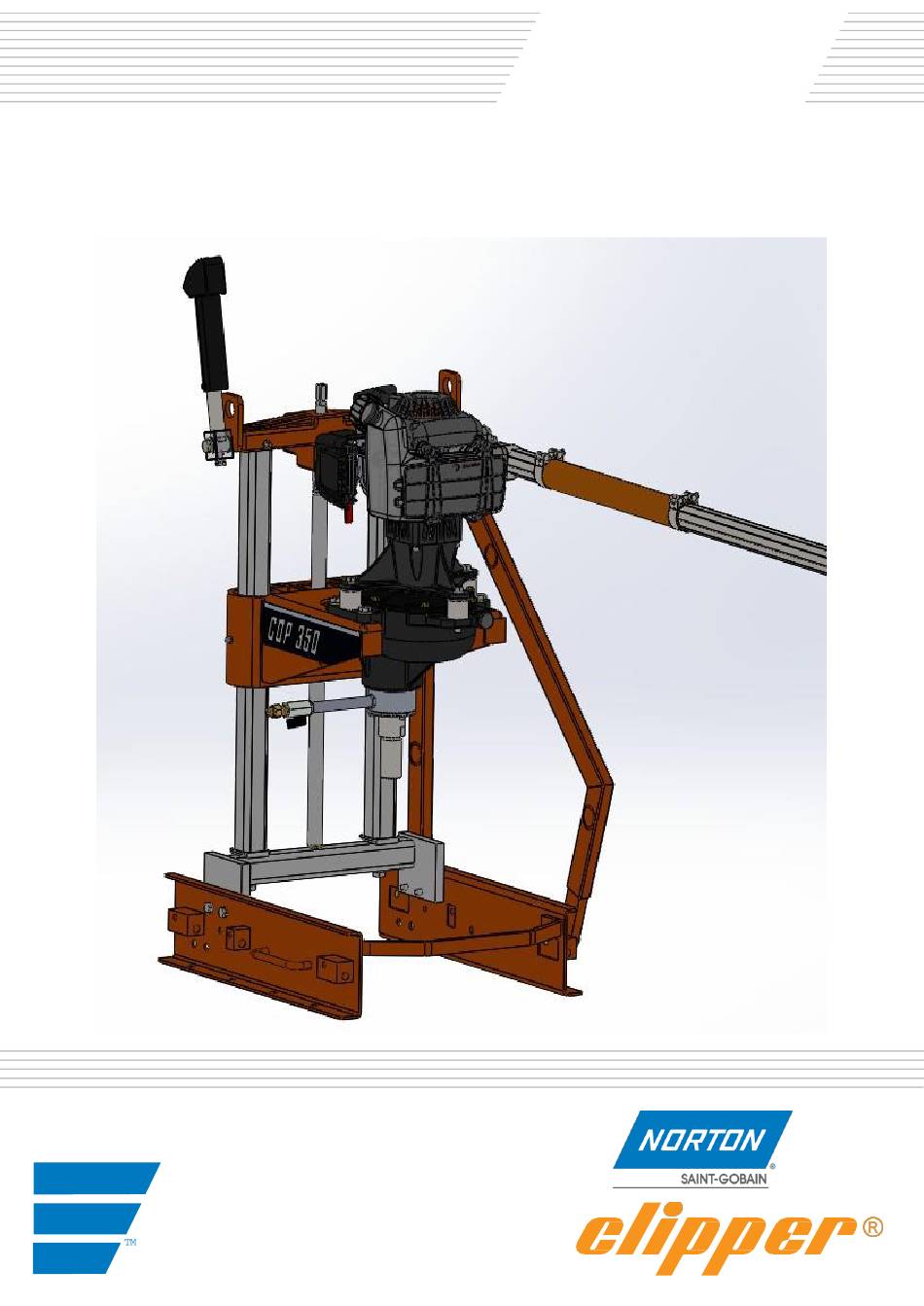

CDP 300 & 350 KP
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORTON CDP 300 and is the answer not in the manual?

Questions and answers

Related Manuals for SAINT-GOBAIN ABRASIVES NORTON CDP 300

Summary of Contents for SAINT-GOBAIN ABRASIVES NORTON CDP 300

  • Page 1 CDP 300 & 350 KP OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25...
  • Page 3 Valid for machines as of serial number: 1601XXXXXX Storage site for the technical documents: Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG This declaration of conformity loses its validity when the product is converted or modified without agreement.
  • Page 4 CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25...

  • Page 5: Table Of Contents

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Summary Safety instructions and work technique..................7 General information, equipment, clothing.................. 7 Rules at work, hazard notes......................8 Maintenance and repair......................... 8 Technical data and accessories....................9 Technical data of the machine....................9 Accessories delivered with the machine.
  • Page 6 CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25...

  • Page 7: Safety Instructions And Work Technique

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Preface We thank you for purchaising this CLIPPER-product. This operating manual is designed to familiarize the user with this drill motor, and to use its intended applications. Do not make any modifications, additions and alterations to the drill motor which could affect the safety without approval of the manufacturer (CE-Conformity expires)! The operating manual con- tains important information on how to operate the drill motor safely, properly and most efficiently.

  • Page 8: General Information, Equipment, Clothing

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 For this work proper equipment and clothing is required. The clothing should be appropriate and not be a hindrance. This includes among other things close-fitting clothing (no work coat), solid chrome leather gloves as well as shoes with a non-slipping sole and a steel-toe cap. For all work which could lead to head injuries due to falling objects a protective helmet is to be worn.Before you start the drill motor and before you start working with it check, each time, if it is functioning properly and if it is in a proper condition.

  • Page 9: Technical Data And Accessories

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Technical data and accessories Technical data of the machine CDP 350/300 Type Stroke (mm) Advance Manual Manual Annular adjustment until 45° until 45° Weight with engine (kg) Lenght (mm) Width (mm) Height (mm) 1050 1050 Drilling area (mm)

  • Page 10: Accessories Delivered With The Machine

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Gearbox 1/25 Gear ratio (Ratio) 0.9 (900) Oil reservoir volume (L) Ignition system (electronic speed control) Principe Electronic ignition Candle BOSCH WSR6F (anti-interference) Electrode distance (mm) Fuel supply Diaphragm carburetor with position indifferent with primer and Carburator integrated fuel pump.

  • Page 11: Description Of The Machine

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 You will find the article codes of the accessories in the NORTON CLIPPER catalog. In case of use of accessories not approved or which do not correspond to the recommendations NOR- TON CLIPPER the responsibility of the manufacturer can under no circumstances be engaged. You will find in the NORTON CLIPPER diamond tools catalog a choice of tools adapted to the needs of the machine.

  • Page 12: Functional Description

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Functional description The CDP300 / 350 with thermal motor is a compact and lightweight machine which allows a practi- cal implementation in the most exiguous places. The core drilling machine CDP300 / 350 with Alko thermal engine is used for drilling cores up to Ø...

  • Page 13: Basic Safety Rules

    For woodworking, can not be consid- ered to be in conformity with the intended use. The company SAINT-GOBAIN ABRASIVES S.A. declines any responsibility for the damages that would result from such use. The user alone assumes the risk.

  • Page 14: Measures Of Organization

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Measures of organization The operating instructions must always be available at the workplace and within easy reach (for instance: in the box intended for that purpose)! In addition to the operating instructions, observe the general statutory requirements and other mandatory regulations on accident prevention and environmental protection and instruct the per- sonnel accordingly! Such obligations may also relate, for example, to the handling of hazardous materials, the provi-...

  • Page 15: Selection Of Staff

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Observe all safety and hazard warnings on the machine! Ensure that all warning signs close to the safety and hazards applied to the machine are always complete and readable! If the machine changes or the running behavior influences safety, stop the machine immediately and report the incident to the competent person or workstation! Do not carry out any measurements of transformation or assembly of additional elements on the machine likely to affect safety without the authorization of the supplier.

  • Page 16: Safety Instructions For Certain Phases Of Work

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Safety instructions for certain phases of work Before commissioning: Avoid any work that could interfere with safety! Before starting work, familiarize yourself with the working conditions existing on the site! These conditions include, for example, the obstacles present in the working and traffic area, the re- sistance of the ground and the necessary protective devices between the site and the public road! Take measures to ensure that the machine operates only in a safe and operable condition! Only operate the machine when all protective and safety devices, such as removable protective...

  • Page 17: Maintenance And Special Work On The Machine

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Maintenance and special work on the machine Perform the adjustment, maintenance and inspection operations prescribed by the operating instruc- tions in accordance with the intervals specified by the operating instructions as well as the informa- tion concerning the replacement of parts / partial equipment! Only qualified personnel can perform this work.

  • Page 18: Gas, Dust, Steam, Smoke

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Gas, dust, steam, smoke Use internal combustion engines in sufficiently ventilated rooms! Before proceeding with a start-up in an enclosed space, ensure adequate ventilation and clear out the exhaust gases thanks to the exhaust pipe supplied with the machine! Welding, flame cutting or grinding work can only be carried out on the machine if express authoriza- tion has been given (because of the risk of fire or explosion)!

  • Page 19: 4.11 Storage

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 4.11 Storage Place the machine in a dry, well-ventilated area that is not accessible to unauthorized persons. For longer storage (during winter), it should be thoroughly cleaned and handled with suitable corrosion protection. Note: Put drills that are not mounted in a dry, well-ventilated area that is not accessible to unauthorized persons.

  • Page 20: Statement Regarding Noise Emission

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 • Measurements are made with new machines. Actual values on site may vary with the conditions of use, depending on: - Materials worked - Machine Wear - Lack of maintenance - Tool not suitable for application - Tool in poor condition - Non-specialized operator - Etc ...

  • Page 21: Commissioning

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Commissioning Delivery checks Remove the packaging from the transport and place the machine on a flat and stable surface. Recycle packaging in accordance with environmental regulations. As the machine is delivered as- sembled, it is sufficient to check its integrity before use. A complete list of components can be found in the section “Technical data and accessories”.
  • Page 22 CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 5.2.2 Thanks to the strap for the clear pipes Secure the end of the strap to the side of the ma- chine using a shackle. Pass the other end of the strap under the hose (be careful not to twist it).

  • Page 23: Water Supply

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Water supply The water arriving on the cutting tool serves to cool the latter and to evacuate the coring sludge. 5.3.1 With pressurize water tank When the tank is new, first attach the hose to the tank. Ordering: •...

  • Page 24: Angle Adjustment

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Angle adjustment Upon delivery, the machine is in the 90 ° core position. To make an angular adjustment, proceed as follows: • Remove the floor frame (Item 3) and the screws (Item 1, 2, 4) Turn the floor frame (Item 3) and the frame (Item 5) by 180 °...
  • Page 25 VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN 5.5.1 With adapter 1“1/4 UNC Mount the UNC adapter on the gear unit. Insert the adapter on the gearbox spindle so that the teeth are assembled, then screw the adapter studs into the reducer shaft. Reassemble the drilling trolley so that the drill bit can be mounted easily under the adapter.

  • Page 26: In Function

    VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN In function Before starting Make sure that the machine is in perfect condition for safe operation: • All parts must be installed impeccably. • The stop button must be able to be pressed easily. •...

  • Page 27: Start Coring

    VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN Start coring Keep away from third parties put yourself in the operator position behind or on the left or right side of the machine. Switch on the water supply as described in the “Water supply” chapter. The drill bit is ap- proximately 5 mm above the surface to be drilled.

  • Page 28: Change The Diamond Drill

    CDP 300 / 350 KP_MAN_EN VERS. 2017.04.25 Change the diamond drill The drill bit must be changed when: • the drill bits are completely worn, • the composition of the material to be cut is different, • the drill bit is veiled and does not turn round, •...

  • Page 29: Slider

    VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN The drill After the drilling operation, check exactly the drill bit on the following points: Rupture of segments or segment fragments, segment tears, drill deformation, wear. If you notice any such error, the tool should be returned for repair. Also check the threaded connection for cleanliness.

  • Page 30: Search For Errors

    VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN Search for errors Cause Remedy Diamond tool that gets blunt Use a drill bit in the softer segments or decrease Segments with bond too hard the speed and increase the advance pressure. Use a drill with less of segments or decrease The contact surface of the segments is the rotation speed and increase the advance too big...
  • Page 31 VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN Abnormal and premature wear Use a drill bit with harder segments or increase Segments with bond too tender the rotational speed and decrease substantially the feed pressure. Decrease the advance and use segments wider Segments too narrow in relation to engine power and feed pressure.
  • Page 32 VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN...
  • Page 33 VERS. 2017.04.25 CDP 300 / 350 KP_MAN_EN SAINT-GOBAIN ABRASIVES NV/SA SAINT-GOBAIN ABRASIVI S.P.A SAINT-GOBAIN GLASS INDUSTRIELAAN 129 VIA PER CESANO BOSCONE 4 BUSINESS UNIT ABRASIVI 1070 ANDERLECHT : BRUSSEL I-20094 CORSICO MILANO PUNCT DE LUCRU: LOC.VETIS,JUD. BELGIUM ITALY SATU MARE 447355...
