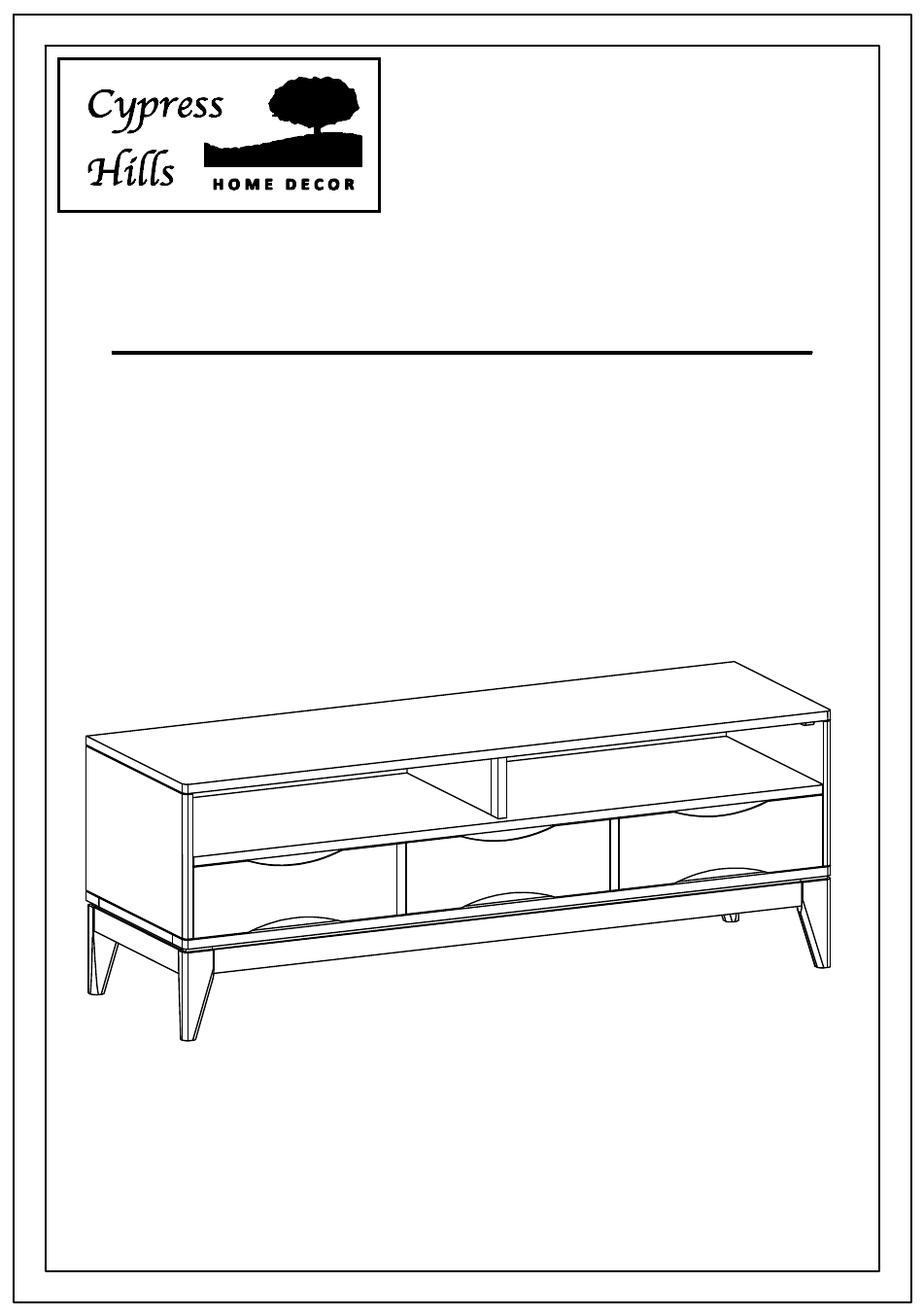

ASSEMBLY INSTRUCTIONS
HARRINGTON TV MEDIA STAND
MODEL # AXCHHAR-05
1/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXCHHAR-05 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cypress Hills AXCHHAR-05

  • Page 1 ASSEMBLY INSTRUCTIONS HARRINGTON TV MEDIA STAND MODEL # AXCHHAR-05 1/17...
  • Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: 1-800-667-8992 PLEASE ENSURE TO HAVE THE COLLECTION NAME AND DESCRIPTION FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/17...
  • Page 3 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
  • Page 4: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
  • Page 5: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCHHAR-05 PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM TOP DIVIDER LEFT BOTTOM DIVIDER QTY 1 QTY 1 QTY 1 MIDDLE SHELF LEG (L&R Same) RIGHT BOTTOM DIVIDER QTY 1 QTY 2...
  • Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCHHAR-05 HARDWARE DESCRIPTION ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 27 QTY 1 PHILLIPS SCREW WOOD DOWEL CAM LOCK PIN ROUND HEAD Ø8 x 30 mm M4 X 15mm CAM LOCK QTY 4 QTY 17 QTY 15 SETS...
  • Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCHHAR-05 8/17...
  • Page 9 ASSEMBLY MODEL # AXCHHAR-05 STEP-1 1. Attach Divider D to Middle Shelf F using three Allen Key Screws 1 . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. STEP-2 1. Attach six Cam Lock Pins 5 into pre-drilled holes at underneath of Middle Shelf F .
  • Page 10 ASSEMBLY MODEL # AXCHHAR-05 STEP-3 1. Attach three Cam Lock Pins 5 into pre-drilled holes on each Side AL , AR . 2. Align Cam Lock Pins with guide holes and attach Middle Shelf F . 3. Insert six Cam Locks 5 into guide holes on Middle Shelf F .
  • Page 11 ASSEMBLY MODEL # AXCHHAR-05 STEP-4 1. Attach Bottom C to Sides AL , AR and Bottom Dividers EL , ER using twelve Allen Key Screws 1 (three Screws on each Side and Bottom Divider). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 12 ASSEMBLY MODEL # AXCHHAR-05 STEP-5 1. Attach Legs G to Bottom C . 2. Use six Allen Key Screws 1 to secure part C and G (three Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 2 to secure part C and G (four sets on each Leg).
  • Page 13 ASSEMBLY MODEL # AXCHHAR-05 STEP-6 1. Insert two Wood Dowels 6 into guide holes on each Sides AL , AR . 2. Use rubber mallet to tap Wood Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 14 ASSEMBLY MODEL # AXCHHAR-05 STEP-7 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Attach Back Panel I to back frame of TV using seventeen Phillips Screws Round Head 4 through guide holes. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
  • Page 15 ASSEMBLY MODEL # AXCHHAR-05 STEP-8 1. Insert Drawers H into glides on TV. 15/17...
  • Page 16 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-9 NOTE: The screwdriver is not included in the hardware pack.
  • Page 17 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
