Summary of Contents for Titan Atlas LE

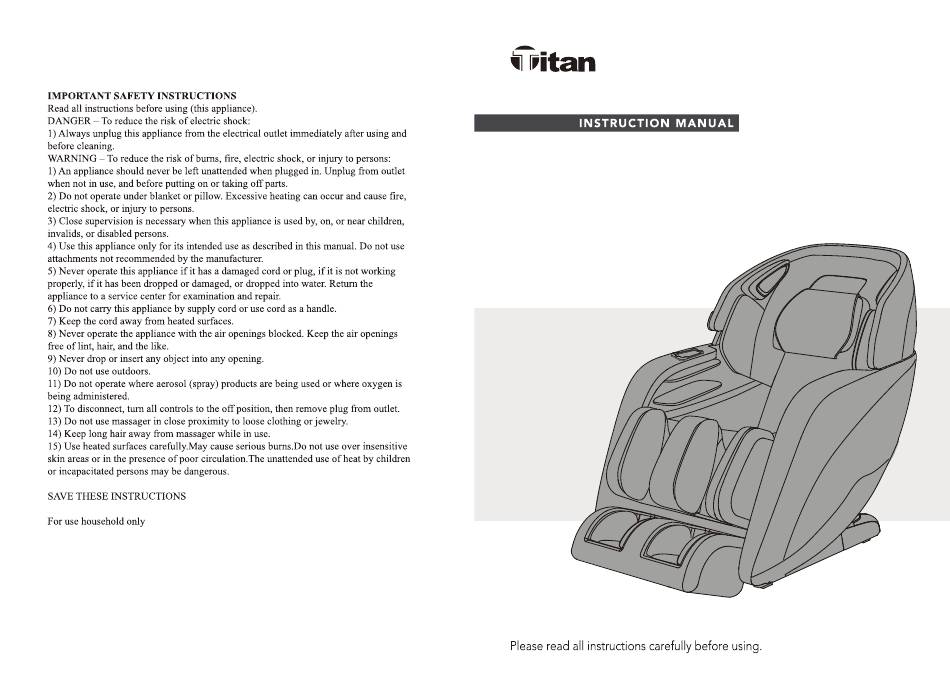

  • Page 1 Atlas LE...
  • Page 2: Table Of Contents

    Thank you for purchasing this product.Please read this user manual carefully SAFETY PRECAUTIONS before using to ensure proper installation and operation. Precautions listed below will help to ensure proper use of this appliance. Please keep this USER MANUAL properly for future reference. The hazard that may cause by incorrect use are classified into “WARNING”...
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS NAME AND FUNCTION OF EACH COMPONENT Best Circumstances External Structure Do not operate under blanket or pillow. Excessive heating can occur and cause fire,electric shock, or injury to persons. Do not use this appliance where temperature is over 40°C. Do not use this appliance in humid or dusty environment, or when any part of the body is in contact Audio Speaker with plumbing or any similar ground.
  • Page 4: Remote Control Instructions

    NAME AND FUNCTION OF EACH COMPONENT NAME AND FUNCTION OF EACH COMPONENTS Remote Control Remote Control Instructions Power:Press this button to power on/off the remote control. Press this button while connected to power to show the menu display,the LCD Screen lights up,use the UP/DOWN/LEFT/RIGHT MANUAL buttons to navigate the screen,press OK to select.
  • Page 5: Display Screen Menu Instructions

    NAME AND FUNCTION OF EACH COMPONENTS NAME AND FUNCTION OF EACH COMPONENTS Gentle treament: Adopts mild massage techniques to relax muscles in the back and Back Incline waist,helping to shape body figure and promote metabolism. Press and hold to raise the backrest,release the button to stop. AUTO Body Care: Designed for morning or midday relaxing,it helps to boost the viability of muscles.
  • Page 6 NAME AND FUNCTION OF EACH COMPONENTS NAME AND FUNCTION OF EACH COMPONENTS Massage Part: While Manual massage program is running,press this button to navigate 4D Massage Mode: While 4D massage program is running,press this button to navigate among:Whole,Partial and Point massage regions. among:deep shiatsu,healthy breath and massage extend 4D massage programs.
  • Page 7 NAME AND FUNCTION OF EACH COMPONENTS NAME AND FUNCTION OF EACH COMPONENTS Force-Air pressure intensity: Press Force from Airbag display,press RIGHT button Language: Press Language from Settings to show available language: 中文,EN. then press UP or DOWN button to navigate among:level 1,2,3,4,5 airbag intensity,or press RIGHT button then press UP or DOWN button to navigate,press OK button to enter Off(deactivate airbag intensity function),Press OK button to enter the airbag setting the language you desire.
  • Page 8: Features

    NAME AND FUNCTION OF EACH COMPONENTS FEATURES 1.Slide Forward While Reclining Tips: While 3D massage program is running,press this button to navigate In the process of Auto or Manual Setting,LCD screen will auto revert back to the among:deep shiatsu,healthy breath and massage extend 3D massage programs. homescreen after 10 seconds if there is no operation entered into the remote control.
  • Page 9: Instructions Of Off-Line Voice Control

    FEATURES PRELIMINARY CHECKS Installation Method Instructions of Off-line Voice Control Step 1:Take all massage chair units out of the cartons Language Support: English and Mandarin Chinese Unpack the cartons:take out all upholstery unit,accessories out of the cartons. Voice Command: Before beginning installation,please verify that all components are included Switch to Voice Mode (check with the packing list carefully) Power On...
  • Page 10: Connect To Power

    PRELIMINARY CHECKS PRELIMINARY CHECKS Move Method Connect the power cable to the product power socket located at the power box of the product.(Check below illustration for reference) Roll the chair on its casters to the desired location. Incline the backrest to upright position. Turn off the power switch and unplug the appliance from the electrical outlet.
  • Page 11: Installation Site

    PRELIMINARY CHECKS PRELIMINARY CHECKS Installation Site Commissioning Clearance space for the massage chair: Use the remote control to recline the backrest to its lowest position,raise and Ensure there is an adequate clearance for the installation: extend the footrest to its top position, make sure there is enough clearance It needs 10cm clearance for the recline of the backrest;...
  • Page 12: Floor Protection

    PRELIMINARY CHECKS PRELIMINARY CHECKS This product is for use on a nominal 120-V circuit and has a grounding plug thatlooks Floor Protection like the plug illustrated in sketch A in following figure. Make sure that the product is We recommend to place a piece of carpet or soft mat underneath it to avoid connected to an outlet having the same damaging the floor.
  • Page 13: Inspections Before Sitting

    CARE AND MAINTENANCE PRELIMINARY CHECKS Care and Maintenance Instructions Inspections Before Sitting To treat stains on back panel,armrest,footrest,plastic parts or air hose,spot clean Ensure the footrest is well assembled before sitting on the massage chair. with mild detergent foam,then wipe it with a dry cleaning cloth. Ensure the massage chair is returned to its original position before sitting To treat stains on controller,power box,spot clean with a dry cleaning cloth.
  • Page 14: Trouble Shooting

    TROUBLE SHOOTING PRODUCT SPECIFICATIONS Product Name : Titan Massage Chair Symptoms Possible Causes Possible Solutions Atlas LE Model Number : Rated Voltage : 110-120V~ Rated Frequency : 60Hz These noises are normal and arise Rated current:1.6A Noise is heard while...
