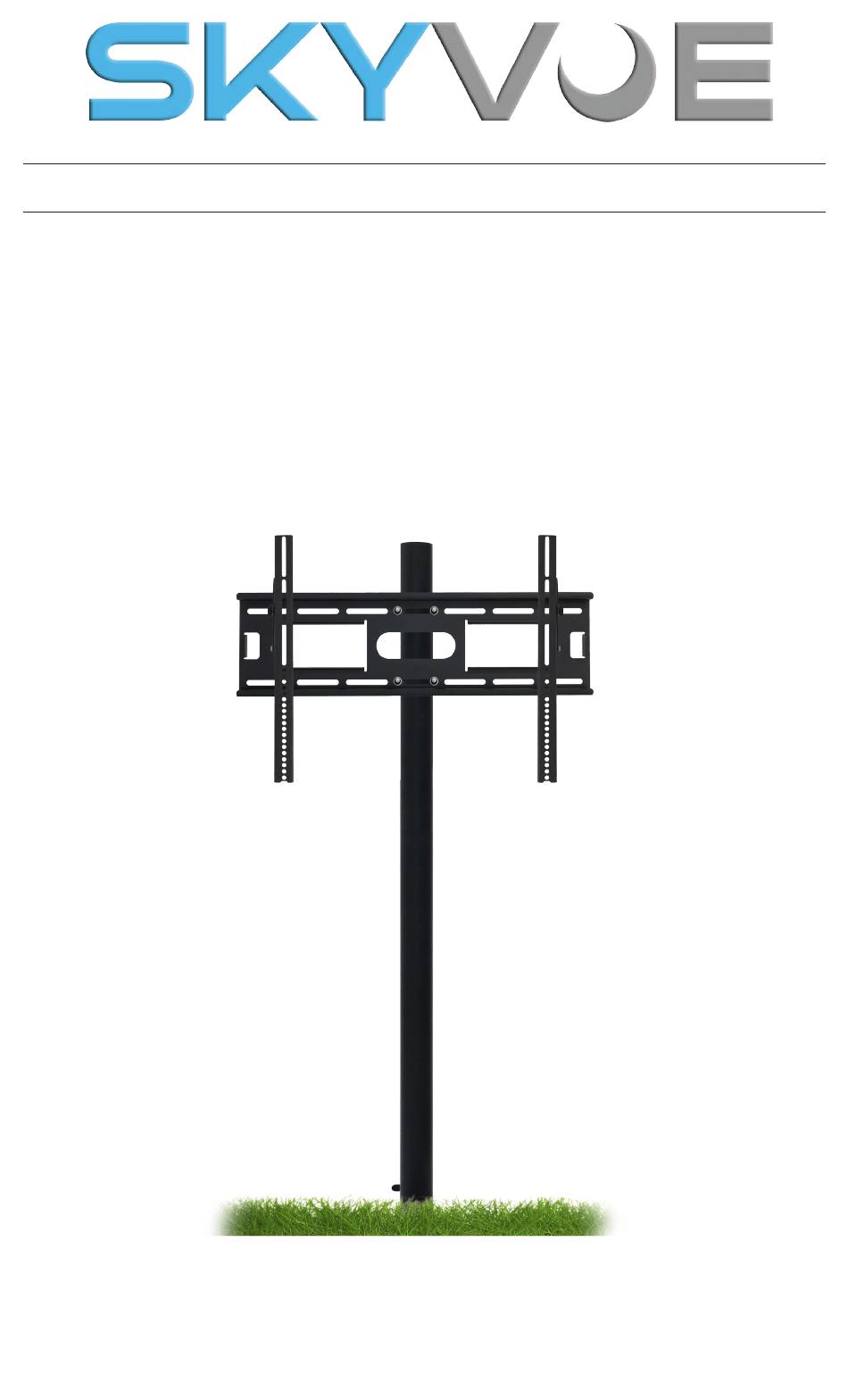

- Page 1 OBX 32000/4270/4770/5570 In-Ground Post Assembly Manual In-Ground Post...
- Page 3 In-Ground Post Setup...
- Page 5 Tools Required for in-ground post Setup: 1. Shovel 2. Post Hole Digger 3. Wheelbarrow and Garden Hoe (For mixing concrete.) 4. Bag of Concrete Mix (Amount of concrete will vary, additional bags may be needed to complete this installation) 5. Short In-Ground Post Sleeve 6.
- Page 6 Assembly Manual- In ground Post Concrete Set up Locate a spot for the post and television. Dig a square 14”x14” hole like shown below. We recommend that the hole should have a minimum depth of 24”, however depending on your location of install depth can or may need to be determined by the frost line of that area.
- Page 7 Pour the concrete mix into your wheelbarrow or mixing container. Check the packaging for the amount of water needed to create a mix of concrete. After measuring, pour the water into one side of the wheelbarrow or container. Be sure to measure the amount of water needed.
- Page 8 Assembly Manual- In ground Post Concrete Set up Once your concrete is mixed, have a friend assist you with pouring. Pour the concrete mixture to fill the hole. Pour slowly and evenly until concrete mix has reached ground level. Once the mixture has been poured into the hole gather the short post sleeve to be inserted in the next step.
- Page 9 With assistance insert the short post sleeve into the center of the concrete. It’s important that the post sleeve is inserted straight down and as level as possible. Continue to press the sleeve down until the flange is against the concrete mixture.
- Page 10 Assembly Manual- In ground Post With the concrete base set and hardened your post can now be mounted over the top of the sleeve. Do this by sliding the post down over the sleeve as shown. After you position the post insert the swivel locking handle at the hole located at the lower end of the mounting post.
- Page 11 Notes:...
- Page 13 Post Tilt Mount Assembly Manual OBX 42 / 47 / 55...
- Page 15 (4) Flat Washers, (4) Lock Washers, (4) Powder Coated Nuts 3. 2- U-Bolt Saddles 4. 4 - Rubber Bolt Caps 5. Appropriately sized tilt mount (Located in the box labeled “PTM”) oBX 32000 / 4270 / 4770 / 5570 ount...
- Page 16 Assembly Manual- Post Tilt Mount Tilt Mounts: The tilt mount portion of a portable cart is provided in a separate box labeled “PTM” and is size specific. See below for the appropriate sizes. 42”/ 47”/ 55” OBX-L ClassTelevisions Tools Required for Post Assembly: 1/2”...
- Page 17 U-Bolt Saddles. These should be positioned near the upper cable entry hole. With U-Bolts and saddles in place, slide mounting plate over the U-bolt ends. oBX 32000 / 4270 / 4770 / 5570 ount...
- Page 18 Assembly Manual- Post Tilt Mount ® All Rights Reserved. 2015 SkyVue...
- Page 19 3. Thread black powder coated nuts over bolt ends and hand tighten. See figure 3a for suggested mounting plate placement. 4. Once positioned, level and tighten all U-bolt nuts on mounting plate. 5. Place rubber bolt caps over exposed bolt ends oBX 32000 / 4270 / 4770 / 5570 ount...
- Page 20 Assembly Manual- Post Tilt Mount Lay blanket down on flat sturdy surface. Run hand over surface to make sure there are no sharp object or protrusions, before laying the television down. Lay television down, viewing side down on blanket. ® All Rights Reserved.
- Page 21 Align holes of the mounting arms with the holes on the back of the television. Reinsert the 4 bolts and from previous step and tighten securely. oBX 32000 / 4270 / 4770 / 5570 ount...
- Page 22 Assembly Manual- Post Tilt Mount With the help from a friend, lift the television and attach the hooks on the mounting arms to the plate on the tilt mount. Tighten knobs on arms once the tilt is set correctly for the television. Once the television is hung on the plate.
