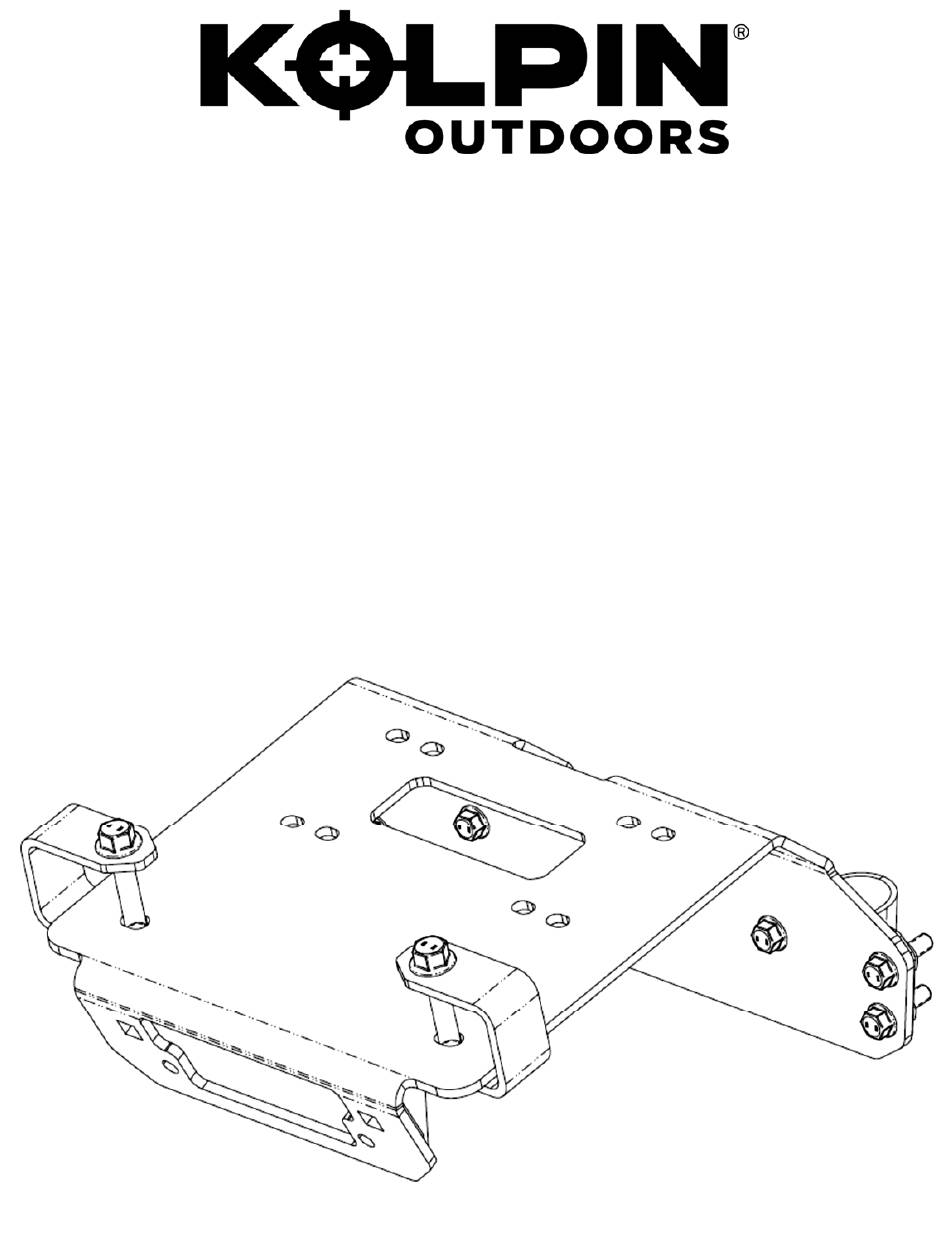

WINCH MOUNT KIT
FOR HONDA TALON 1000
P/N 25-1300
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kolpin 25-1300
Summary of Contents for Kolpin 25-1300
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 2 Kolpin winch mount kits are designed to be compatible with Kolpin and Cycle Country winches along with many others, but may not be compatible with some winches. Kolpin winch mount kits have design features that benefit snow plow applications.
- Page 3 Hex Flange Screw, Zinc Plated, M10-1.5 x 75mm LG Frame Clamp, Painted, M8-1.25 Lock Washer, Zinc Plated, M8 Flat Fender Washer, Zinc Plated, M8 Hex Flange Screw, Zinc Plated, M8-1.25 x 30mm LG Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 00...
-
Page 4: Before You Begin
BEFORE YOU BEGIN: TOOLS REQUIRED: Your Kolpin accessory is exclusively designed for Metric Wrench set • • your vehicle Metric Socket set • Please read and understand all instructions • Pliers • Verify all parts and tools are accounted for •... - Page 5 This winch mount kit can be used with the stock bumper and Honda Signature Accessory Front Bumper (see illustration 1-14). Ill. 1-3 8mm bumper bolts 6mm grille bolt Ill. 1-4 Front OEM bumper FRONT 5mm grille bolt © 2021 Kolpin Outdoors Inc. REV 00...
- Page 6 U - Bracket and then fasten from Ill. 1-5 bottom using two M10 locknut (item #3). (See illustrations 1-7, 1-8 and 1-9). Note, do not tighten hardware at this time. Ill. 1-6 Front Winch sub- Bumper assembly Ill. 1-7 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 7 OEM hardware removed in step 4 as shown. (See illustrations 1-9 and 1-10). Note, do not tighten hardware at this time. Ill. 1-8 OEM Hardware FRONT Ill. 1-9 OEM Hardware Ill. 1-10 FRONT OEM Hardware © 2021 Kolpin Outdoors Inc. REV 00...
- Page 8 11. Tighten the Winch Mount M10 and M8 hardware as specified below. (See illustration 1-13). Front Gear Case Ill. 1-12 10MM FASTENER TORQUE: 34 ft. lbs. (46 Nm) 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Ill. 1-13 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 9 Remove the blue protective tape from the terminals. (See illustration 1-17). Contactor Blue & Mount Tab Yellow Cables Ill. 1-16 Black & Red Power Cables Ill. 1-17 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 10 Do not tighten M6 contactor nuts at this time. Ill. 1-19 Side View of Contactor - FRONT Black Rubber Boot not Black shown for clarity Yellow Blue Ill. 1-20 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 11 22. Slide the insulated rubber terminal boots over the four contactor stud terminals. (See illustration Left Front 1-19). Tire View Under Hood Ill. 1-22 Top View Under Hood Top View Behind Front Ill. 1-24 Left Tire Ill. 1-23 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 12 30. Reinstall the rear hood, front hood and bat- tery box cover. 31. With vehicle key in the ON position, check winch for proper operation. Power Wire Ill. 1-26 Power Wire Starter Relay Ill. 1-27 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 13 One Year Limited Warranty For the period of one (1) year from the purchase date, Kolpin will replace for the original purchaser, free of charge, any part or parts found upon examination by Kolpin to be defective in material, workmanship, or both.
