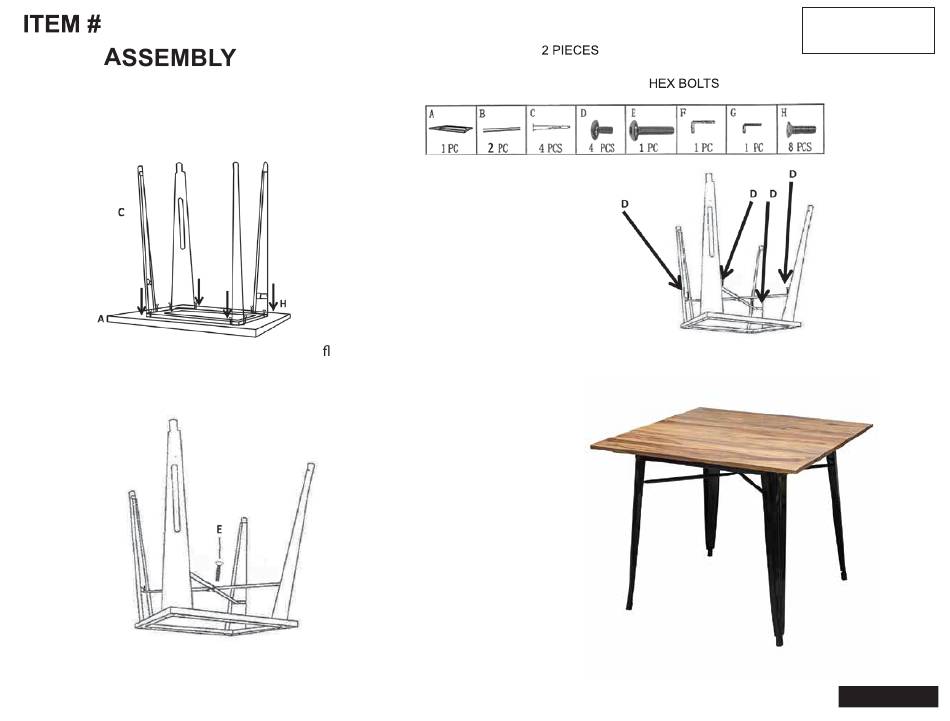

HCDTSET36
TABLE
(ITEM # SWT36 / ITEM # STBB80)
Identify and locate all hardware & components listed.
1)
Place table top (ITEM # SWT36) on smooth at surface.
Protect the top from scratches. Attach each Table Leg (C)
to Table Top (A) using 8 pieces screws ( H ).
3)
Attach X-support (B) using 1 piece small screws ( E ).
Call Customer Service 636-532-9888 if parts are missing. Do not exceed maximum weight capacity
HARDWARE & COMPONENTS
#A)
TOP
1 PIECE
#B)
X-SUPPORT
#C) TABLE LEGS
4 PIECES
4 PIECES
#D)
HEX SCREWS
2)
Attach X-Support (B) to each Table Leg (C) using 4 screws (D) .
4)
When all pieces are attached, tighten each screw securely.
#E)
HEX BOLT
1 PIECE
#F)
HEX KEY
1 PIECE
#G) HEX KEY
4 PIECES
8 PIECES
#H)
WEIGHT CAPACITY
TABLE : 330 LBS
PAGE 1 OF 2
