Introduction
The Model T32859 Folding Welding Table has a
load capacity of 350 lbs. The table surface has
⁄ " diameter holes spaced every 2" for welding
5
8
operations.
The table collapses for storage when not in use.
To reduce your risk of
serious injury, read this
entire
using machine.
Specifications
Weight Capacity ......................................350 lbs.
Work Table Size ....................................24" x 36"
Work Table Thickness ........................... 9 Gauge
Work Table Working Height ....................... 31
Needed for Setup
The following items are needed, but not included,
for the setup/assembly of the Model T32859.
Description
• Safety Glasses ........................................... 1
• Cleaner/Degreaser ..................... As Needed
• Disposable Shop Rags ............... As Needed
• Metal Protectant ......................... As Needed
• Cardboard .................................. As Needed
• Hex Wrench 10mm ..................................... 1
• Wrench or Socket 16mm ............................ 1
• Additional Person ....................................... 1
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
manual BEFORE
COPYRIGHT © AUGUST, 2021 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 08/21) #CS22022 PRINTED IN CHINA
MODEL T32859
24" X 36" FOLDING
WELDING TABLE
Inventory

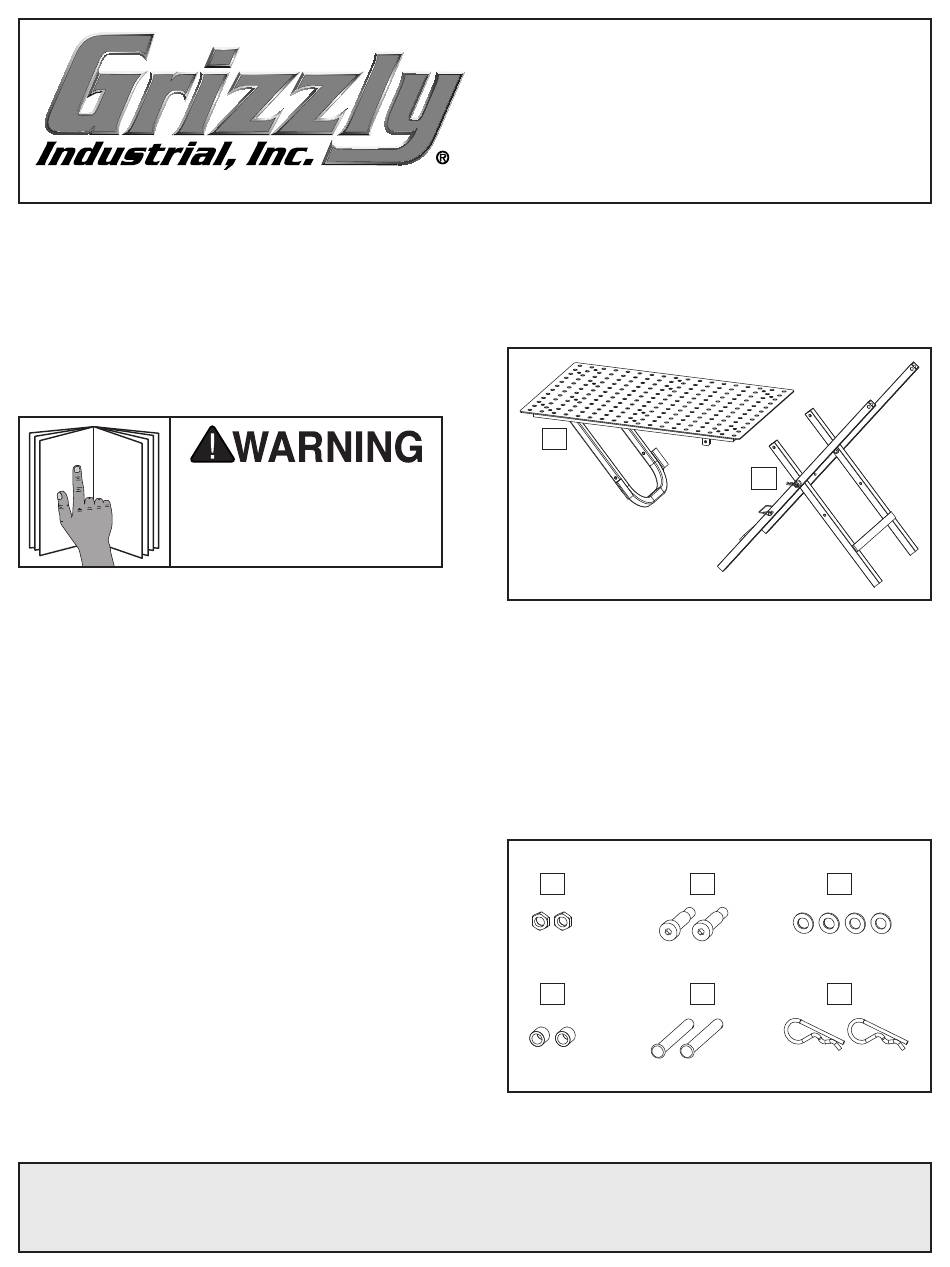

Large Items (Figure 1)
A. Table Assembly .......................................... 1
B. Leg Assembly ............................................. 1
A
Figure 1. Large items inventory.
Fasteners (Figure 2)
C. Hex Nuts M10-1.5 (Thin) ............................. 2
⁄ " D. Shoulder Screws M10-1.5 x 18 ................... 2
11
16
E. Flat Washers 10mm ................................... 4
F. Shaft Sleeves ............................................. 2
G. Hinge Pins 10 x 85mm ............................... 2
H. Cotter Pins 3.5 x 75mm .............................. 2
Qty
C
F
INSTRUCTIONS
B
D
G
Figure 2. Fasteners.
Qty
Qty
E
H
