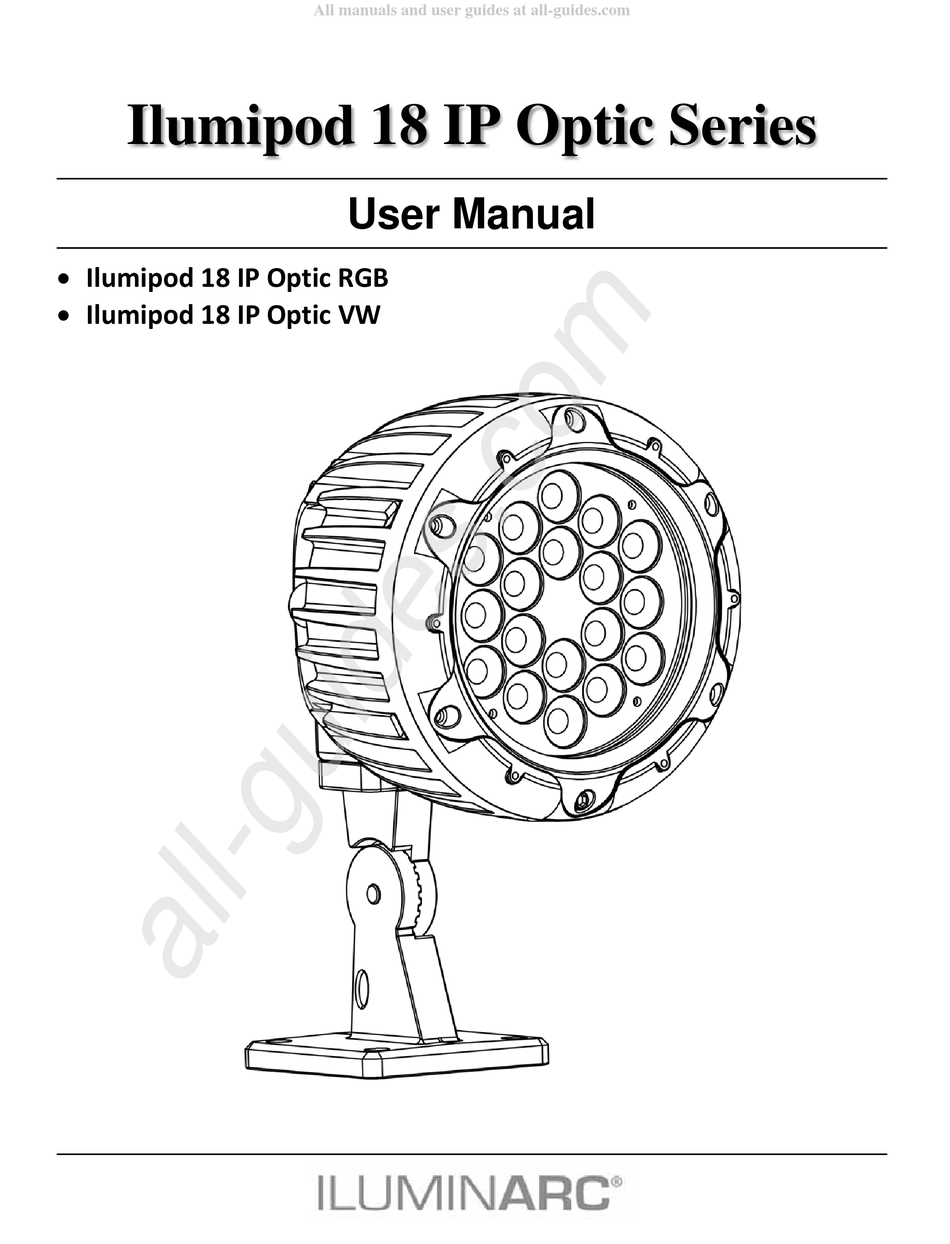

- Page 1 All manuals and user guides at all-guides.com Ilumipod 18 IP Optic Series User Manual Ilumipod 18 IP Optic RGB Ilumipod 18 IP Optic VW...
- Page 2 Document Revision The Ilumipod 18 IP Optic Series User Manual Rev. 08 supersedes all previous versions of this manual. Please discard any older versions of this manual you may have, whether in printed or electronic format, and replace them with this version.
-
Page 3: Table Of Contents
ARC 1 ..........................15 ARC 1 + D ......................... 15 ARC FULL ......................... 15 VW ............................. 16 VW + D ..........................16 SOLID ..........................16 Ilumipod 18 IP Optic Series User Manual Rev. 08... - Page 4 Returns Procedure ..................... 23 Claims ......................... 23 Contact Us ........................23 Technical Specifications ..................... 24 Ilumipod 18 IP Optic RGB ....................24 Ilumipod 18 IP Optic VW ....................25 Ilumipod 18 IP Optic Series User Manual Rev. 08...
-
Page 5: Introduction
A set of two mutually exclusive menu options in a menu A unique value to enter or select in a menu The term “DMX” used throughout this document refers to the USITT DMX512-A transmission protocol. Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 6: Safety Notes
Mounting and Installation do so. The Ilumipod 18 IP Optic Series are for outdoor use and can work while submerged in up to 1 m of water (IP67). However, do not submerge deeper than 1m for more than (30) thirty minutes. -
Page 7: Product Description
All manuals and user guides at all-guides.com Installation 2. Product Description The Ilumipod 18 IP Optic Series includes two products: Ilumipod 18 IP Optic RGB and Ilumipod 18 IP Optic VW. Common Features Other than their Remotely addressable DMX-512 LED wash light LED configuration ... -
Page 8: Product Overview
All manuals and user guides at all-guides.com Installation Product Overview Cable tie Gore Valve location Power In Mounting Bracket Front of Safety cable product attachment Bracket Adjustment Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 9: Product Dimensions
All manuals and user guides at all-guides.com Installation Product Dimensions Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 10: Installation
0 to 100% switch. To provide AC power for any of the Ilumipod 18 IP Optic Series, you can connect the bare- ended IP67 rated power cable from the product to an IP67 rated power connector or use an IP67 rated junction box. -
Page 11: Power Distribution
Signal Distribution insulation. This is required to keep the products IP67 Connect the bare-ended signal cable from the product to a signal distribution box as rating when fully adjusted. indicated below. Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 12: Controllers
Installation Controllers If you have not The products in the Ilumipod 18 IP Optic Series can operate with a standard DMX controller or configured the the Ilumicode controller. The sections below will show you how to connect these products to DMX starting the corresponding controllers. -
Page 13: Ilumicode
20 products in this mode and keep the total distance to less than 60 m (197 ft). Otherwise, you might need to use an optically isolated signal amplifier. ILUMICODE Addresser Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 14: Mounting
Always mount this product in a safe position making sure there is adequate room around it for ventilation, configuration, and maintenance. Rigging Make sure to The Ilumipod 18 IP Optic Series consist of a cast aluminum mounting bracket with four (4) mount this ® 5mm screw holes. ILUMINARC... -
Page 15: Operation
30 seconds of inactivity. Menu Map When you scroll The products in the Ilumipod 18 IP Optic Series have distinct menu maps based on the colors through the they produce, whether RGB or White. The Ilumicode addresser controls the functions for both menu levels, you types of products. -
Page 16: Rgb Functions Menu Map
RGB products. White output is as per CALIB > RGBTOW RGBTOW COLOR settings SETTINGS Output matches that of product’s previous versions RESET NO/YES Resets unit to factory default settings Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 17: Programming
1. Go to DIMMER. 2. Select a dimmer curve (OFF or DIM1~4). DIMMER Description Dimmer curve is linear with fader DIM1 Non-linear (fastest) DIM2 Non-linear (fast) DIM3 Non-linear (slow) DIM4 Non-linear (slowest) Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 18: Ilumicon Control
When the RGB faders are all at “255”, the output matches the same color output of previous versions of this product. Reset Go to SETTINGS > RESET TO FACTORY SETTINGS. Select an option (YES/NO). Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 19: Dmx Values
010 029 OFF (Dimmer is linear) 030 069 DIM1 (Fastest dimmer curve) Dimming Speed 070 129 DIM2 130 189 DIM3 190 255 DIM4 (Slowest dimmer curve) Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 20: Vw + D
000 255 0 ~ 100% Dimmer 000 255 0 ~ 100% Warm White 000 255 0 ~ 100% Cool White SOLID Channel Function Value Percent/Setting 000 255 0 ~ 100% Dimmer Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 21: Technical Information
Troubleshooting Table as a guide Technical Support. only. In most cases, opening the product’s housing will invalidate its warranty, unless there is a written indication on the contrary. Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 22: Troubleshooting Guide
DMX signal problems Install an optically coupled DMX splitter Too many products after unit #32 or before Keep DMX cables separated from power Interference from AC wires cables or fluorescent/black lights Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 23: Photometrics
25.6 26.8 Beam (50%): 17.6% 121.3 12.5 12.7 Total: 57.2% 394.6 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod 18 IP Optic Series User Manual Rev. 08... - Page 24 53.3 53.3 Beam (50%): 23.9% 164.6 26.4 26.3 Total: 58.3% 402.2 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod 18 IP Optic Series User Manual Rev. 08...
- Page 25 61.8 61.5 Beam (50%): 18.6% 257.1 34.9 34.5 Total: 36.6% 505.3 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod 18 IP Optic Series User Manual Rev. 08...
-
Page 26: Led Disclaimer
CRIs as low as 25 still produce visually pleasing white light. Evaluate LED systems in person and, if possible, on-site when color fidelity or color appearance are important issues. Source: DOE publication: PNNL-SA-56891, January 2008 Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 27: Returns Procedure
5200 NW 108th Avenue Sunrise, FL 33351 Voice: (954) 923-3680 Fax: (954) 929-5571 Email: info@iluminarc.com Customer Support Voice: (954) 923-3680 (ext. 4000) Fax: (954) 756-8015 Email: tech@iluminarc.com World Wide Web www.iluminarc.com Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 28: Technical Specifications
104° F (40° C) Convection I/O Connectors Connector Type Channel Range Open Wire Sockets 1, 3, 4, or 7 Ilumipod 18 IP Optic RGB 15º Optics 30º Optics Ordering 11018001 11018004 Ilumipod 18 IP Optic Series User Manual Rev. 08... -
Page 29: Ilumipod 18 Ip Optic Vw
Max. External Temperature Cooling System 104° F (40° C) Convection I/O Connectors Connector Type Channel Range Sockets 1, 2, or 3 Ilumipod 18 IP 30 VW Optional Ilumicode Ordering 11018010 44444001 Ilumipod 18 IP Optic Series User Manual Rev. 08... - Page 30 All manuals and user guides at all-guides.com Technical Information ILUMINARC® 5200 NW 108th Avenue Sunrise, FL 33351 U.S.A. Tel.: (954) 923-3680 www.iluminarc.com Ilumipod 18 IP Optic Series User Manual Rev. 08 August 2011...
