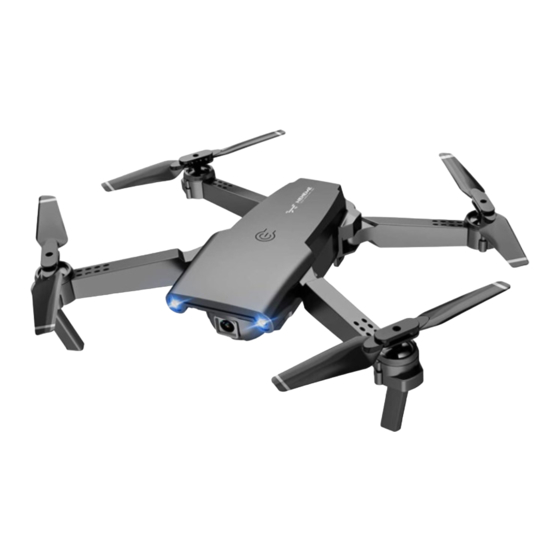

- Page 1 NH525 Hawk Drone V1.21...
-
Page 2: Disclaimer And Safety Guidelines
NEHEME accept no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices including, but not limited to, those set forth in these Safety Guidelines. NEHEME reserves the right to update this user manual. -
Page 3: Product Overview
PRODUCT OVERVIEW One Key Return Headless Mode (Long press for 3 seconds) Speed 3D flips Right Joystick Press down to hear the tone can be fine-tuning Left Joystick left and right, up and down (Up / down, left / right turn) Emergency Stop Record Video One Key Start / Landing... - Page 4 2. Charge the battery of the drone. 3. Install the drone battery after it’s fully charged. USB Adapter Power Bank Charging: Red LED USB Port Fully Charged: LED Off Tips: 1. For your safety, please use the original battery and USB cable. 2.
- Page 5 Take-off Option 1: a. Push two levers down to 45° as picture shows, the lights on drone keep flashing, after 2-3s, the lights keep on. b. Press the button to take off. Option 2: a. Push two levers down to 45° as picture shows, the lights on drone keep flashing, after 2-3s, the lights keep on.
- Page 6 Instructions of the Remote Left Control Stick Ascend and descend Push the Left Control Stick forward and the drone will ascend; pull it backward and the drone will descend. Rotate Left and Rotate Right Push the Left Control Stick leftward and the drone will rotate to the left;...
- Page 7 Flight Trimming Press down the right remote stick to enter fine-trimming, push the right stick up/down to backward/forward trimming. Press the right stick again to exit this mode. Press down the right remote stick to enter fine-trimming, push the right stick left/ right to rightward/leftward trimming.
- Page 8 One key Return Long press for 3 seconds the One Key Return button, and then the drone will fly toward its back following a path parallel to its original take-off path. Press the button again or push the right stick to quit this mode. 360 °Flip After flying the drone to a height over 2 meters, press the 360 °...
- Page 9 App Operation Guide 1.Download and install Neheme Hawk into your mobile device from App Store / Google Play or scanning the QR code below. For Android 4.4 or later For ISO 9.0 or later 2. Turn on the drone first, go to the WIFI settings of your mobile device and connect to the wifi NEHEME_NH525_*** 3.
- Page 10 SPECIFICATIONS Drone Operating Temperature 32°F to 104°F (0℃ to 40℃) Frequency Range Model NH525: 2.416-2.475 GHz Remote Model NH525: 2.416-2.475 GHz Frequency Range Transmit Power (EIRP) Model NH525: 2.4GHz<18dBm...
- Page 11 FCC Caution: This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning! Any changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment.
- Page 12 Never define your vision www.neheme.com / support@neheme.com...
