Power Factor Correction

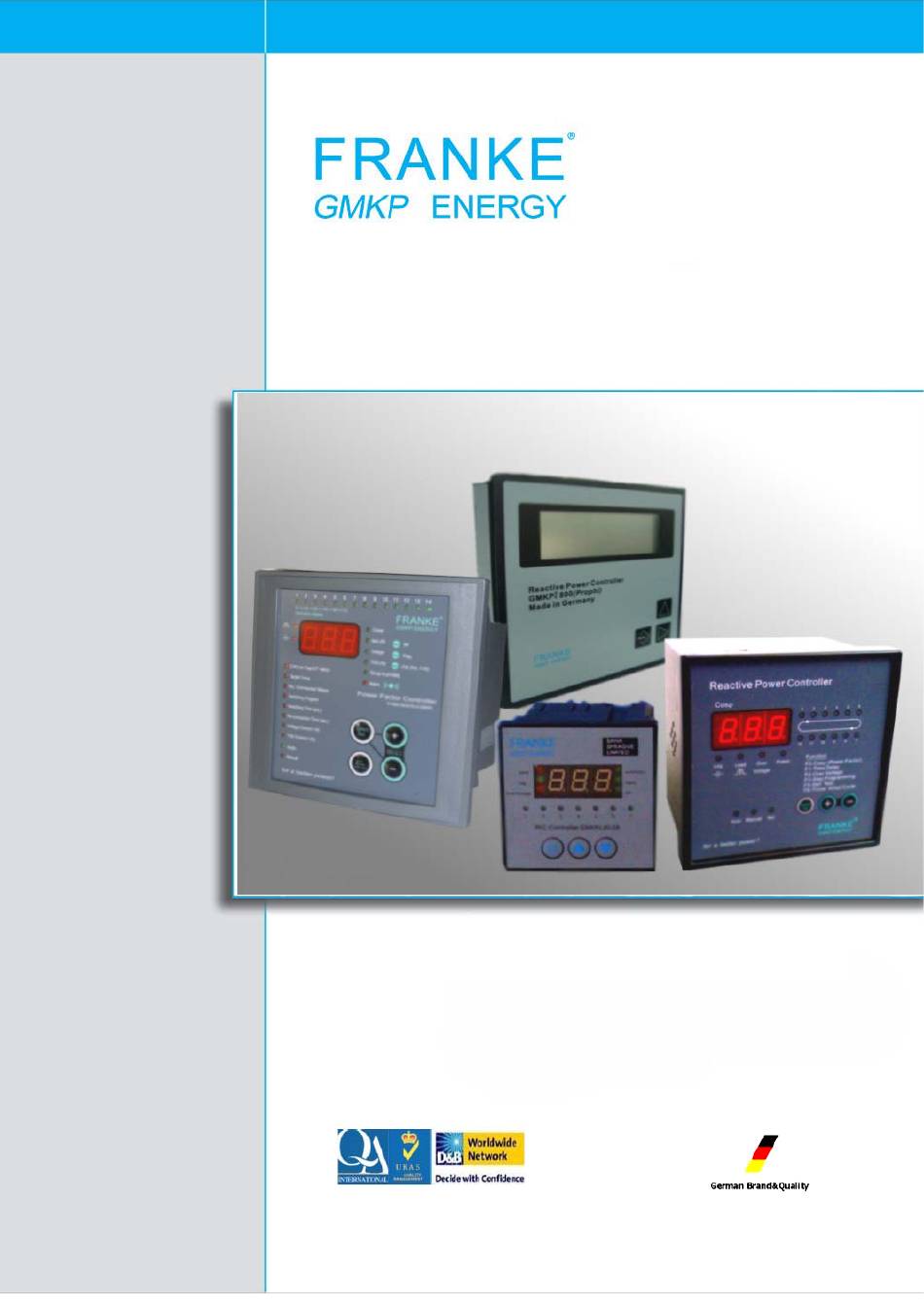

Operation Manual GMKPc JKL Series Automatic Controllers
Save energy and reduce Carbon Dioxide emission!
For a better Power !
Advertisement
Table of Contents
Related Manuals for Franke GMKPc JKL Series
Summary of Contents for Franke GMKPc JKL Series
- Page 1 For a better Power ! Power Factor Correction Operation Manual GMKPc JKL Series Automatic Controllers Save energy and reduce Carbon Dioxide emission! FRANKE GMKP LTD. Http://www.frankegmkp.com Berlin,Frankfurt,Germany Tel: 0049 30200033043 Email:info@frankegmkp.com C1607 Software Park, National Hi-Tech Industry Development Area, Wuxi...
- Page 2 GMKPc JKL Controllers General Information GMKPc JKL Series Intelligent Reactive Power Controller is a controller designed for low-voltage distribution system for compensation of reactive power. Applying the latest reactive power control CMOS chip from U.S.A., the Controller features high anti-jamming capability, wide compatibility with the distribution systems with different parameters, stable function, complete compensation and simple operation.
- Page 3 GMKPc JKL Controllers Operation manual 1Technical parameters 1.1 Operating voltage: 380 V±20% 50 Hz The GMKPc JKL58 - 12 Step Controller 1.2 Input current: ≤ 5 A 1.3 Output contact capability: 250V/5A AC 380 V/3A AC 1.4 Operating way: automatic cycle and continuous operation 1.5 Throw-in threshold: more than 1.1 Ic and less than COSφ...
- Page 4 INSTALLATION DEMENSION c JKL Controllers 5. Functional code table Functional Min. Factory setting Name Setting range Unit Installation dimension code value value COSφ 0.90-0.99 0.01 0.98 Delay 10-99 Overvolt 410-470 Panel cut-out 136 x 136mm Number of 1-10/12 10/12 return (1-57) (5/7) 138 x 138mm 12steps,...
- Page 5 c JKL controllers Connection of the controller: Contactor 220V: contact P connects with contact N Contactor 380V: contact P connects with contact B Drilling size: 68x68mm for 5 steps and 7 steps, 113x113mm for 10 steps and 12 steps Mounting size: 72x72mmx213mm for 5 steps and 7 steps, 138x138mmx150mm for 10 steps and 12 steps GMKPcJKL Controllers Connection power factor correction...
- Page 6 References FRANKE GMKP has founded successful corporation with famous brands and manufacturer all over the world. Because of FRANKE GMKP does strongly work to keep and improve a German Quality level, we were selected by international renowned companies (like ABB, Siemens, and LS) for using our products.
