Summary of Contents for forlong DTSY1286E

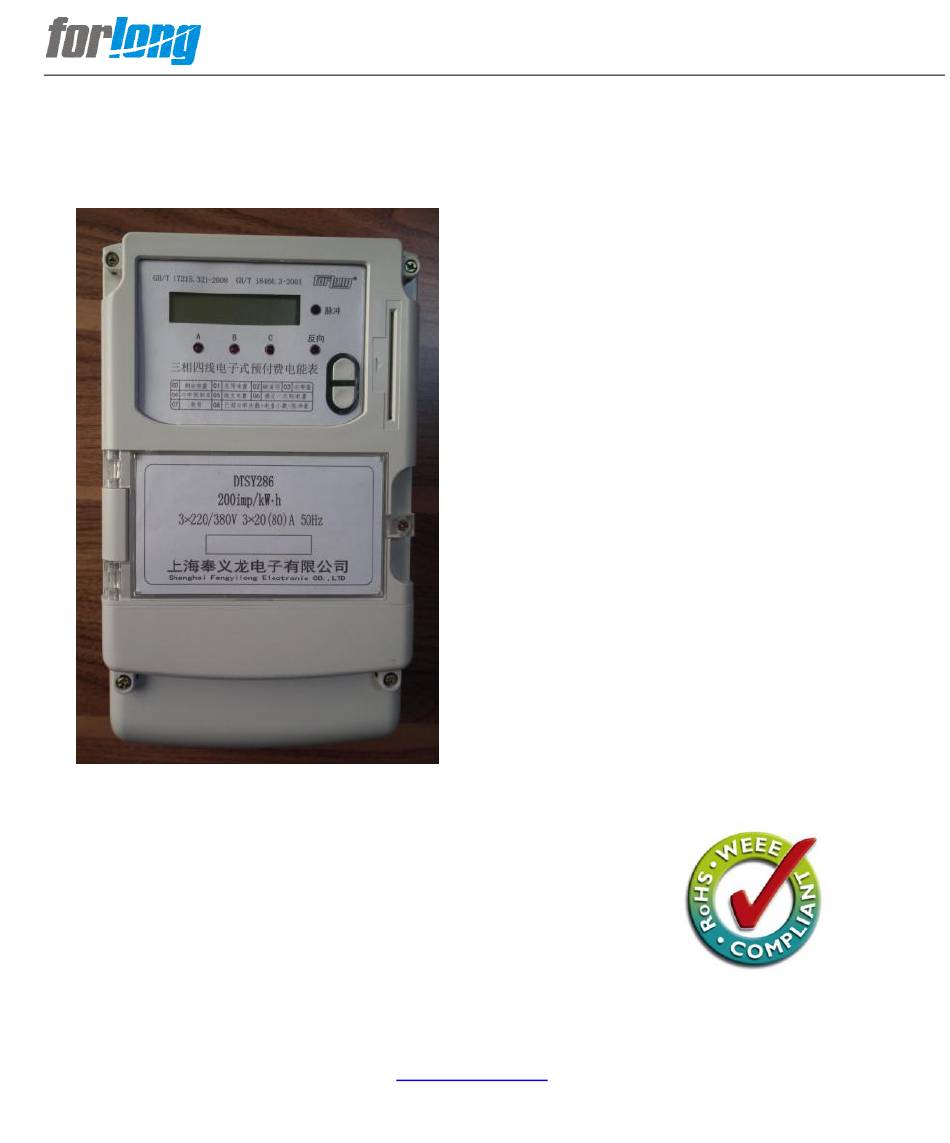

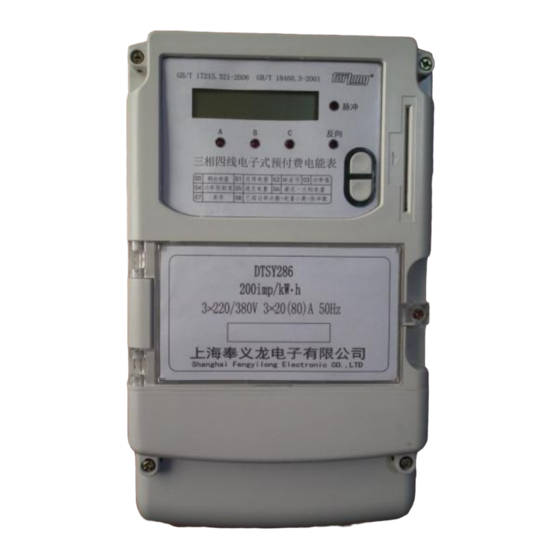

- Page 1 DTSY1286E User Manual DTSY1286E Three Phase Electronic Prepaid Energy Meter User Manual Shanghai Fengyilong Electronic Co,. Ltd. www.china-meters.com Email:sale01@china-meters.com +86-21-60975591/ 60975592...
- Page 2 DTSY1286E User Manual 1. Overview DTSY1286E, three-phase four-wire and three-wire electronic prepayment meter (hereinafter referred to as the power meter), the company is based on the excellent performance of electronic three-phase active energy meter on, developed with energy metering and user information management and other functions of energy measurement...
- Page 3 DTSY1286E User Manual Rated frequency Model DTSY1286E Rated current 1.5(6)A, 5（20）A 3×220V/380V 10（40）A,20（80）A 50Hz Rated voltage 1.5(6)A,3(6)A 3×57.7V/100V 50Hz ·Date protection: After power data retention time ≥ 10 years · Starting current: 1.0 0.4% Ib2.0 level calibration current 0.5% Ib ·...
- Page 4 DTSY1286E User Manual 4.1.2 Display description · Reverse each show an IC card is inserted, the display refer to the table below Explanation Number content form unit x x x x x x Remaining electricity - x x x x x...
- Page 5 DTSY1286E User Manual 1(recommended mounting height is 1.8m); installation process if the machine from strong shocks or high-altitude drops significantly when the case has damaged, do not install, and as soon as possible with suppliers Contact. The meter should be in accordance with the side buttons cover the wiring diagram (see diagram 3) wiring, the best access to copper wire or copper lugs.
