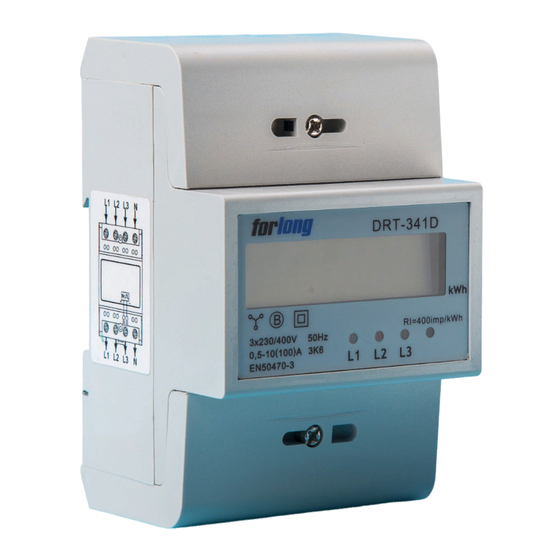

DRT-341D
Three phase four wires DIN rail energy meter LCD display
(One module)
User manual
Shanghai Fengyilong Electronic CO.LTD
1.1
1.2
1.3
1.4
1.5
1.6
1.7
www.china-meters.com
DRS-341 series User Manual
Foreword
General Technical Data
Basic errors
Dimension
Wiring diagram
Operating
Technical support
Email:sale01@china-meters.com
86-21-62270763/ 62270963
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for forlong DRT-341D
Summary of Contents for forlong DRT-341D
- Page 1 DRS-341 series User Manual DRT-341D Three phase four wires DIN rail energy meter LCD display (One module) Foreword General Technical Data Basic errors Dimension Wiring diagram Operating Technical support User manual Shanghai Fengyilong Electronic CO.LTD www.china-meters.com Email:sale01@china-meters.com 86-21-62270763/ 62270963...
-
Page 2: General Technical Data
Thank you for purchasing the FORLONG DRT- 341D series DIN rail three phase four wire energy meters. With the FORLONG product range we have provided a large scale of energy meters on the market suitable for 110V AC to 400V AC (50 or 60Hz). Besides the normal energy meters we also developed our own pre-paid meters with chip card, chip card re-loaders and a complete PC management control system. -
Page 3: Basic Errors
DRS-341 series User Manual 1.2.8 Temperature range(℃) Operating -10℃ to +50℃ Storing -30℃ to +70℃ 1.2.9 Humidity Operating Storing 1.2.10 Protection Protection against penetration Of dust and water IP51 1.2.11 insulating encased meter Of Protective class 1.2.12 Voltage withstand AC voltage withstand 2KV for 1 minute Impulse voltage withstand 6KV-1.2uS waveform... -
Page 4: Wiring Diagram
DRS-341 series User Manual Front panel Cover Base Security hasp Material Front panel PC inflammable retarding Cover ABS inflammable retarding Base ABS inflammable retarding 1.5 wiring diagram Shanghai Fengyilong Electronic CO.LTD www.china-meters.com Email:sale01@china-meters.com 86-21-62270763/ 62270963... - Page 5 DRS-341 series User Manual 1.6 Operating Consumption indication: There is a LED which has two colors (green and red) while flashing in the front panel of DRT-341 series. When consumption happens, the LED will flash and display red. The more quickly LED flash, the more consumption there is.
-
Page 6: Technical Support
DRS-341 series User Manual 1. L1, L2, L3 show phase A, phase B, phase C in lord. 2. L1, L2, L3 show phase A, phase B, phase C are electric. Display function Cycle display status, the default is 5 seconds. The display items as following: The display item can be settled: Display item Total power (A+B+C)
