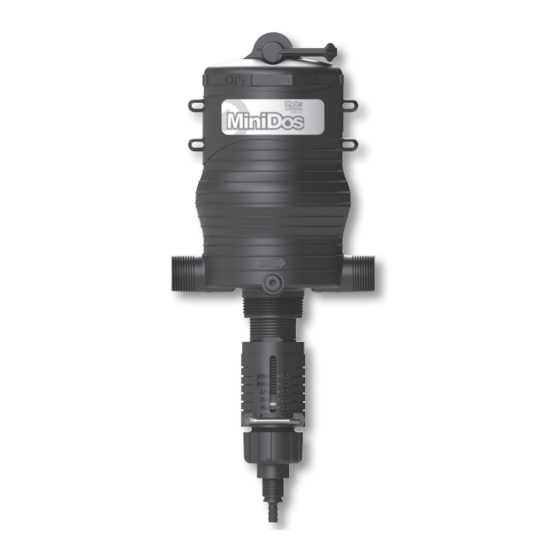

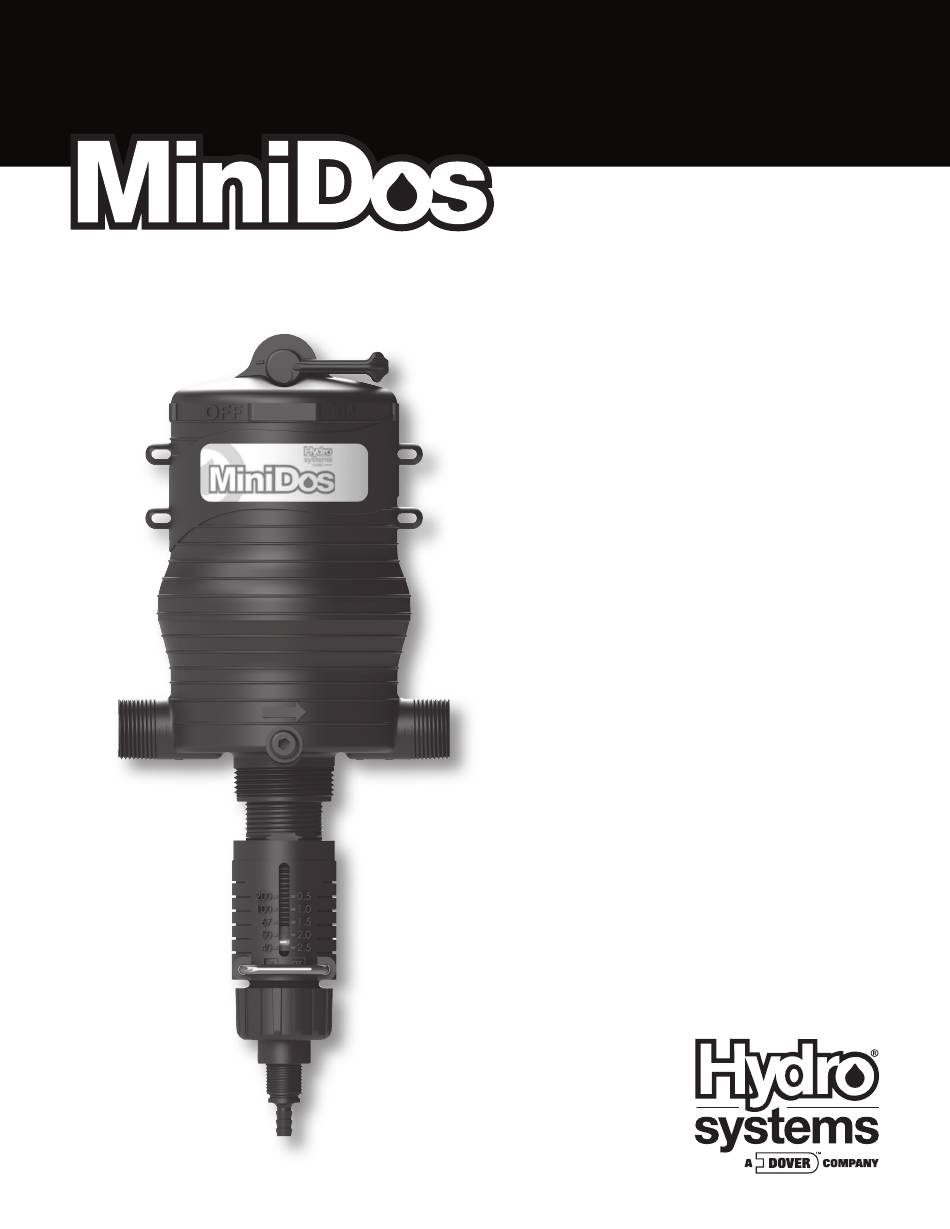

- Page 1 Operating Manual Model 0.4% Model 1% Model 2.5% Model 5% Model 10% Model 20% Fluid Flow Range: 0.03 gpm to 12 gpm* 7 lph to 2,700 lph* Injection Range Dosage: 0.025% to 20% 1:4000 to 1:5 Operating Pressure: 6 to 140 psi* 0.5 to 9.6 bar* *Specifications vary by model.
- Page 3 Quick Start-up 0.4% 2.5% 2 in. 51 mm. Part # 013815 Rev. L...
-
Page 4: Operating Principle
Operating Principle Accurate and Reliable Installed directly in the fluid supply line, the injector operates without electricity, using fluid (water) pressure as the power source. The fluid drives the injector, which pulls the required percentage of concentrate directly from the chemical solution container. Inside the Hydro patented mixing chamber, the concentrate is mixed with the fluid, and the fluid pressure forces the mixed solution downstream. -
Page 5: Table Of Contents
Contents Operating Principle .............................4 Package Contents ..............................6 Specifications ..............................6 Safety Precautions .............................7 Warranty Compliance ............................7 General Tips ...............................7 Operations ................................8 Installation & Start-up ............................9 Suggested Installation Diagram .........................9 Remote Injecting ...............................10 Maintenance ..............................10 Routine Maintenance Instructions 0.4% ......................11 Routine Maintenance Instructions 1% ......................12 Routine Maintenance Instructions 2.5% &... -
Page 6: Package Contents
Package Contents The injector is packaged with the following items: • Hydro Injector (not shown) • Mounting Bracket • Dosage Piston • Mounting Nuts and Bolts • O-ring • Filter • Manual (not shown) • Suction Tube • Lower Shaft Assembly Model 0.4% 112608 112609... -
Page 7: Safety Precautions
Safety Precautions/Warranty Compliance Warning: Please read precautions thoroughly before operation. Must meet all applicable local codes and regulations. Remove Red Caps Prior to Installation Avoid a Potentially Hazardous Chemical Accident Your injector is 100% factory tested before delivery Select a safe location. Chemical container should be kept away from children and/or high usage areas and may contain a small amount of water. -
Page 8: Operations
Operations Bypass Operation Clicking Sound is Normal Injecting solution into the fluid line can be TEMPORARILY Fluid flowing through the injector will automatically cause the injector stopped with the On/Off feature (Fig. 3). Moving the On/Off to “click” and inject a set amount of solution into the fluid line. The Lever to the OFF position allows service fluid to pass through higher the flow rate the more frequent the “clicking”. -
Page 9: Installation & Start-Up
Installation & Start-up Refer to Fig. 4 and Fig. 5 Fluid Filter (Required) Additional Siphoning Prevention Install a filter of 140 mesh (104 micron) or finer depending Place solution container on a level below the injector suction on your fluid quality to prolong the working life of the injector tube fitting. -
Page 10: Remote Injecting
Remote Injecting Remote Injector Kit (not included) Kit Part Numbers Is recommended for the following: 011762 Injectors In a Series: When injecting multiple chemical injections, using two or more injectors. Each injector adds chemical to the fluid(water) system, while bypassing the next injector and eliminating the potential damage to that injector (see Fig. -
Page 11: Routine Maintenance Instructions 0.4
Routine Maintenance Instructions 0.4% Step 1. Step 2. Step 3. Unscrew #7 OUTER 1/4 turn to remove #51 Remove #16 Gasket. SHAFT ASSEMBLY CYLINDER from body. Step 4. Step 5. Step 6. Remove #82 SHAFT Remove #17 O-ring. Replace #17 O-ring. SEAL SPACER. -
Page 12: Routine Maintenance Instructions 1
Routine Maintenance Instructions 1% Step 1. Step 2. Step 3. Unscrew #7 OUTER 1/4 turn to unlock and remove Remove #52 UPPER CYLINDER from body. #51 LOWER SHAFT and replace. SHAFT. Step 4. Step 5. Step 6. Remove and clean #16 GASKET Remove #17 O-ring and replace. -
Page 13: Routine Maintenance Instructions 2.5% & 5
Routine Maintenance Instructions 2.5 & 5% 2.5% 2.5% Step 1. Step 2. Step 3. Unscrew #7 OUTER Rotate #51 or #52 SHAFT Replace #44 DOSAGE PISTON CYLINDER from body. 90° and remove. thin lips up. Clean & inspect #14 O-ring replace if necessary. Step 4. -
Page 14: Routine Maintenance Instructions 10
Routine Maintenance Instructions 10% Step 1. Step 2. Step 3. Unscrew #7 OUTER 1/4 turn and remove #52 Remove #83 SHAFT SHAFT, #16 GASKET and SEAL SPACER. CYLINDER from body. #15 RETAINER. Step 4. Step 5. Step 6. Remove #17 O-ring and replace. Replace #83 SHAFT Squeeze ears on shaft SEAL SPACER. -
Page 15: Routine Maintenance Instructions 20
Routine Maintenance Instructions 20% Step 1. Step 2. Step 3. Unscrew #61 OUTER Unscrew to unlock and remove Remove #73 DOSAGE #93 CAPSCREW. PISTON GUIDE, clean CYLINDER from body. and inspect #14 O-ring. Step 4. Step 5. Step 6. Remove #44 DOSAGE PISTON. Unscrew and remove #72 Remove and replace #17 ADAPTER as well as #68 O-ring,... -
Page 16: Troubleshooting
Troubleshooting New Install - Always Pressure Up Slowly (Follow start up on page 9) Problem Cause Solution Are the red plugs at the inlet, outlet and suction tube fitting openings removed? Is the unit installed backward? The arrow on the unit must point in the direction of the fluid flow. - Page 17 Kits & Spare Parts List Injector Repair Parts ............................18 0.4%: ................................19 1%: ................................20 2.5%: ................................21 5%: ................................22 10%: ................................23 20%: ................................24 Accessories: ..............................25...
- Page 18 Injector Repair Parts Reference # Description Upper Body Motor Piston O-ring Bypass Shaft Cotter Ring NPT Lower Body BSP Lower Body 20% NPT 20% BSP 20% NPT Remote Inject 20% BSP Remote Inject Upper Shaft Pin Mixing Chamber Gasket On/Off Handle...
- Page 19 0.4% Ref. # Description of Part Kit D Kit C Kit A 011111 011110V 011109V MiniDos Outer Cylinder MiniDos 0.4% Spring Suction Tube Fitting, 1/8" O-ring Check Poppet w/Washer Kit E 011112V Gasket O-ring Suction Tube 1/8" × 3' Filter For Suction Tube 1/8" MiniDos 0.4% Inner Cylinder MiniDos 0.4% Shaft Assy Kit G...
- Page 20 Manual Description of Part Kit D Kit C Kit A 011046V 011072V 011071V Cylinder, Outer Spring Suction Tube Fitting O-ring Check Poppet w/Washer Kit E 011073V Gasket O-ring Suction Tube, ¼" X 5' Anti Lock Gasket Filter For Suction Tube, ¼" Id Inner Cylinder Kit G 011068V...
- Page 21 2.5% Ref. # Description of Part Kit A Kit B Kit C 011055V 011044V 011045V Cylinder, Outer Spring Suction Tube Fitting O-ring Check Poppet w/Washer Kit E O-ring Kit D 011089V 011057V Gasket O-ring Suction Tube, ¼" X 5' Anti Lock Gasket Filter For Suction Tube, ¼"...
- Page 22 Ref. # Description of Part Kit B Kit C Kit A 011077V 011074V 011076V Cylinder, Outer Spring Fitting, Suction Tube, 3/8" O-ring Check Poppet w/Washer O-ring Kit D Kit E Gasket 011079V 011080V O-ring Suction Tube, 3/8" X 5' Anti Lock Gasket Filter For Suction Tube, 3/8"...
- Page 23 Manual Kit C Kit B Kit A Description of Part 011084V 011083V 011082V Reference Cylinder, Outer Spring Suction Tube Fitting O-ring Check Poppet w/Washer Kit E Kit D 011087V 011085V O-ring Seal Retainer, O-ring Gasket O-ring Suction Tube, 1/2" X 5' Filter For Suction Tube, Kit G 1/2"...
- Page 24 Manual Description of Part Kit B Inner Cylinder 011849M Kit A O-ring 011105V Seal Retainer O-ring (Retainer Quad Ring) O-ring Dosage Piston Shaft Assy Klipring Kit C 011106V Hose Kit Outer Cylinder O-ring O-ring Adapter Remote Adapter Kit H Kit M Dosage Piston Guide 011662UPS 011732...
- Page 25 Accessories Twist II Clean Inline Filter ® Available In: 3/4" - 25 gpm (95 l/mn) 100 psi (7 bar) 1" - 39 gpm (114 l/mn) 100 psi (7 bar) 1.5” - 78 gpm (295 l/mn) 100 psi (7 bar) 2" - 150 gpm (568 l/mn) 100 psi (7 bar) * Various mesh sizes available.
- Page 26 North America 3798 Round Bottom Road, Cincinnati, Ohio, 45244 Phone 513.271.8800 Toll Free 800.543.7184 Fax 513.271.0160 Web hydrosystemsco.com Europe Unit 3 The Sterling Centre, Eastern Road, Bracknell, Berkshire, RG12 2PW Phone +44 (0)1344 488880 Fax +44 (0)1344 488879 Web hydrosystemseurope.com South America Rua Mogiana, 172 Chácaras Reunidas, São José...
