ControlOMatic MINIWARDEN Installation Manual

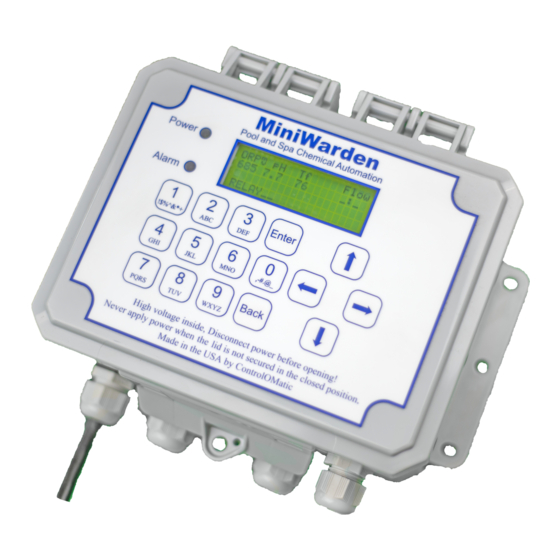

Automated pool & spa chemical controller and data recorder
Hide thumbs Also See for MINIWARDEN:
Table of Contents

Advertisement

Quick Links

M
W
INI
ARDEN
Automated Pool & Spa Chemical Controller
And Data Recorder
Installation Manual
Including
MW-Plus and TrueDPD
ControlOMatic, Inc.
12659 Arbor Lane, Grass Valley, CA 95949
(530) 205-4520 • www.controlomatic.com • www.poolwardentraining.com
Manuals also available at:
https://www.controlomatic.com/support/documents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINIWARDEN and is the answer not in the manual?

Questions and answers

Related Manuals for ControlOMatic MINIWARDEN

Summary of Contents for ControlOMatic MINIWARDEN

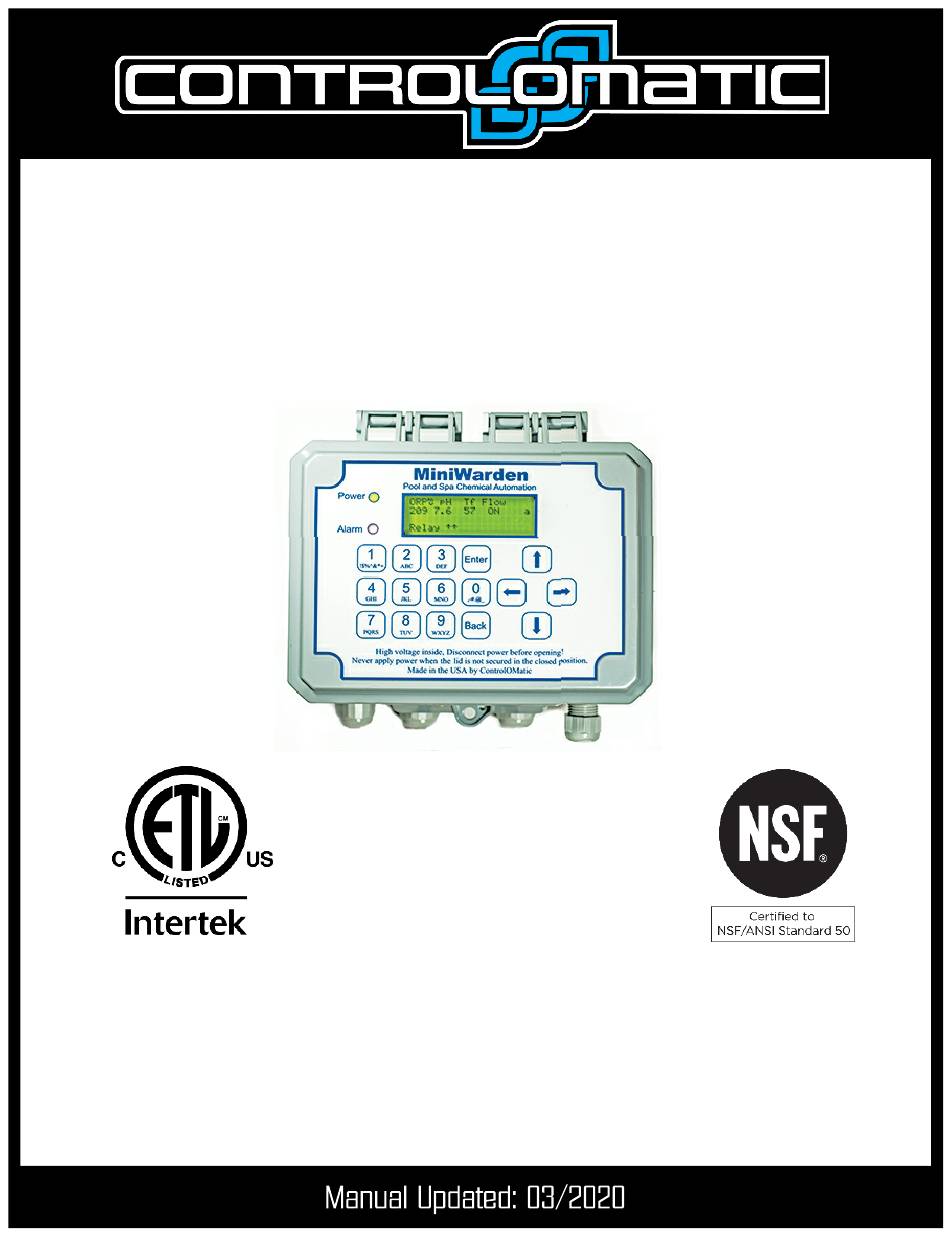

  • Page 1 ARDEN Automated Pool & Spa Chemical Controller And Data Recorder Installation Manual Including MW-Plus and TrueDPD ControlOMatic, Inc. 12659 Arbor Lane, Grass Valley, CA 95949 (530) 205-4520 • www.controlomatic.com • www.poolwardentraining.com Manuals also available at: https://www.controlomatic.com/support/documents...

  • Page 2: Table Of Contents

    Load / Equipment Connection & Installation Relay Board Acronyms for ORP & pH 120 VAC Relays ORP Dry Contact Relay Supported Auxiliary Dry Contact Loads/Equipment: MINIWARDEN PLUS - Option TRUEDPD FREE CHLORINE SENSOR - Option TrueDPD Replacement Parts MINIWARDEN REPLACEMENT PARTS MiniWarden Manual •...

  • Page 3: Important Warning And Safety Instructions

    The GFCI must be tested before each use. With the MiniWarden on and operating, push the test button on the GFCI and the MiniWarden should turn off. Now push the reset button on the GFCI and the MiniWarden should now operate normally.
  • Page 4 – Disconnect all power to MiniWarden prior to any service including the main AC power. Never apply power when MiniWarden service door is unlocked or in the open position. Only qualified and licensed technicians should perform any service or repair.

  • Page 5: Miniwarden Overview

    � COMMUNICATION: MiniWarden can connect to the Internet for direct monitoring, setup, and data interface by adding the PW-Plus communication module which adds WIFI and Ethernet. � DATA: MiniWarden will record up to 8192 lines of data with the built in internal memory. There is no limit when adding the PW-Plus communication device �...

  • Page 6: Maximum Electrical Specifications

    Pollution Pollution Degree Certifications 4010758 NSF/ANSI 50 - Equipment for Swimming Pools, Spas, Conforms to Hot Tubs and Other UL STD 1563 Recreational Water Facilities Certified to CSA STD http://info.nsf.org/Certified/Pools/Listi ngs.asp?Company=C0214550&Stan C22.2 No. 218.1 dard=050& MiniWarden Manual • 530-205-4520 •...

  • Page 7: Models And Options

    Models and Options ITEM DESCRIPTION MW: MiniWarden Controller Only with no sensors or flow cell. MW-MTD Controller including flow cell, sensors and pre-mounted on back board. MW+MTD Add the PW-Plus communication module MW-FAC Adds free chlorine measurement using the TrueDPD DPD colorimetric method.

  • Page 8: Miniwarden Installation

    (C Below). The Flow cell input and output points before and after the filter provide the greatest pressure differential (see below). MiniWarden is equipped with a strainer to filter out any debris from the unfiltered water. Periodically check and clean the strainer.
  • Page 9 To reduce pressure, perform the same exercise, but now open the shut-off valve slowly and stop when you see the magnet “slowly” raise to make connection with the flow sensor. Leave the shut-off valve in that position. MiniWarden Manual • 530-205-4520...

  • Page 10: Sensor Wire Connections

    MiniWarden or as indicated below in PICTURE 3. Please Note: Black wires are always negative (-) and the Clear or Red wires are always positive (+).

  • Page 11: Supply 110/240 Vac Input Selection

    The MiniWarden supports both 110 VAC and 240 VAC. For 110 VAC the power cord includes a GFCI on the end of the cord that plugs in. For 240 VAC the cord should be removed and the MiniWarden should be hardwired to a circuit breaker with a GFCi by a licensed electrician. The cord can be returned to ControlOMatic for a credit.

  • Page 12: Orp Dry Contact Relay

    24 VAC. Install a 24 VAC Transformer external to the MiniWarden and connect one of the output leads to the Line connection of the ORP relay and connect the Neutral connection of the ORP relay to the solenoid as shown in PICTURE 5.

  • Page 13: Miniwarden Plus - Option

    When adding the PW-Plus module some steps are required to activate it. When included with the MiniWarden it will already be activated. � Step 1: Install the PW-Plus module, make sure the MiniWarden is unplugged and off. � Step 2: Connect the +5 power connector and the interface connector.

  • Page 14: Truedpd Free Chlorine Sensor - Option

    Attach to the wall with 4 screws. The TrueDPD must be located close to the flow cell for the 2 foot tube to reach. When ordering the MiniWarden mounted with the TrueDPD it will be pre-installed as shown in the picture.

  • Page 15: Truedpd Replacement Parts

    Injector assembly, keeps DPD separate from the sample water TrueDPD-Barbset-S Set of the tube barb fittings for single pool version, with clamps. TrueDPD-Kit-S 2’ Silicon tubing, tube barbs for single pool, injector and 2 pump tubes MiniWarden Manual • 530-205-4520 •...

  • Page 16: Miniwarden Replacement Parts

    MiniWarden Replacement Parts Item Part Number Type Description ORP-COMP Sensor ORP Sensor, platinum band, red sensor body ORP-COMG Sensor ORP Sensor, gold disk for salt water chlorinators PH-COM1 Sensor PH Sensor, blue sensor body PW-T10K-3ft Sensor Temperature sensor, 3 foot cable...
  • Page 17 MiniWarden Manual • 530-205-4520 •...
