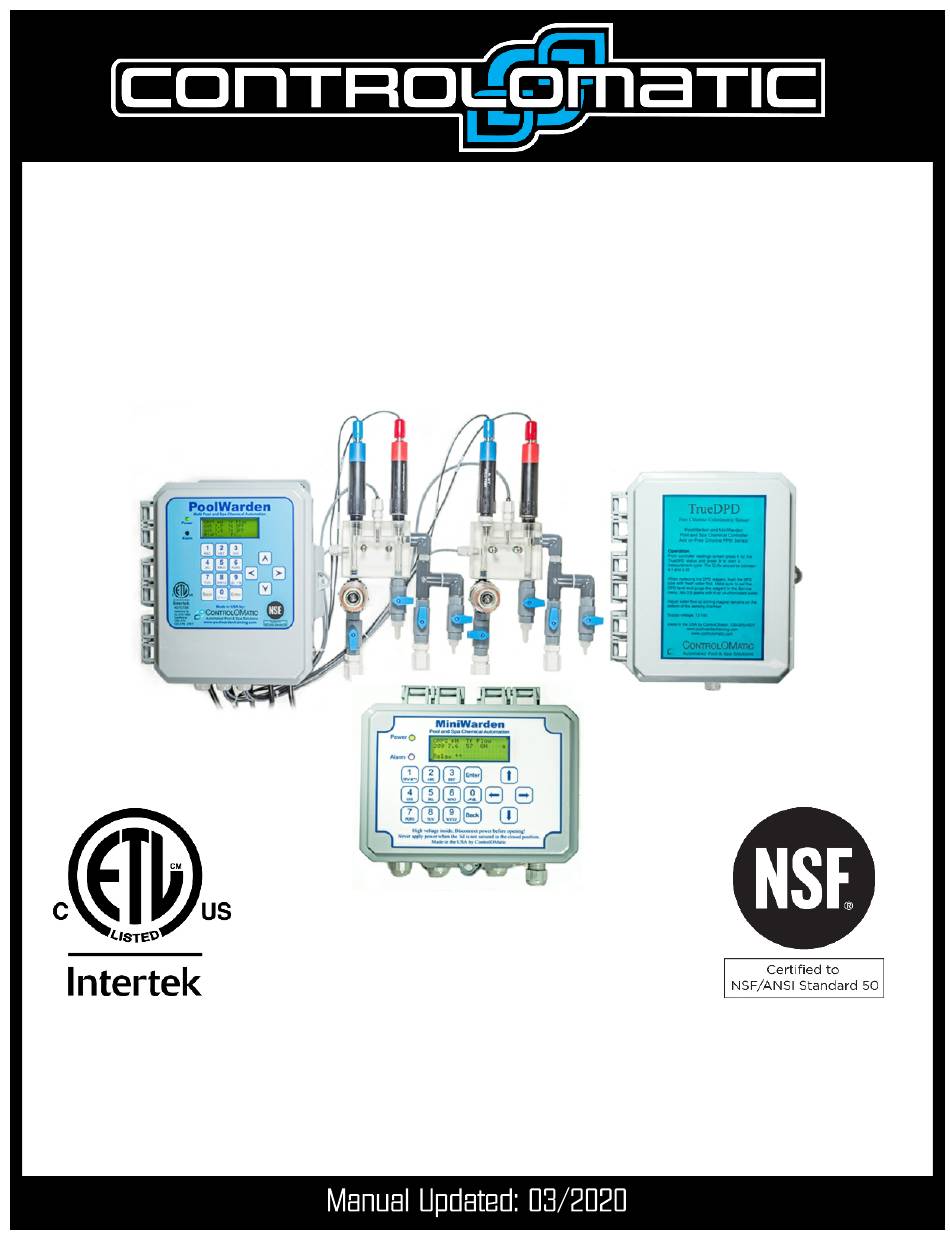

ControlOMatic POOLWARDEN Plus Operation Manual

Automated pool & spa chemical controller with wifi, ethernet, bluetooth, hdmi & usb
Hide thumbs
Table of Contents

Advertisement

Quick Links

P
W
OOL
ARDEN Plus
M
W
INI
ARDEN Plus
Automated Pool & Spa Chemical Controller
With WiFi, Ethernet, Bluetooth, HDMI & USB
Operation Manual
ControlOMatic, Inc.
12659 Arbor Lane, Grass Valley, CA 95949
(530) 205-4520 • www.controlomatic.com • www.poolwardentraining.com
Manuals also available at:
https://www.controlomatic.com/support/documents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POOLWARDEN Plus and is the answer not in the manual?

Questions and answers

Related Manuals for ControlOMatic POOLWARDEN Plus

Summary of Contents for ControlOMatic POOLWARDEN Plus

  • Page 1 ARDEN Plus ARDEN Plus Automated Pool & Spa Chemical Controller With WiFi, Ethernet, Bluetooth, HDMI & USB Operation Manual ControlOMatic, Inc. 12659 Arbor Lane, Grass Valley, CA 95949 (530) 205-4520 • www.controlomatic.com • www.poolwardentraining.com Manuals also available at: https://www.controlomatic.com/support/documents...

  • Page 2: Table Of Contents

    Table of Contents IMPORTANT WARNING AND SAFETY INSTRUCTIONS PoolWarden/MiniWarden Overview System Components PoolWarden and MiniWarden Plus Versions Maximum Electrical Specifications Environmental Specifications Certifications Models and Options PoolWarden / MiniWarden Plus Features Operation Keyboard Entering Values Default Readings Screen PoolWarden / MiniWarden Menu Structure Information Menus Handy Menu Alarm Screen...
  • Page 3 Appendix C: Maintenance Enclosure Sensor Maintenance ORP and pH Sensor Replacement Sensor Storage Cold Temperatures Technical Support Appendix D: Troubleshooting Flow not registering even though the magnet is up Alarm light is on, but the readings are OK ORP and pH readings are way off ORP and pH readings are drifting Chemical feeders are not turning on ORP varies from day to night with the same pH and free chlorine...

  • Page 4: Important Warning And Safety Instructions

    IMPORTANT WARNING AND SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING – To reduce the risk of injury, do not permit children to use this product DANGER – Risk of injury 4.1 Replace damaged cord immediately. 4.2 Do not bury cord. 4.3 Connect to a grounded, grounding type receptacle only.
  • Page 5 0.0 (no chlorine) that will not cause the sanitizer relay to turn on to prevent over-chlorination. This may happen if the DPD reagent bottle is empty. Do not dispose in trash. Please visit www.controlomatic.com for recycling information. ATTENTION: TOUJOURS VÉRIFIER L’EFFICACITÉ DU DISJONCTEUR DIFFÉRENTIEL AVANT D’UTILISER LE BAIN ATTENTION: LIRE LA NOTICE TECHNIQUE AVERTISSEMENT: DÉCONNECTER DU CIRCUIT D’ALIMENTATION...

  • Page 6: Poolwarden/Miniwarden Overview

    This operation manual covers both PoolWarden and MiniWarden and they will both be referred to as PoolWarden. The MiniWarden/PoolWarden plus version use the same software and share many of the same features. Any differences will be indicated with (PoolWarden only).

  • Page 7: Maximum Electrical Specifications

    ITEM DESCRIPTION LIMIT Input Voltage Maximum input AC voltage 240 VAC, 50-60 Hz Input Current Maximum input current 10 A Relay Voltage Maximum relay voltage 240 VAC Relay Current Maximum Relay Current 2.5 A Standby Current Maximum operating current 0.1 A Max Fuse Rating 5A, 250V, 05x20 Fuse Rating...

  • Page 8: Models And Options

    Models and Options ITEM DESCRIPTION PW–SFC Single pool PoolWarden controller with flow cell and sensors Dual Pool PoolWarden controller with flow cell and sensors pre mounted on white PW-DFC back panel Single pool PoolWarden controller with flow cell and sensors pre mounted on white PW-SMTD back panel Dual Pool PoolWarden controller with flow cell and sensors pre mounted on white...

  • Page 9: Poolwarden / Miniwarden Plus Features

    PoolWarden / MiniWarden Plus Features uses an advanced communication module that controls the operation of the system. An Internet connection is required for time, date and data functions. A Linux based operating system provides significant functionality advances including the ability to connect a computer monitor, keyboard and mouse.

  • Page 10: Operation

    Operation Keyboard This section reviews all the navigation features associated with keyboard. � Back: From the main readings display the Back button provides access to the main menu where all of the configurations are. If password protected then you will need to enter the password to access the main menu.

  • Page 11: Default Readings Screen

    Default Readings Screen PoolWarden+ Dual TrueDDPD The Default Readings Screen is displayed after power up and when a button isn’t pressed for 2 minutes. It is the most critical screen as it will PPM ORP Tf Flow display the current pH & ORP sensor readings, flow status, relay status, 1.5 681 7.7 75 1:_a alarm status and various symbols that are defined below.

  • Page 12: Poolwarden / Miniwarden Menu Structure

    PoolWarden/MiniWarden Menu Structure Simply press the Back button from the Readings Screen to gain access to the “Main Menu”. From the “Main Menu” use the Up & Down arrow keys to navigate to each sub menu item and press Enter to go to that sub menu or selection.

  • Page 13: Information Menus

    Information Menus PoolWarden has 6 information screens (handy, alarm, Langelier index, setpoint, special information and TrueDPD) which are all accessible directly from the Readings Screen. The information screens are NOT password protected. Handy Menu Press ▼ Down Arrow Enter from the default readings screen. �Daily Noon Data: Allows scrolling through the noon time readings beginning with the last recording.

  • Page 14: Alarm Screen

    Alarm Screen Press ► Right Arrow from the readings screen to access the alarm menu. The alarm screen shows all the conditions that are or will cause the alarm light to be on. If the alarm light is off and there are conditions listed in the alarm screen then the alarm delay hasn’t been reached yet.

  • Page 15: Main Menu

    Main Menu Main Menu The main menu is password protected and where all the configurations take place. Press the Back button from the readings screen. If security is enabled Service Internet a password will be required. TrueDPD Security Relays Printer Main Menu - Service Setup The Service Menu includes common items to service a pool including...

  • Page 16: Main Menu - Truedpd

    Main Menu - TrueDPD See appendix F. Main Menu - Relays Relay Setup Menu The PoolWarden Aux relays are covered in the Setup section and Appendix A. From the Readings Screen press the Back button to access the Main Menu ORP1 and select Relays.

  • Page 17: Orp1 And Orp2 Relay Configuration

    1. Calculate the total amount of chemical the pool would ever need in a 24 hour period. 2. Calculate the amount of time it would take the feed-pump to inject that total amount of chemical in a 24 hours. Example: Limit to 1 gallon with a 10 Gallon Per Day (GPD) Fixed Rate Peristaltic Pump.

  • Page 18: Alarm 1 And 2 Setup

    � MinTimeOff 00:05:00: This is the total amount the relay will be OFF in the off part of the cycle and is part of the mixing time. This command can’t be disabled. � PPM High Limit 0.0: Prevents feeding sanitizer if the PPM reading reaches a high value. �...
  • Page 19 � PPM-: Setpoint - 1.0: The alarm will turn on if the sensor is less than the PPM setpoint - the value. Press Enter to cycle between 0.0, 0.5, 1.0, 1.5, 2.0, 2.5 and 3.0. � pH+: Setpoint + 0.4: The alarm will turn on if the sensor is greater than the pH setpoint + the value. Press Enter to cycle between 0.0, 0.1, 0.2, 0.3, 0.4 and 0.5.

  • Page 20: Main Menu - Cyanuric Acid - Cya

    Main Menu - Cyanuric Acid - CYA ORP Is effected by cyanuric acid and during the day the ORP measurement will drop and at night it will go up for the same chlorine and pH level if there is CYA - Single Pool cyanuric acid in the water.

  • Page 21: Main Menu - Security

    Software Update Software updating in the field is supported with an Internet connection. Software Update Other methods include replacing the Micro SD hard drive or a memory PoolWarden Ver 1.95 stick in a USB port. Date 05/08/18 � Select Check for Updates: Press the Enter button. _Check for Updates �...

  • Page 22: Main Menu - Setup

    Main Menu - Setup PoolWarden Setup no PPM The Setup Menu is where many of the main operating system features are Units: English turned on or off. Please review and set each item according to your needs. Pools: 2 (Dual) �...

  • Page 23: Appendix A: Auxiliary Relays (Poolwarden Only)

    Appendix A: Auxiliary Relays (PoolWarden Only) The two auxiliary relays per pool can be used to control Heaters, Circulation Pumps, Water Levelers, Back Up Sanitizers, etc. Please note that both Auxiliary Relays can also manage the same standard pH and ORP control types that the main pH and ORP relays can manage.

  • Page 24: Alarm Out Control Type

    Alarm Out Control Type Alarm Out is where an external alarm can be connected to an Auxiliary Relay. This may be needed in cases where a more pronounced sound or light is needed. � On if Alarm On - Yes: When set to Yes the Aux relay will be on if the alarm light is on.

  • Page 25: Feed Daily Control Type

    � Off If Time < 00:00:00: This command will keep the relay off if the time of day is less than the value. Leave this at 00:00:00 if it doesn’t matter the time of day to add water. � Off If Time > 00:00:00: This command will keep the relay off if the time of day is greater than the configured time setting.

  • Page 26: Appendix B - Cycle Vs Mixing Times

    Appendix B: Cycle Times vs. Mixing Times Mixing Time Control A variable on time and a fixed off time make up the cycle. You have complete control on both of the times which makes it more flexible but there are two values to set instead of just a single value. Cycle Time Control A fixed cycle time is all that is needed.

  • Page 27: Appendix C: Maintenance

    Always drain the water from the flow cell, strainer and tubing to to flow cell to prevent damage in freezing conditions. Technical Support Please contact ControlOMatic at 530-205-4520 for sales and support. Send support emails to support@controlomatic.com. The dedicated controller website with videos, tips, documents and more is: MiniWarden/PoolWarden + (PLUS) Operation Manual •...

  • Page 28: Appendix D: Troubleshooting

    Forgot Your Password If you enabled the security feature and forgot your password all is not lost. Contact ControlOMatic with the serial number and proof of ownership and a password reset code will be provided that will clear all of the security passwords.

  • Page 29: Appendix E - Truedpd Free Chlorine Measurement Option

    Appendix E - TrueDPD Free Chlorine Measurement The TrueDPD is an option that adds a free chlorine measurement to the PoolWarden and MiniWarden. The measurement uses the DPD method and is not affected by pH, cyanuric acid, saltwater chlorine generators or any other variables that affect ORP and amperiometric sensors.

  • Page 30: Truedpd Error Screen - Option

    Liquid DPD is Lamotte 1B (P-6741) and lasts up to 90 days in heat. It is available on Amazon and for this reagent the shelf life date is important. ControlOMatic does not carry this reagent because of the shelf life. Liquid reagents from other companies will not work with the TrueDPD, only Lamotte 1B.

  • Page 31: Manual Operation

    Manual Operation The TrueDPD should be manually operated to verify correct operation after Manual Control installation and from time to time. Select Manual Control in the TrueDPD 1=DPD 9=DPD Purge menu to manually control the TrueDPD. Note that when some of the manual 2=Flow1 4=Flow2 actions are turned on, the stirring motor and green LED may turn on.

  • Page 32: Appendix F: Connecting To The Internet

    Appendix F: Connecting to the Internet The MiniWarden+ and PoolWarden+ operate using the Raspbian operating system. In most cases access to the operating system isn’t required. In the following cases access to the operating system will be needed: 1. Set a static IP address 2.

  • Page 33: Connecting With Wifi

    Connecting with WiFi The plus version includes built in WIFI and the antenna is on board. An external antenna can’t be added. When selecting the installation location verify that the controller will connect with WIFI before installing. Setting a Static IP Address If the network card supports MAC ID routing a static IP address may not be required.

  • Page 34: Connecting To The Local Data Server

    Connecting To The Local Data Server Connect using any web browser from a computer, smart phone, notepad, … When connecting for the first time you will be prompted to create the master account. Enter an email and password to create the account After login, a screen that shows the current measurements along with a field to enter a password.

  • Page 35: Remote Data Server

    If you can’t log in or don’t have an account you must contact ControlOMatic with the serial number’s of the controllers in your account. Only ControlOMatic can make a new account. If the controller is supplied by a dealer of ControlOMatic, ask your dealer to make you a log in account.

  • Page 36: Pwconfig Screen

    � Month Plot: Graphical plot of the data for the month. The plot includes the minimum and maximum sensor value for each sensor � Relay On Times: Lists the monthly on time for each relay. May also include a link to the cost view, if a dollar amount has been entered for each relay for an hour of on time �...
  • Page 37 � Alarm Settings Hours: Enter a start and end hour to limit the time for sending emails and texts. If the pool is off at night there may not be a need to get alarms during that time. � IMPORTANT: Skip Cycles: - when an alarm condition is met and emails and texts have been sent enter the number of future measurements to not send emails or texts on.

  • Page 38: Limited Warranty

    Models: This warranty applies to PoolWarden referenced here as “Controller”. ControlOMatic, Inc. Warrants the controller to to be free from defects in manufacturing and workmanship for a period of Five (5) Years from the date of manufacture for the electronic main circuit board.
