BEFORE YOU BEGIN
Read these instructions completely and carefully.
Save these instructions for future use.
WARNING
Risk of electrical shock. Disconnect power before servicing or
installing product.
Install in accordance with National Electric Code and local codes.

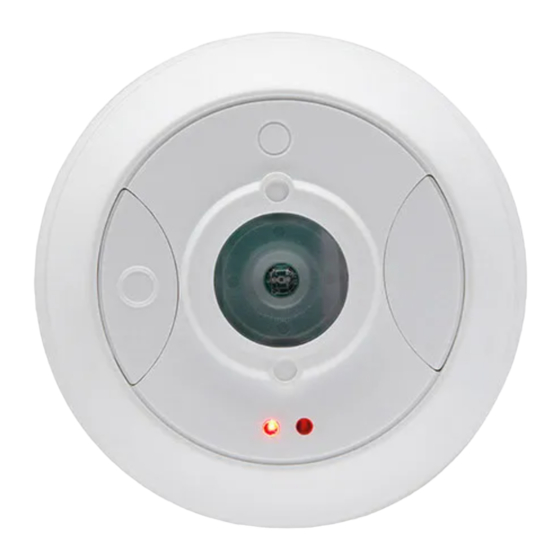

The WPS1 Wireless Photosensor is a battery powered light sensor
that transmits and receives wireless messages in the Daintree
Networked Wireless Controls platform. It is intended to be mounted
to the ceiling, to measure the light level in the space. No wiring,
adjustment or calibration is needed.
As part of the Daintree Networked system and using open, standards
based ZigBee wireless communications, the WPS1 reports real-time
light measurements. Designed to work with the Daintree Networked
daylight harvesting solution, the WPS1 enables automatic and
continuous adjustment of electric light levels to auto-defined or
user-defined setpoints.
• Suitable for many applications: office, retail, education, etc.
• Ceiling surface mount, completely wireless installation.
Wireless
CAUTION
Risk of injury. Wear safety glasses and gloves during installation and
servicing.
1

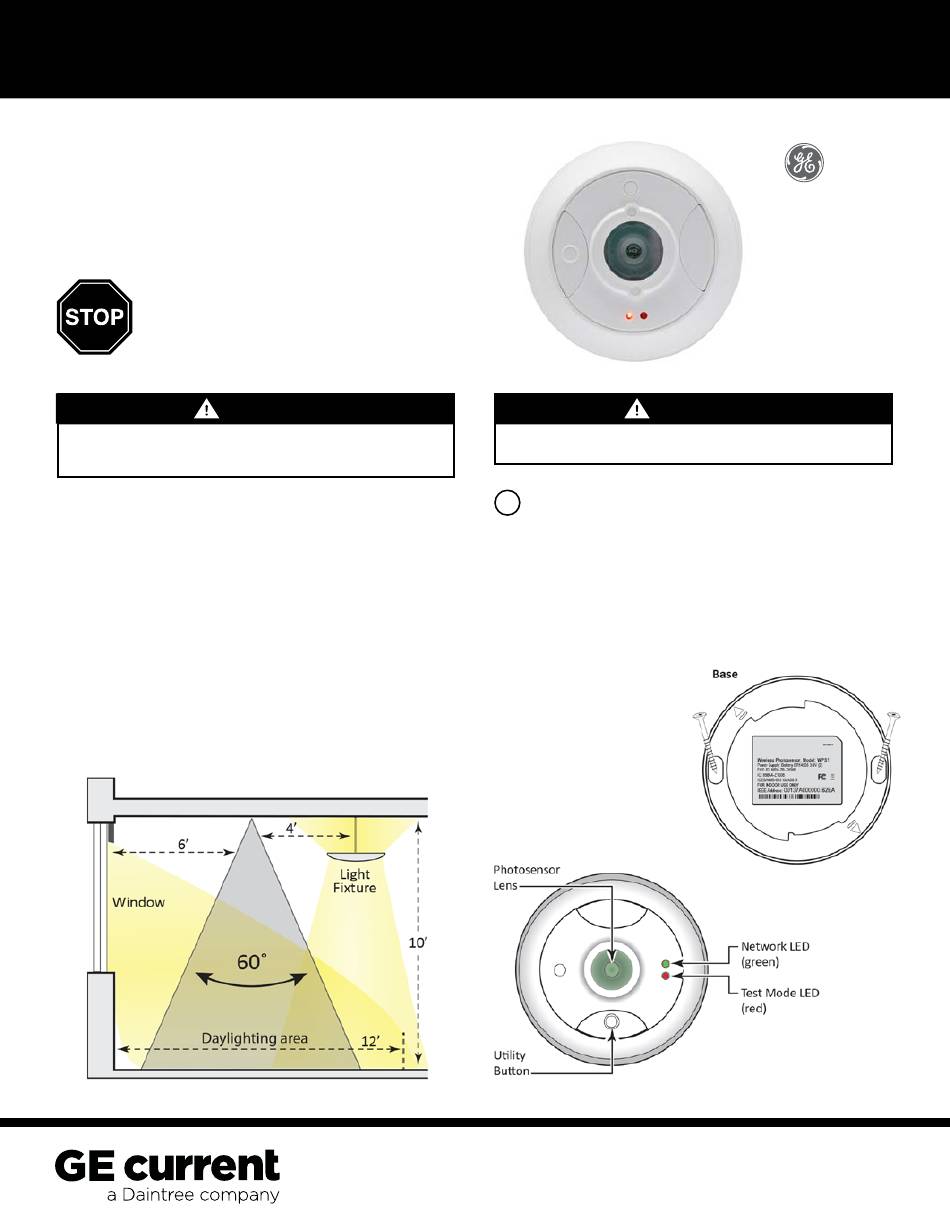

Installation Process
1. Determine the mounting location for the sensor based on day
light avaliability and task area. See Placement for details.
2. Remove the sensor from the base by twisting it. Locate the
sensor's IEEE address on the label inside the base. Record the
sensor's IEEE address in its local on on the facility floor plan.
3. Attach the mounting base to the ceiling in the specified location.
Be sure the label is visible after mounting the base.
4. Install the batteries in the
orientation (+ -) shown on
the bottom of the battery
compartments.
5. Secure the sensor to the
ceiling by twisting it onto
the base.
Installation Guide
WPS1 | DT105
