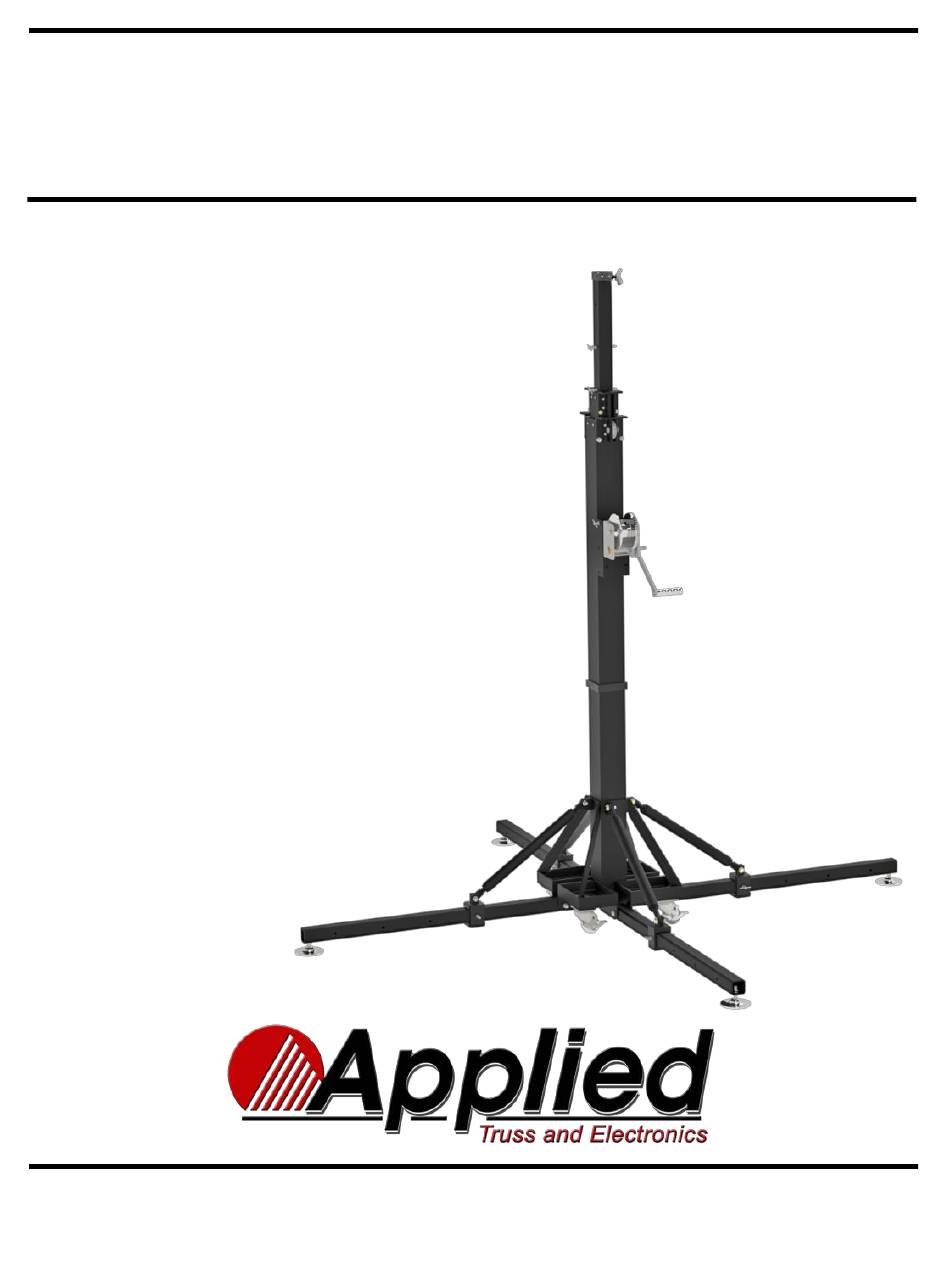

Applied L-16 Mobile Series
➢
Three Section 16' Hand Winch Lift
➢
Certified Load: 500 lbs. at any height
➢
Loading Height: 6-1/2'
➢
Maximum Lift Height: 16'
➢
Footprint: 92"
➢
Folded Dimensions: 16" x 18" x 81"
➢
Weight: 125 lbs.
➢
Cable: 3/16" Steel
722 Blue Crab Road
Operation Manual
Hand Winch Lifts
Newport News
800-883-0008
VA
www.appliednn.com
November 2019
23606

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-16 Mobile Series and is the answer not in the manual?

Questions and answers

Related Manuals for Applied L-16 Mobile Series

Summary of Contents for Applied L-16 Mobile Series

  • Page 1 November 2019 Operation Manual Applied L-16 Mobile Series Hand Winch Lifts ➢ Three Section 16’ Hand Winch Lift ➢ Certified Load: 500 lbs. at any height ➢ Loading Height: 6-1/2’ ➢ Maximum Lift Height: 16’ ➢ Footprint: 92” ➢ Folded Dimensions: 16” x 18” x 81”...

  • Page 3: Operator Safety Instructions

    Do not use unit outside in thunder, caution decals and a legible Operators lightning or severe weather. Manual. Contact Applied if any of these items are missing. Do not misuse the unit. Perform only the functions for which the unit is designed.

  • Page 4: Assembling The Lift

    ASSEMBLING THE LIFT 1. WINCH INSTALLATION The L-16 Mobile lift and winch assembly Figure 1 are packaged separately. The lift is shipped with the steel cable installed. Take care when removing the winch from the carton as other small parts are packaged with the winch.

  • Page 5: Operating Procedure

    OPERATING PROCEDURE Lock all four caster wheel locks. (See multiple lifts being used locking caster detail, Figure 14) simultaneously, all lifts must be raised evenly. The central mast is the main load supporting element. Three safety pins are provided for use when raising and lowering the lift.
  • Page 6 The proper cable for this application is Applied Electronics dealer network. supplied, but it is up to you to inspect and maintain it regularly. Individually push the 2” and the 3” tubes...

  • Page 7: Cable Routing

    CABLE ROUTING Figure 5 Figure 6...
  • Page 8 WINCH PARTS BREAKDOWN ITEM PART DESCRIPTION Base 404900 Bushing 204012 “E” Ring 205116 Drive Shaft 306061 Spring 204364 Handle 9-3/8” 5703103 205033 Pressure Plate 204362 Ratchet Wheel 404164 Pressure Washer 404163 Bushing 206328 205316 Bolt 205332 Rope Clamp Kit 5243506 Gear Cover “G”...
  • Page 9 L-16 MOBILE REPLACEMENT PARTS L-16 MOBILE TOP MAST PARTS SHEET Figure 7 Figure 8 ITEM REFER. DESCRIPTION SIZE L-16M 2” Mast Top Mast 90-112 Lower Bushing 3/8” x 1-7/8” 91-334 Sheet Metal Screw #8 x 1/2” Lg. 91-066 Cable Pulleys 2-1/2”...
  • Page 10 L-16 MOBILE REPLACEMENT PARTS L-16 MIDDLE MAST PARTS SHEET Figure 9 Figure 10 ITEM REFER. DESCRIPTION SIZE L-16M 3” Mast Middle Mast 90-113 Pin - Slotted Roll 5/32” x 3/4” Pin 91-304 Pin - Clevis 1/2” x 1-1/2” 91-310 SAE Hex Nut - Nylock 5/16”-18 Thread 91-063 SAE Hex Cap Bolt...
  • Page 11 L-16 MOBILE REPLACEMENT PARTS L-16 BOTTOM MAST PARTS SHEET Figure 11 ITEM REFER. DESCRIPTION SIZE L-16M 4” Mast & Base 90-114M L-16M Leg 92-500M L-16M Foot 4” dia. 91-025M SAE Hex Cap Bolt, Grd 5 3/8”-16 x 3-1/2” 91-005 SAE Hex Nut - Nylock 3/8”-16 Thread 91-060 Leg Pin - T-Handle...
  • Page 12 L-16 MOBILE DETAIL Figure 14 Figure 15...
  • Page 13 L-16 MOBILE DETAIL Figure 16 Figure 17 Figure 18...
