Applied L-16 Series Operation Manual

Hand winch lifts
Hide thumbs Also See for L-16 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
➢

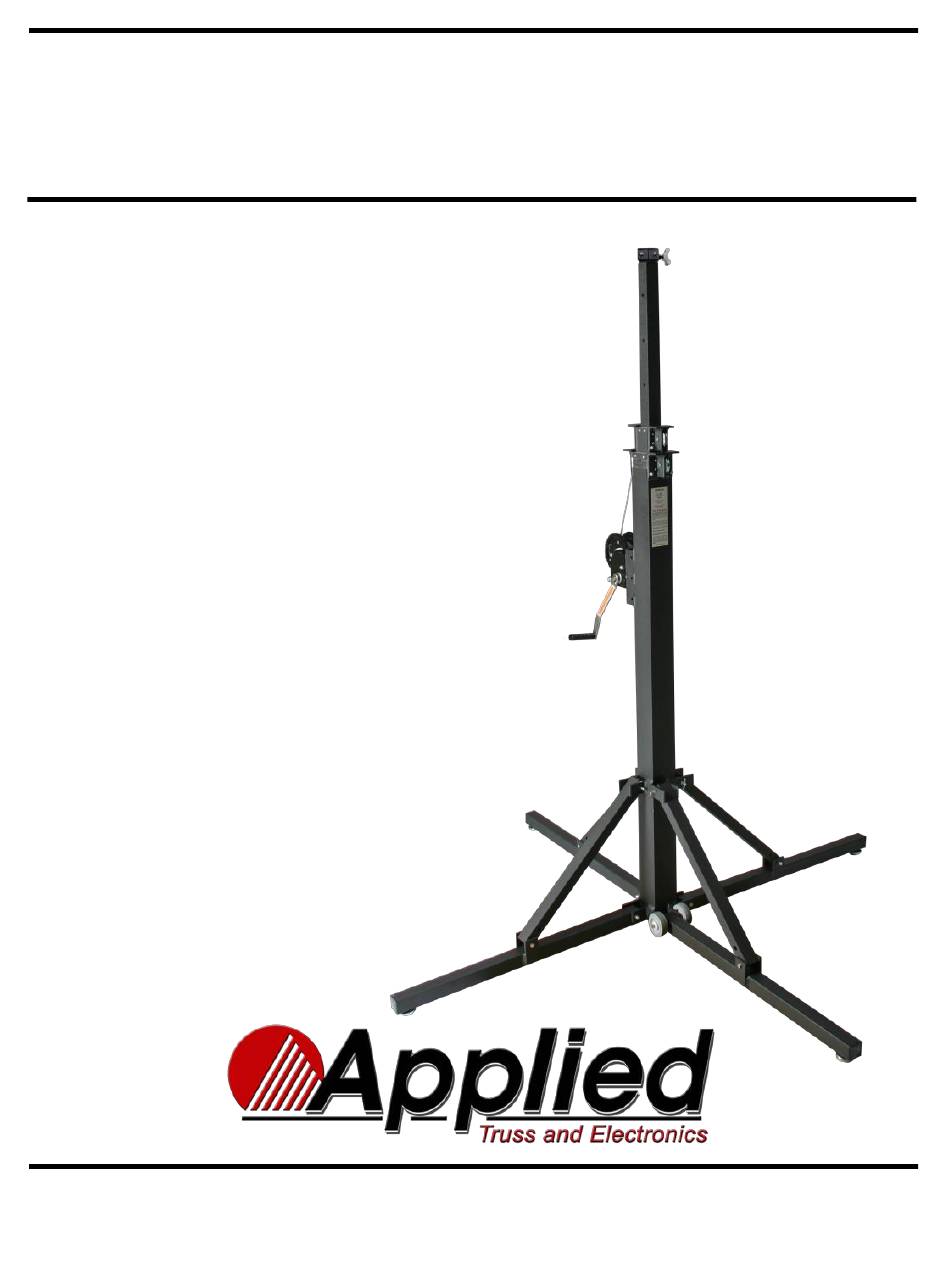

Three Section 16' Hand Winch Lift
➢
Certified Load: 500 lbs. at any height
➢
Loading Height: 6-1/2'
➢
Maximum Lift Height: 16'
➢
Footprint: 84"
➢
Folded Dimensions: 12.5" x 12.5" x 77"
➢
Weight: 95 lbs.
➢
Cable: 3/16" Steel
722 Blue Crab Road
Operation Manual
Applied L-16 Series
Hand Winch Lifts
800-883-0008
Newport News
VA
www.appliednn.com
November 2019
23606

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-16 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Applied L-16 Series

Summary of Contents for Applied L-16 Series

  • Page 1 November 2019 Operation Manual Applied L-16 Series Hand Winch Lifts ➢ Three Section 16’ Hand Winch Lift ➢ Certified Load: 500 lbs. at any height ➢ Loading Height: 6-1/2’ ➢ Maximum Lift Height: 16’ ➢ Footprint: 84” ➢ Folded Dimensions: 12.5” x 12.5” x 77”...

  • Page 3: Operator Safety Instructions

    Each unit should have a complete set of unit or moving unit to and from the event caution decals and a legible Operators site. Manual. Contact Applied if any of these items are missing. Do not use unit to support ladders, for climbing, hoisting or people moving.

  • Page 4: Assembling The Lift

    ASSEMBLING THE LIFT 1. WINCH INSTALLATION The L-16 lift and winch assembly are Figure 1 packaged separately. The lift is shipped with the steel cable installed. Take care when removing the winch from the carton as the lift leveling feet and other small parts are packaged with the winch.

  • Page 5: Operating Procedure

    OPERATING PROCEDURE Remove locking pin holding each leg in multiple lifts being used the folded position. Fold the legs down simultaneously, all lifts must be raised and re-insert locking pins through the leg evenly. braces. Three safety pins are provided for use The central mast is the main load when raising and lowering the lift.
  • Page 6 The proper cable for this application is Applied Electronics dealer network. supplied, but it is up to you to inspect and maintain it regularly. Individually push the 2” and the 3” tubes...

  • Page 7: Cable Routing

    CABLE ROUTING Figure 5 Figure 6...
  • Page 8 WINCH PARTS BREAKDOWN ITEM PART DESCRIPTION Base 404900 Bushing 204012 “E” Ring 205116 Drive Shaft 306061 Spring 204364 Handle 9-3/8” 5703103 205033 Pressure Plate 204362 Ratchet Wheel 404164 Pressure Washer 404163 Bushing 206328 205316 Bolt 205332 Rope Clamp Kit 5243506 Gear Cover “G”...

  • Page 9: Replacement Parts

    L-16 REPLACEMENT PARTS L-16 TOP MAST PARTS SHEET ITEM REFER. DESCRIPTION SIZE L-16 2” Mast Top Mast 90-112 Lower Bushing 3/8” x 1-3/4” 91-334 Sheet Metal Screw #8 x 1/2” 91-066 Cable Pulleys 2-1/2” 91-024 Pin - Clevis 1/2” x 1-1/2” 91-310 Pin - Slotted Roll 5/32”...
  • Page 10 L-16 REPLACEMENT PARTS L-16 MIDDLE MAST PARTS SHEET ITEM REFER. DESCRIPTION SIZE L-16 3” Mast Middle Mast 90-113 Pin - Slotted Roll 5/32” x 3/4” 91-304 Pin - Clevis 1/2” x 1-1/2” 91-310 SAE Hex Nut - Nylock 5/16”-18 Thread 91-063 SAE Hex Cap Bolt 5/16”-18 x 4”...
  • Page 11 L-16 REPLACEMENT PARTS L-16 BOTTOM MAST PARTS SHEET ITEM REFER. DESCRIPTION SIZE L-16 4” Mast Bottom Mast 90-114 L-16 Leg Leg Assembly 92-500 L-16 Outrigger Leg Brace/Outrigger 92-501 L-16 Threaded Leg Insert 1-3/4” x 1-3/4” x 3/4” 92-504 L-16 Screw Foot 3/8”-16 Threaded Leveler 91-025a Leg Pin - T-Handle...
  • Page 12 L-16 REPLACEMENT PARTS L-16 BOTTOM MAST PARTS SHEET continued...
  • Page 13 L-16 HAND WINCH LIFT DETAIL...
