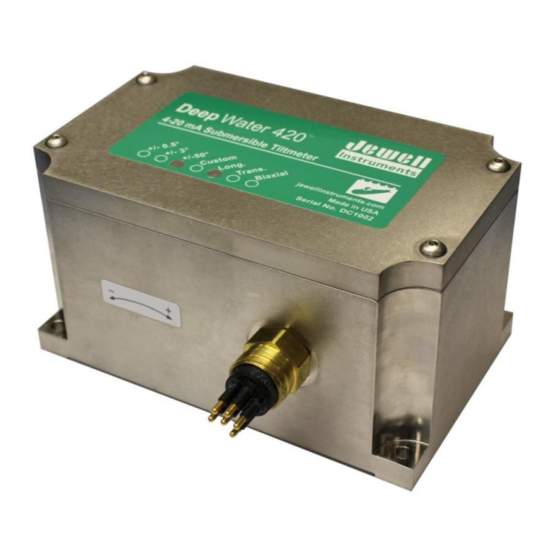

JEWELL DeepWater 802 User Manual

Submersible tiltmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL
DeepWater
MODEL 802 SUBMERSIBLE
TILTMETER
Serial No.________________
850 Perimeter Road
Manchester, NH 03103 USA
Tel (603) 669-6400
Fax (603) 622-2690
e-mail: sales@jewellinstruments.com
www.jewellinstruments.com
WARNING!
NEVER USE AN OHMMETER TO MEASURE THE TILT SENSORS INSIDE THE TILTMETER. APPLYING
DC CURRENT THROUGH THE SENSORS WILL CAUSE PERMANENT DAMAGE THAT IS NOT
COVERED BY THE WARRANTY.
Copyright ©2013 by Jewell Instruments LLC. All rights reserved.
Manual No. B-03-1004, Rev. F. Printed in USA.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DeepWater 802 and is the answer not in the manual?

Questions and answers

Related Manuals for JEWELL DeepWater 802

Summary of Contents for JEWELL DeepWater 802

  • Page 1 NEVER USE AN OHMMETER TO MEASURE THE TILT SENSORS INSIDE THE TILTMETER. APPLYING DC CURRENT THROUGH THE SENSORS WILL CAUSE PERMANENT DAMAGE THAT IS NOT COVERED BY THE WARRANTY. Copyright ©2013 by Jewell Instruments LLC. All rights reserved. Manual No. B-03-1004, Rev. F. Printed in USA.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ........................ 1 2. Technical Features ..................... 1 3. Specifications ......................2 4. Tiltmeter Operations ....................3 Initial Check-Out Procedures .................. 3 Tiltmeter Installation ....................3 Recording Tiltmeter Data with External Recorders ..........3 5. Converting Voltage Readings to Tilt Angles and Temperatures ......4 6.

  • Page 3: Introduction

    All resistors are premium quality, 1% tolerance, metal-film type. All tiltmeters are assembled, calibrated and tested at our plant under strict quality standards. Jewell Instruments maintains complete calibration and test records of every tiltmeter built. B-03-1004, Rev. F – Model 802...

  • Page 4: Specifications

    Specifications Model 802-H Model 802-S Model 802-W High-Gain Version Standard Version Wide-Angle Version ANGULAR RANGE ±0.5 degrees ±3 degrees ±50 degrees* 0.1/ Volt (single-ended) 0.6/ Volt (single-ended) 10/ Volt (single-ended) SCALE FACTORS 0.05/ Volt (differential) 0.3/ Volt (differential) 5/ Volt (differential) RESOLUTION <0.0001 degree (<1.75 radians) <0.0006 degree (10.5 radians)

  • Page 5: Tiltmeter Operations

    0.1C/mV. If your results do not conform to these guidelines, check your procedure and repeat the measurement sequence above. If you are still unable to successfully complete the check-out procedure, contact Jewell Instruments for assistance. Tiltmeter Installation...

  • Page 6: Converting Voltage Readings To Tilt Angles And Temperatures

    Converting Voltage Readings to Tilt Angles and Temperatures The tiltmeter voltage outputs are quickly converted to tilt angles as follows: Multiply the voltage reading by the scale factor in Appendix A. For example, if the scale factor is 0.600 degree/Volt and the voltage reading is +2.000 Volts, then the tilt angle is +1.200 degrees from sensor null.

  • Page 7: Connector Maintenance

    Apart from the procedures described below, your Model 802 tiltmeter is not field serviceable. If you encounter problems not described here, please contact Jewell Instruments at telephone (603) 669-6400, fax (603) 622-2690 or email us at sales@jewellinstruments.com. A sales representative will assist you in determining the cause of any problem.

  • Page 8: Warranty And Assistance

    After expiration of the warranty, JEWELL will repair the equipment at its factory for parts and labor charges. Products returned after warranty expiration should be accompanied by a purchase order to cover repair costs.

  • Page 9: Figure 1. Model 802 Deepwater Tiltmeter

    DeepWater Figure 1. Model 802 Tiltmeter DeepWater Figure 2. Model 802 Tiltmeter with Connector and Cable Whip B-03-1004, Rev. F – Model 802 DeepWater Submersible Tiltmeter...

  • Page 10: Figure 3. High-Pressure Connector And Cable Whip

    Neoprene connector Delrin locking sleeve Figure 3. High-Pressure Connector and Cable Whip Figure 4. Tiltmeter with Bi-Axial Tilt Configuration B-03-1004, Rev. F – Model 802 DeepWater Submersible Tiltmeter...

  • Page 11: Figure 5. Tiltmeter With Logitudinal Tilt Configuration

    Figure 5. Tiltmeter with Transverse Tilt Configuration Figure 6. Tiltmeter with Transverse Tilt Configuration B-03-1004, Rev. F – Model 802 DeepWater Submersible Tiltmeter...

  • Page 12: Figure 7. Model 802 Deepwater Dimensions In Inches (Mm)

    DeepWater Figure 7. Model 802 Dimensions in Inches (mm) DeepWater Figure 8. Model 802 Mounting Hole Pattern B-03-1004, Rev. F – Model 802 DeepWater Submersible Tiltmeter...

  • Page 13: Figure 9. Sensor Connections Inside The Model 802 Deepwater Tiltmeter

    DeepWater Figure 9. Sensor Connections Inside the Model 802 Tiltmeter B-03-1004, Rev. F – Model 802 DeepWater Submersible Tiltmeter...

  • Page 14: Appendix A. Custom Specifications For Your Equipment

    Appendix A. Custom Specifications for Your Equipment; Connectors and Wiring Note: If this page is not filled in please refer to the attached calibration sheets. Serial number:________________  Model 802-H/L [High-gain (±0.5 range), Longitudinal configuration]  Model 802-H/T [High-gain (±0.5 range), Transverse configuration] ...

  • Page 15: Filter

    = 1/(2).  = ______________seconds A.3 Connectors and Cable DeepWater Your Model 802 tiltmeter uses the following connectors: 6-Pin Subconn Part No. JEWELL Part No. Bulkhead Connector (male) MCBH6M 00357 In-Line Connector (female) on MCIL6F 00358 Cable Whip Delrin Locking Sleeve (female)

  • Page 16: A.4 Angle Conversion Chart

    8-Pin Connector MCBH8M Male Pin Wire Color in Cable Function Black Power Ground* White Signal Ground* +8 to +18 Volts DC Green Yellow (Orange) Temperature Gray Blue Brown * Signal and power grounds are common inside the tiltmeter. Figure 11. Face View of 8 Pin Male Connector A.4 Angle Conversion Chart radians degrees...

  • Page 17: Appendix B. Revision Record

    DESCRIPTION OF CHANGE DATE "Jewell" was "Applied Geomechanics" 25320 4/24/13 Added Appendix B for revision record In last line of paragraph 2., "Jewell Instruments " Page 1 25580 7/17/13 was "AGI" Pg 1: Added “The pressure rating of the tiltmeter housing is 250 bars (3,600 psi).
