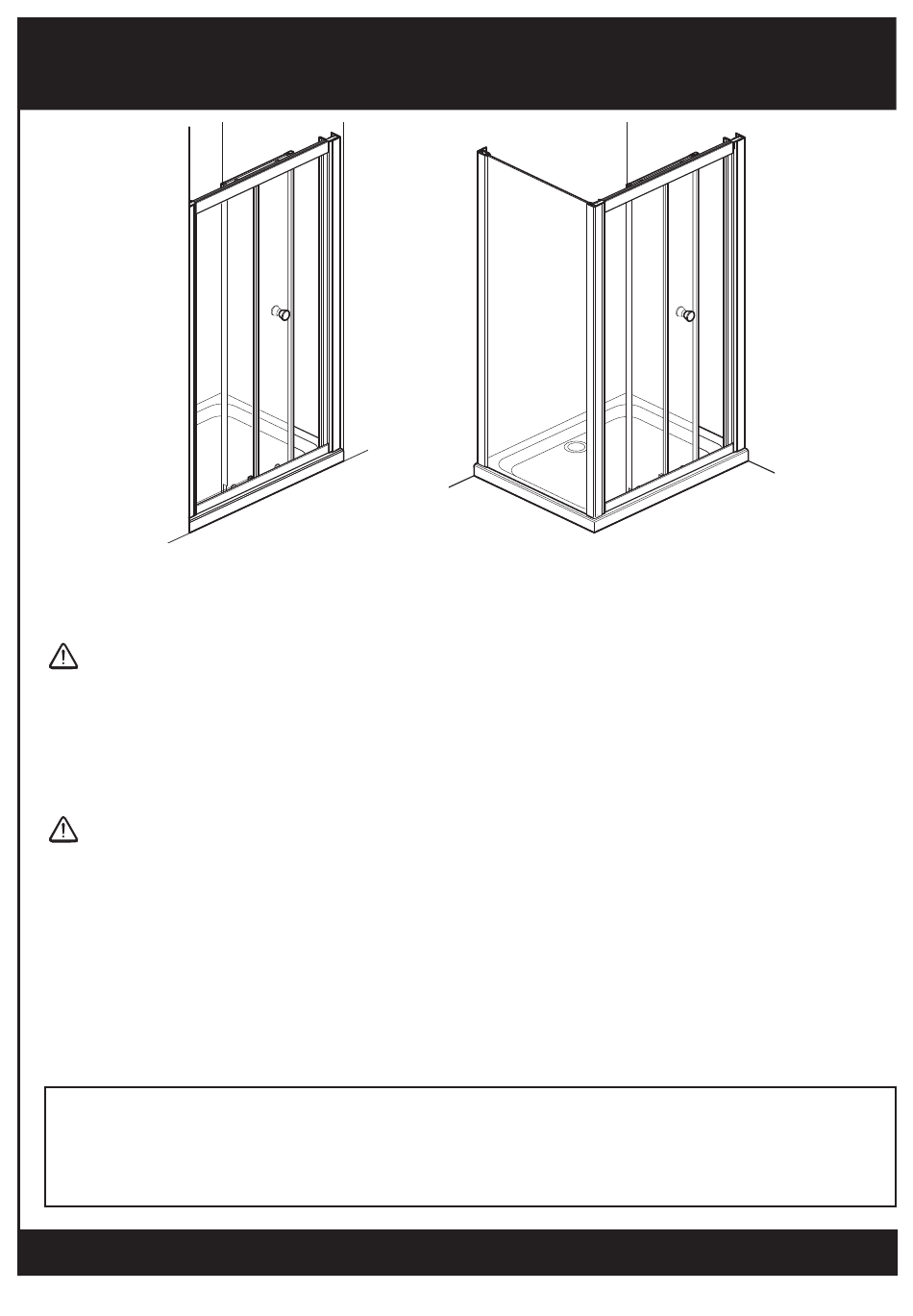

OPTIMA SLIDING DOOR
Sliding Door - Pages 2 - 8
Please read these instructions carefully and keep for future reference.
SAFETY
● Handle glass with great care.
Although the glass is very tough, sharp impacts can damage both the glass and metal frame.
● Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.
● Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
● Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.
If uneven, the wall channels may not fit and the doors may not shut correctly.
● The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
● There must be a good silicone seal between the rim of the shower tray and the wall.
● The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to
the shower tray will result in water leaks.
● Always check very carefully that components are vertical.
● To avoid damage, use the opened out packaging to build the enclosure on.
Equipment needed:
Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, 16mm Spanner, Spirit Level, Pencil,
Tape Measure, Masking Tape, Silicone Sealant.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,
use the correct type of fixings.
CUSTOMER CARELINE 01746 713410
/ SIDE PANEL
Incorrect fitting will invalidate the guarantee.
Sliding Door & Side Panel - Pages 9 - 16
00 71447 00 / Issue 5 / 13

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPTIMA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Coram Showers OPTIMA Series

  • Page 1 00 71447 00 / Issue 5 / 13 OPTIMA SLIDING DOOR / SIDE PANEL Sliding Door - Pages 2 - 8 Sliding Door & Side Panel - Pages 9 - 16 Please read these instructions carefully and keep for future reference. Incorrect fitting will invalidate the guarantee.
  • Page 2 1000 RAIL - PN80528 PN10801 Check contents of pack before installation. If anything is 1200 RAIL - PN80529 1400 RAIL - PN80530 missing, contact our Customer Careline for assistance. CUSTOMER CARELINE: 01746 713410 PN3230 PN80519 1000 = PN40261 PN3225 PN10801 1200 = PN40262 1400 = PN40263 32mm...
  • Page 3 X = Door widths 1000 = 950 - 1000mm 1200 = 1150 - 1200mm 1400 = 1350 - 1400mm Inside ø 6.5 32mm a: Place the wall channels on the tray ensuring they are vertical and an equal distance back from the front of the tray. Place masking tape against the wall before marking drill hole positions, this will help prevent the drill bit slipping.
  • Page 4 Outside face of fixed panel Outside face of fixed panel Fixed panel bracket Push fit the 'short flipper seals' onto the top and bottom Position the fixed panel into the required wall channel and edges of the fixed panel - flush against the metal profile. slide down so it fully slots onto the end moulding of the Ensure the flipper seal 'flaps' are on the inside of the bottom rail.
  • Page 5 ø 3 From inside 10mm Check the door frame is vertical and is centrally positioned between the wall channels. From inside the enclosure, in the positions shown, drill through the wall channels into the fixed panel and magnetic profiles using a 3mm drill bit, do not drill too deep! Fix using 6 x 10mm screws and screw caps.
  • Page 6 From inside Top of door Bottom of door IMPORTANT: It is advised that this stage is carried out by two people to avoid damaging the runners, rails or door. From inside the enclosure, push fit the 'runners' fitted to the top and bottom of the door, onto the 'door rollers' pre-fitted in the top and bottom rails.
  • Page 7 Fit the door handles to the door ensuring the supplied handle washers are used on each side of the glass. A chrome finish handle is supplied for all frame finish options. PN40010 Push fit the seal (PN40010) into the channel in the 'magnetic profile'. Note: The seal may need trimming to length.
  • Page 8 Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris. Periodically check all fixings and tighten if necessary. CORAM SHOWERS LTD Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK • Tel: 01746 766466 • Fax: 01746 764140 • www.coram.co.uk...
  • Page 9 1000 RAIL - PN80528 PN10801 Check contents of packs before installation. If anything is 1200 RAIL - PN80529 missing, contact our Customer Careline: 01746 713410 1400 RAIL - PN80530 PN10801 SLIDING DOOR CONTENTS PN3230 PN80519 1000 = PN40261 PN3225 1200 = PN40262 1400 = PN40263 32mm PN60014...
  • Page 10 Inside ø 6.5 32mm X = Door widths Y = Side Panel widths 1000 = 950 - 1000mm 700 = 670 - 695mm 1200 = 1150 - 1200mm 760 = 735 - 760mm 1400 = 1350 - 1400mm 800 = 775 - 800mm 900 = 875 - 900mm a: Place the wall channels on the tray ensuring they are vertical and an equal distance back from the front of the tray.
  • Page 11 a: Place the bottom rail onto the tray with its end mouldings inserted into the corner post and wall channel. b: Centre the bottom rail between the corner post and wall channel so that there is an equal gap at each end. Outside face of fixed...
  • Page 12 13mm Inside Position the 'magnetic profile' into the wall channel and slide down so that it fully Position the top rail onto the top of the 'fixed panel' and slots onto the end 'magnetic profile'. Adjust the position of the fixed panel moulding of the bracket as required.
  • Page 13 PN40258 PN40259 PN40260 Outside face of Inside door Door handle hole PN4745 Fit 'flipper seal' (PN40260) onto the edge of the fixed panel. Push fit 'flipper seal' (PN40259) onto the back edge of the door. Ensure the flipper seal 'flap' is on the inside. Ensure the flipper seal 'flap' is on the outside of the door.
  • Page 14 From inside PN50103 The 'cam adjusters' at the top and bottom of the door may need adjusting so that the door slides freely and the magnetic seal is flush against the magnetic profile when the door is closed. a: Loosen all 4 cam adjuster screws (1 turn maximum). b: Turn the cam adjusters (by hand or using a 16mm spanner) until the door hangs vertically.
  • Page 15 PN40010 Push fit the seal (PN40010) into the channel in the 'magnetic profile'. Note: The seal may need trimming to length. Note: Wetting the seal with water will help to fit the seal. 50mm From the outside only, apply sealant to the bottom of the enclosure and 50mm up the vertical joints as shown.
  • Page 16 Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris. Periodically check all fixings and tighten if necessary. CORAM SHOWERS LTD Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK • Tel: 01746 766466 • Fax: 01746 764140 • www.coram.co.uk...
