Coram Showers OPTIMA INLINE PANEL Instructions Manual

OPTIMA INLINE PANEL
Please read these instructions carefully and keep for future reference.
SAFETY
● Handle glass with great care. Although the glass is very tough, sharp impacts can damage both the
glass and metal frame.
● Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.
● Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
● Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.
If uneven, the wall channels may not fit and the doors may not shut correctly.
● The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
● There must be a good silicone seal between the rim of the shower tray and the wall.
● The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to
the shower tray will result in water leaks.
● Always check very carefully that components are vertical.
Equipment needed:
Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, Flatblade Screwdriver, Spirit Level,
Pencil, Tape Measure, Masking Tape, Silicone Sealant.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,
use the correct type of fixings.
CUSTOMER CARELINE 01746 713410
X = 700 Door (with):
1000 Inline panel 865 - 940mm
1200 Inline panel 1065 - 1140mm
1400 inline panel 1265 - 1340mm
X = 760 Door (with):
1000 Inline panel 925 - 1000mm
1200 Inline panel 1125 - 1200mm
1400 Inline panel 1325 - 1400mm
X = 800 Door (with):
1000 Inline panel 965 - 1040mm
1200 Inline panel 1165 - 1240mm
1400 Inline panel 1365 - 1440mm
Incorrect fitting will invalidate the guarantee.

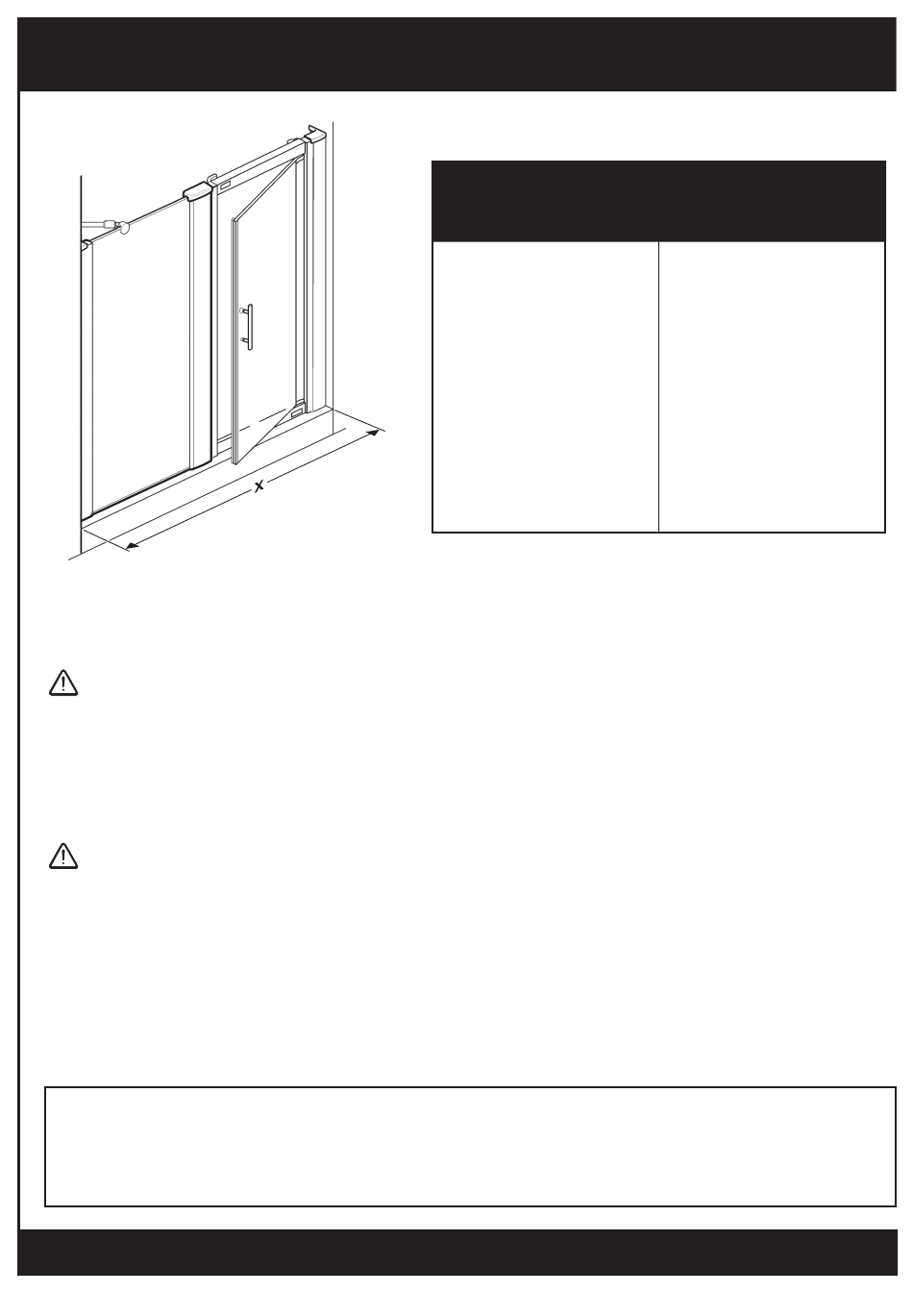

DIMENSIONS
Check the enclosure size in the table below matches the
showertray installation.
71806 00 / Issue 1 / 15
X = 900 Door (with):
1000 Inline panel 1065 - 1140mm
1200 Inline panel 1265 - 1340mm
1400 Inline panel 1465 - 1540mm
X = 1000 Door (with):
1000 Inline panel 1165 - 1240mm
1200 Inline panel 1365 - 1340mm
1400 Inline panel 1565 - 1640mm
For width with a side panel
add 3mm.
