OVERVIEW
This document lists the contents included in the box as well as the assembly instructions for this product.
Kindly take your time to identify the hardware and individual components. We highly recommend placing
the hardware and components atop a soft, carpeted and/or padded surface to protect the product and your
property during assembly.
QUESTIONS?
Missing hardware or require further assistance for assembly? Email us at support@noahome.com. We're always
here to help.
noahome.com
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS

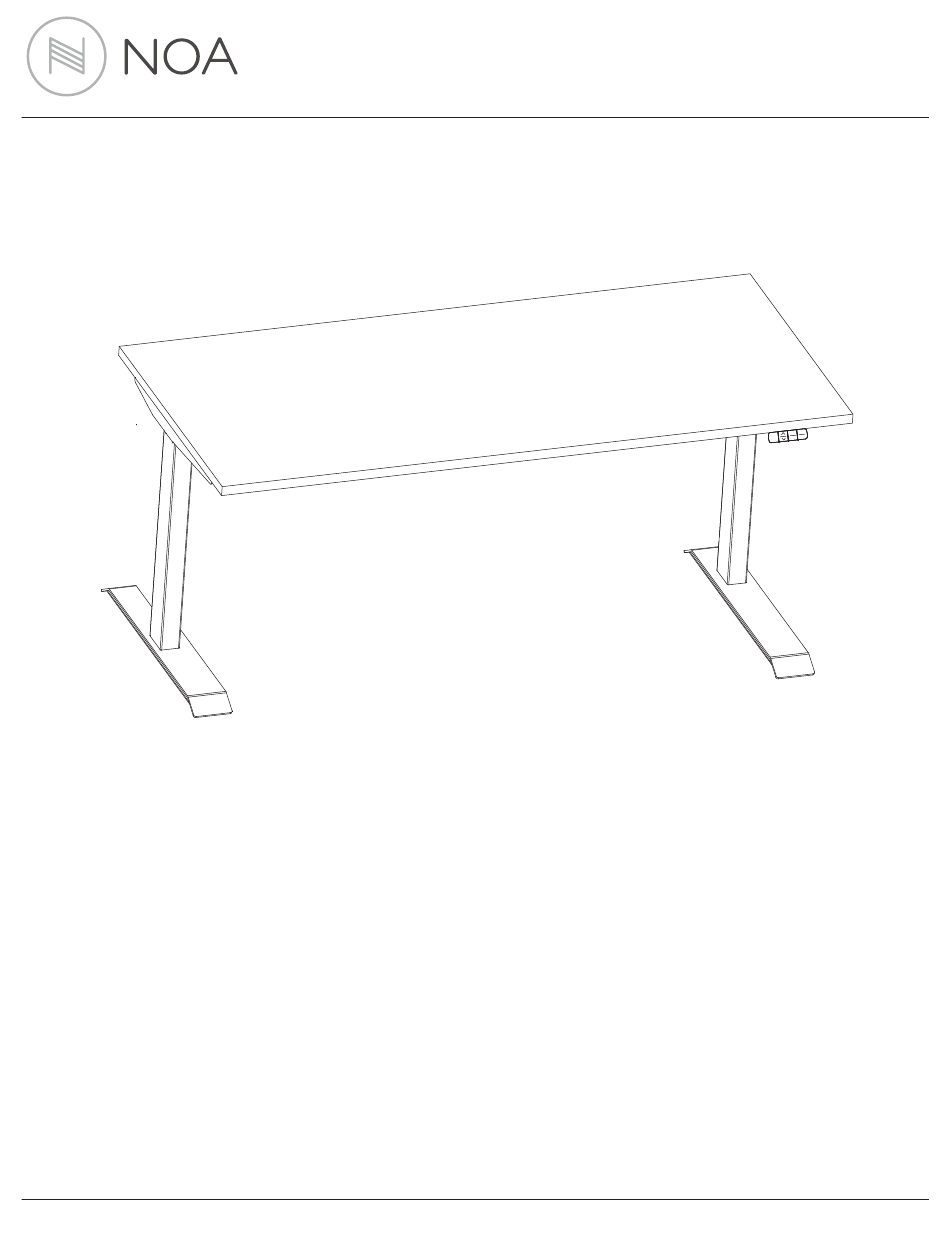

STUDIO DESK
Advertisement
Related Manuals for NOA STUDIO
Summary of Contents for NOA STUDIO
- Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS STUDIO DESK OVERVIEW This document lists the contents included in the box as well as the assembly instructions for this product. Kindly take your time to identify the hardware and individual components. We highly recommend placing the hardware and components atop a soft, carpeted and/or padded surface to protect the product and your property during assembly.
-
Page 2: Warranty
WARRANTY Thank you for purchasing your new Noa Home product. We hold ourselves to the highest standards of product quality and are confident you’ll be pleased with your purchase. All products are carefully inspected prior to shipment. Our products carry a one (1) year warranty covering manufacturing defects. - Page 3 • Place all hardware and components atop a soft, carpeted and/or padded surface area to protect the product and your property during assembly. • Please determine the location of use for the Studio desk prior to assembly to avoid moving it once assembled. CAUTION •...
- Page 4 PARTS NOT INCLUDED noahome.com...
- Page 5 STEP 1 • Take the N2 controller box from the installation shelf and put it aside. • Separate the installing shelf and controlling box shelf. Remove the two central beams inside. STEP 2 • Use four M6x10 hexagon flat round head screws (part #15) to fix the frame and standing pole. Repeat for opposite side. (total of 8 pcs) •...
- Page 6 STEP 3 • Use four M6x14 hexagon screws (part #16) to fix the desk leg and feet. Repeat for opposite leg. (total of 8 pcs) • Insert two connecting poles into installing shelves. Make sure the open slot of the central beam is closer to the desk leg (with thinner sides facing upwards).
- Page 7 STEP 5 • Insert the controller into the supporting frames and connect all accessories; fix them with wire clips. STEP 6 • Use eight M6x10 hexagon flat round head screws (part #15) to lock wire supporter and frame. M6x10 screws (part #15) - 8 pcs noahome.com...
- Page 8 Note: Please make sure that there are no obstacles while operating the desk. All wires must be long enough to allow the upward / downward movement of the desk. Suggestions: Please set position 1 as the most comfortable height when sitting down. Set position 2 as the most comfortable height when standing.
- Page 9 Delete limit position: Press the M button. The digital tube shows “S-”. Release the button. Press the M button again for 2 seconds until it shows “555”. The upper and lower limits have been deleted. Lock: Long press for 2 seconds Press the M button, the digital tube will show “S-”.
- Page 10 - Hand controller shows an error (E07, E08) but the motor drive wire remains connected / plugged. 2. If the display shows HOT, immediately cut the power and allow the desk and its motor to cool for at least 20-30 minutes. Please contact Noa Home at support@noahome.com for any other inquiries. noahome.com...
