OVERVIEW
This document lists the contents included in the box as well as the assembly instructions for this product.
Kindly take your time to identify the hardware and individual components. We highly recommend placing
the hardware and components atop a soft, carpeted and/or padded surface to protect the product and your
property during assembly.
QUESTIONS?
Missing hardware or require further assistance for assembly? Email us at support@noahome.com. We're always
here to help.
noahome.com
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS

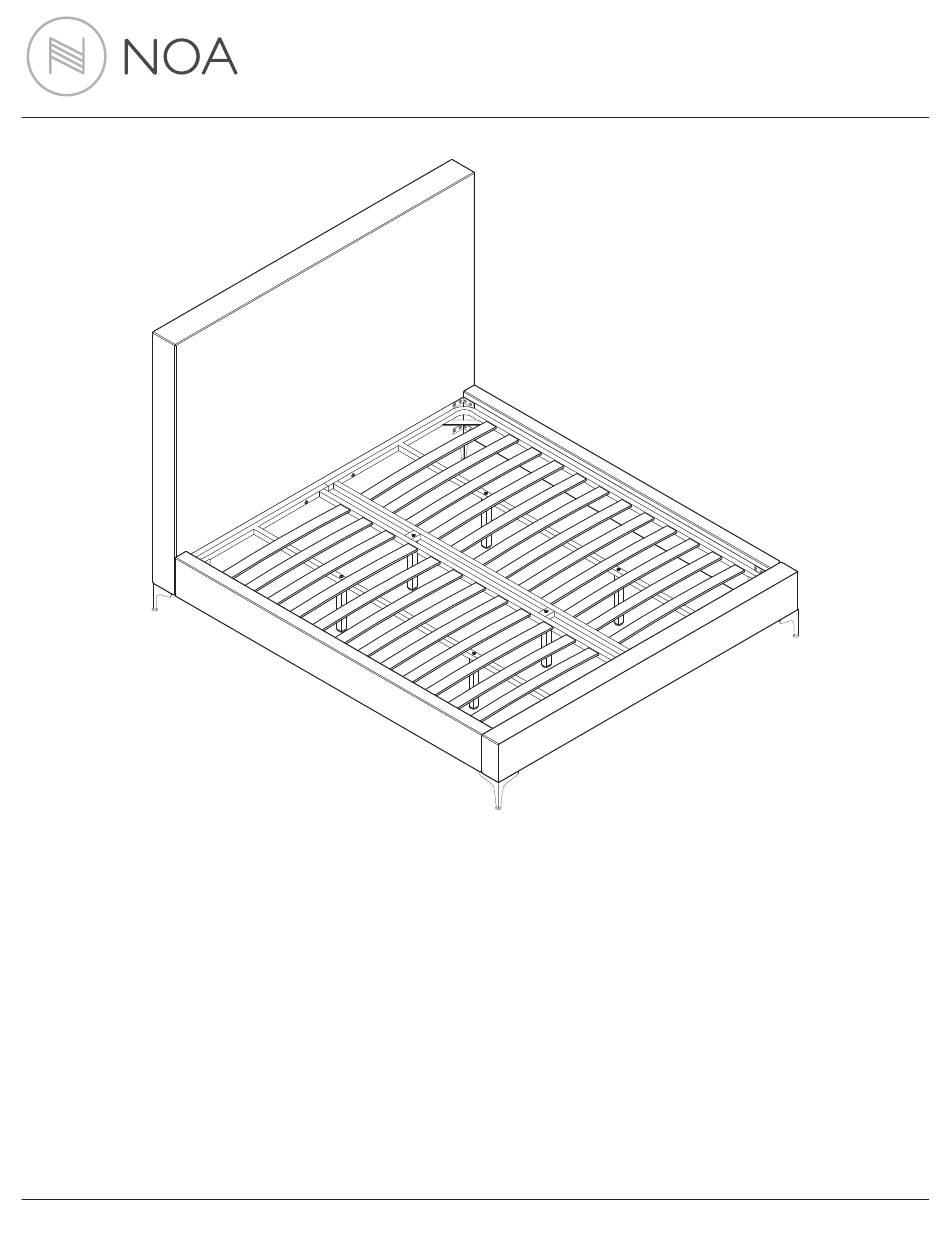

MODENA BED
1/14
Advertisement
Related Manuals for NOA MODENA
Summary of Contents for NOA MODENA
- Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODENA BED OVERVIEW This document lists the contents included in the box as well as the assembly instructions for this product. Kindly take your time to identify the hardware and individual components. We highly recommend placing the hardware and components atop a soft, carpeted and/or padded surface to protect the product and your property during assembly.
-
Page 2: Warranty
WARRANTY Thank you for purchasing your new Noa product. We hold ourselves to the highest standards of product quality and are confident you’ll be pleased with your purchase. All products are carefully inspected prior to shipment. Our products carry a one (1) year warranty covering manufacturing defects. - Page 3 HARDWARE B * N/A A * 9 pcs C * 4 pcs D * 8 pcs (not applicable for Modena) E * 6 pcs F * 4 pcs G * 58 pcs H * 4 pcs I * 1 pc J * 6 pcs noahome.com...
- Page 4 COMPONENTS K * 2 pcs L * 1 pc (footboard) M * 1 pc (left side) N * 1 pc (right side) O * 1 pc (headboard) P * 1 pc (support slats left) Q * 1 pc (support slats right) noahome.com 4/14...
-
Page 5: Complete Overview
COMPLETE OVERVIEW noahome.com 5/14... - Page 6 STEP 1 3x on each side rail G - 2x M and N - top of left and right side rail (facing upwards) G - 2x G - 2x L (footboard) O (headboard) Secure the metal bracket plates (A) using the Allen key (I) and screws (G) to both side rails of the bed (6x), the footboard (2x) and headboard (1x).
- Page 7 STEP 2 Right side rail (N) shown below. Repeat the step for the left side rail (M). Headboard side D - 2x G - 2x N - top of right side rail (facing upwards) Footboard side Secure the L brackets (D) to both side rails (M and N). These L brackets (D) will secure both side rails to the footboard (L).
- Page 8 STEP 3 D - 2x O - headboard G - 2x N - right side rail Connect the side rails (M and N) to the headboard (O) by securing L brackets (D) using screws G. noahome.com 8/14...
- Page 9 STEP 4 G - 2x N - right side rail L - footboard O - headboard M - left side rail Connect the side rails (M and N) to the footboard (L) by securing L brackets D using screws G. noahome.com 9/14...
- Page 10 STEP 5 C - 1x G - 2x Flip entire bed frame structure onto one of its sides (requires 2 persons). Secure all four corner legs C using screws G. noahome.com 10/14...
- Page 11 STEP 6 Q - 1x K - 2x P - 1x Position parts K between the support slat structures P (left side) and Q (right side) - one at the top and the other at the bottom. Connect support slat structures P and Q by pushing them towards one another (parts K should now be inserted within P and Q).
- Page 12 STEP 7 F - 2x H - 2x Connect both slat structures P and Q by securing screws F and washers H through the threading of parts K previously inserted into the metal frame. noahome.com 12/14...
- Page 13 STEP 8 E - 1x J - 1x Secure the six (6) support slat legs J using scews E. noahome.com 13/14...
- Page 14 STEP 9 Position the support slat structure within the bed frame. This step requires two (2) persons. noahome.com 14/14...
