- Page 1 INFINITE SOCKET PATIENT INSTRUCTIONS...
-
Page 2: Table Of Contents
Contents About the Infinite Socket TT-S ™ Legend Putting on your socket Adjusting your socket Removing your socket Maintaining your socket Troubleshooting Notes... - Page 3 Welcome Congratulations on becoming a #LIMlegend! The following steps will guide you through the use of the Infinite Socket TT-S. ™ For additional support or questions, please contact your prosthetist.

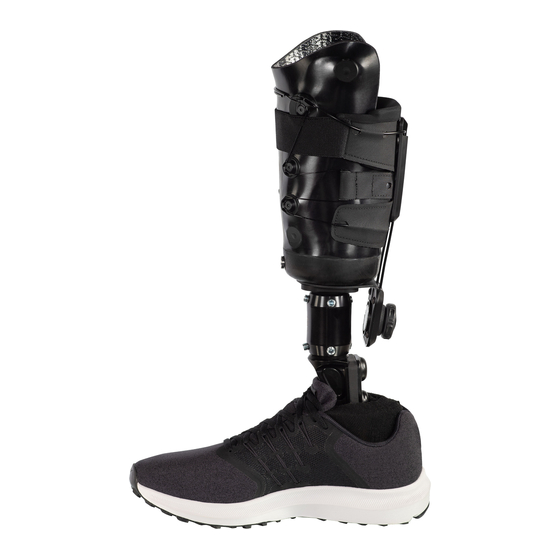

- Page 4 Introduction The Infinite Socket TT-S ™ is a human-inspired transtibial socket designed for daily adjustments. It optimizes knee flexion without sacrificing performance or aesthetics, providing new levels of force transitions that dynamically conform with the patient’s every stride.
-
Page 5: Legend
Legend Cover Attachment Lace Housing Rear Upper Pad Lace Peninsula Release Button Suspension Mechanism Fit System ® optimized by Click Medical ™ Note: For suction and seal in suspension, the release button will be on the side of your socket... -
Page 6: Putting On Your Socket
Putting On Your Socket Loosen the back BOA dial ® by pulling it away from the socket. Pull the upper rear pad away from socket. Note: An audible click occurs when the BOA ® dial disengages. - Page 7 Putting On Your Socket Pin Lock Suspension Make sure that the green ring is placed over the pin on your liner. Note: The pin should be in a straight line with limb After putting on your liner, insert your limb into the socket (seated or standing).
- Page 8 Putting On Your Socket Seal In Suspension After putting on your liner, apply alcohol based lubricant on the liner seals and on the inside of the socket. Insert your limb into the socket (seated or standing). Press the valve button on the side of the socket to allow your limb to sink deeper if needed.
- Page 9 Putting On Your Socket Sleeve Suspension After putting on your liner, insert your limb into the socket (seated or standing). Roll your suspension sleeve over your socket and thigh. If a valve is present, press the valve button on the side of the socket to allow your limb to sink deeper into the socket if needed.
-
Page 10: Adjusting Your Socket
Adjusting Your Socket The Closure System Push the BOA dial towards ® your leg and listen for a click. Rotate the BOA dial by ® spinning the dial in a clockwise direction. Continue turning the BOA ® dial until the socket fits snugly around your limb. -
Page 11: Removing Your Socket
Removing Your Socket Loosen the closure system by pulling the BOA dial away ® from your limb. Suspension Sleeve Pin Lock Seal In Push the pin lock Push the valve Roll your suspension button in the front button on the side sleeve down. -
Page 12: Maintaining Your Socket
Maintaining Your Socket Cleaning The socket can be cleaned with gentle soap and water. Avoid using alcohol based cleaners on the exterior of the socket. If salt water contacts the socket, make sure to immediately rinse with fresh water. Cover care Remove the cover using 2.5 mm hex key. -
Page 13: Troubleshooting
Troubleshooting Problem Possible Solution(s) Feeling like walking • Turn the BOA ® dial clockwise on the end of your • Remove the socket, add a limb sock limb • Remove the socket, put your liner on again to ensure the pin orientation is correct •... - Page 14 Notes...
- Page 15 INFINITE SOCKET Patented: www.liminnovations.com/intellectual-property...
- Page 16 424 9th Street, San Francisco, CA 94103 (844)888-8546 info@liminnovations.com www.LIMinnovations.com...
