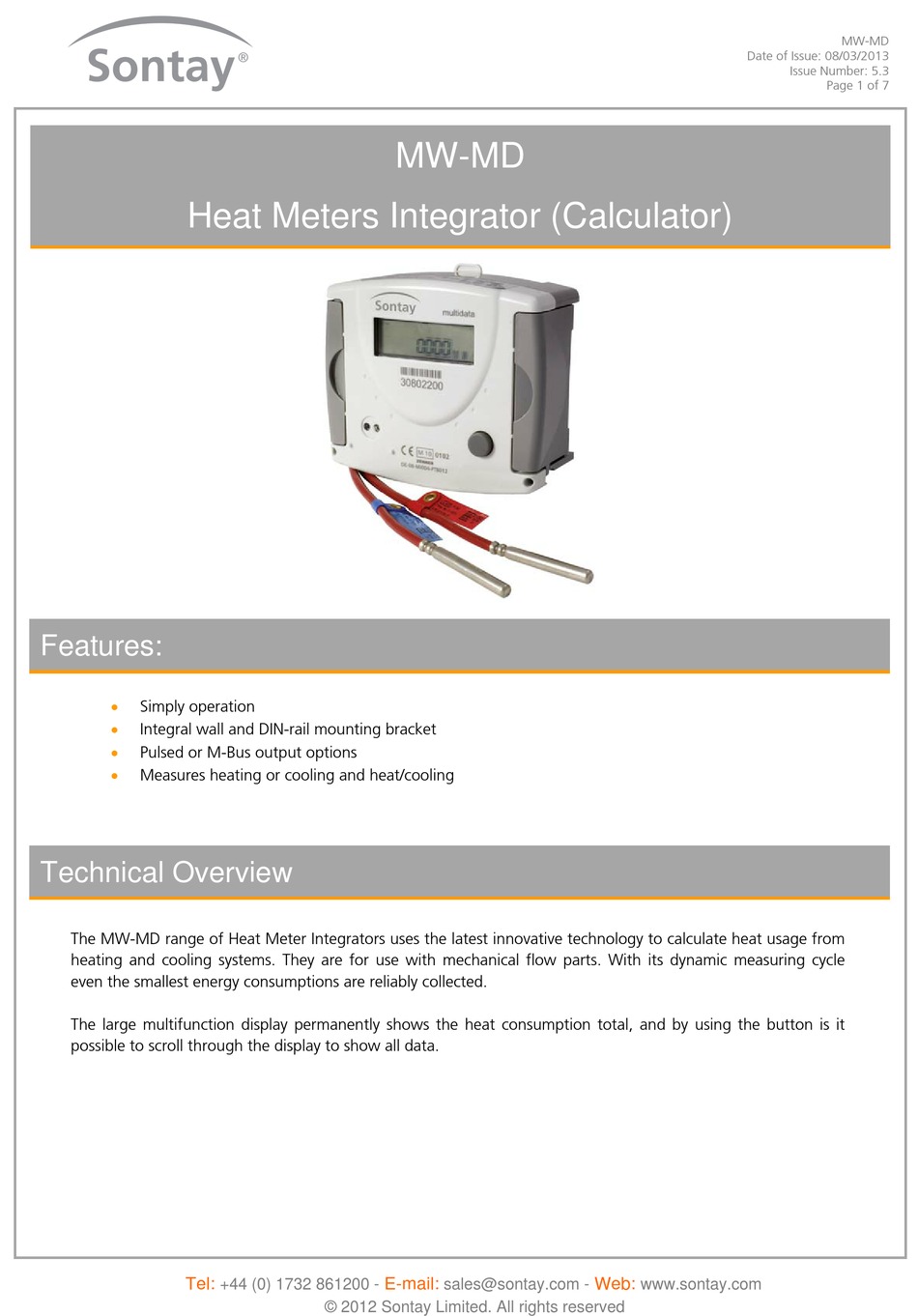

Heat Meters Integrator (Calculator)
Features:
Simply operation
Integral wall and DIN-rail mounting bracket
Pulsed or M-Bus output options
Measures heating or cooling and heat/cooling
Technical Overview

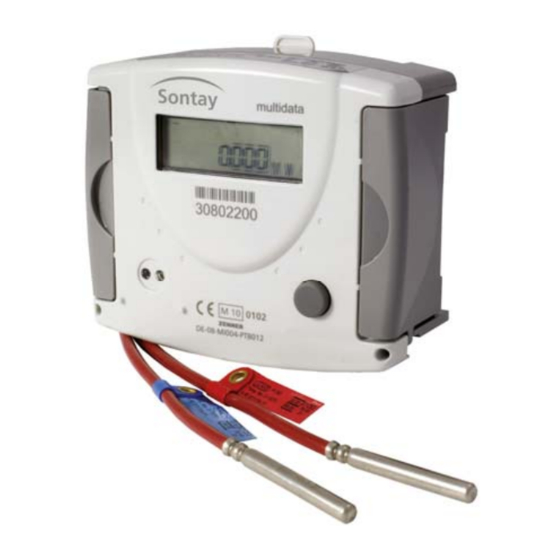

The MW-MD range of Heat Meter Integrators uses the latest innovative technology to calculate heat usage from
heating and cooling systems. They are for use with mechanical flow parts. With its dynamic measuring cycle
even the smallest energy consumptions are reliably collected.
The large multifunction display permanently shows the heat consumption total, and by using the button is it
possible to scroll through the display to show all data.
