Specification
Measurement range
0.3m to 8m
Output
4-20mA
Supply
12 to 30Vdc loop powered
Load impedance
750Ω max.
Cable entry
2 x M20 x 1.5mm
Max. cable run
3000m (1.86 miles)
Display
Integral 4-digit LCD
Beam angle
±6° (3db)
Resolution
Better than 1mm
Accuracy (measured range)
<1.0mm ±5mm
>1.0mm ±0.5% of measured distance
Damping
1 to 99 seconds (adjustable)
Process connection
2" BSPT
Temperature range
-20 to +70°C
Operating pressure
-0.25 to 3bar max. (20°C)
Material:
Transducer
PVDF
Housing
Glass filled nylon
Dimensions
205.5 x 141mm overall
Protection
IP67
Conformity
EN50081-1 & EN50082-2
Country of origin
UK
UK Sales Tel: 0845 345 7253

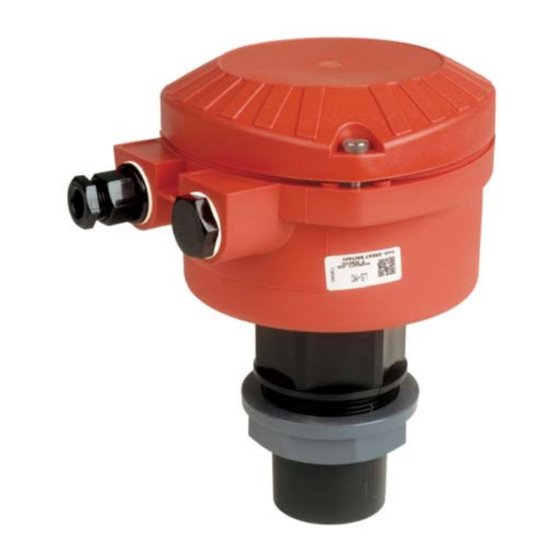

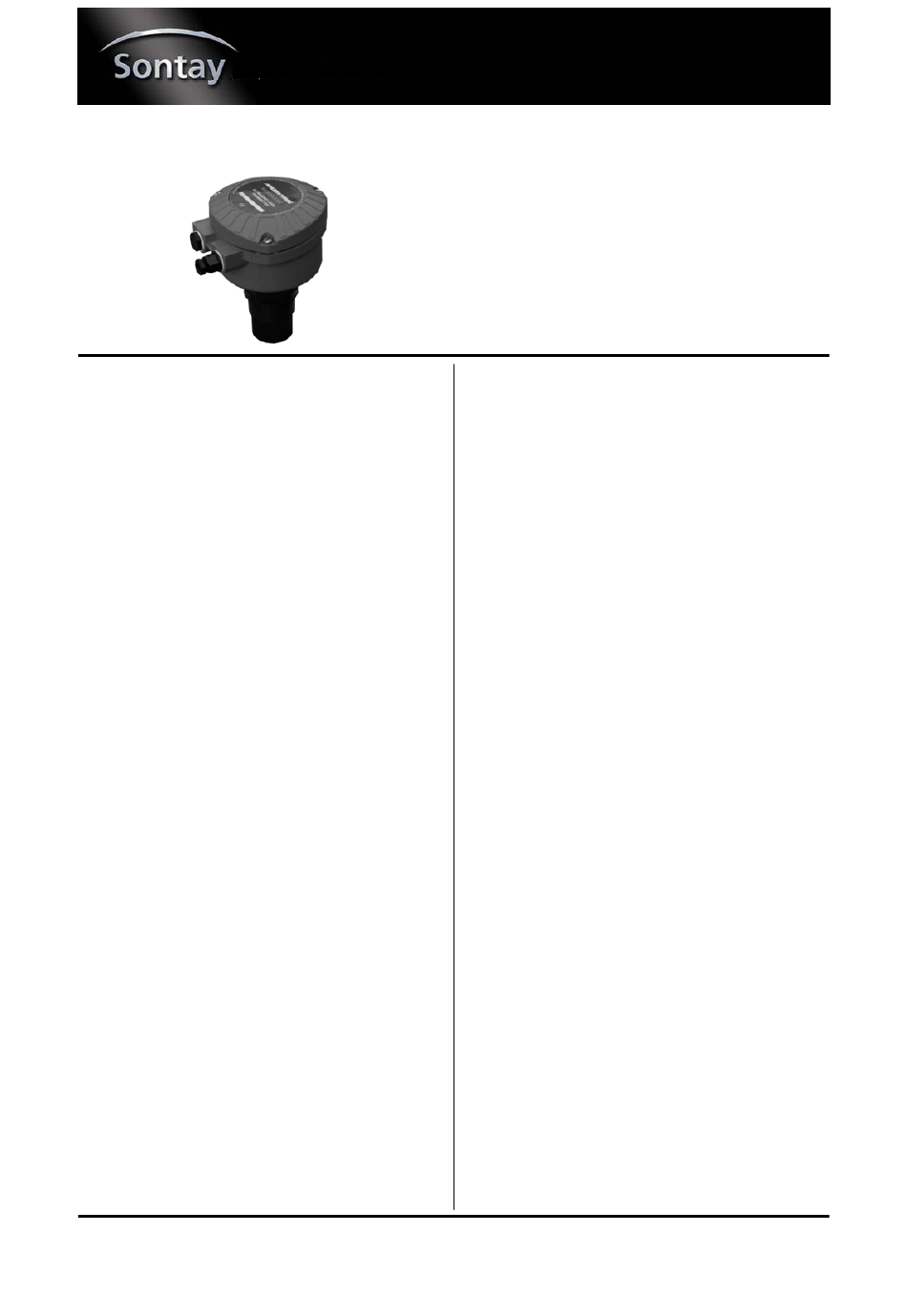

Ultrasonic Level Transmitter
Features
•
•
•
•
•
Product Codes
LS-MC
Accessorys
LS-NUT
LS-FK
Page 1 of 8
Date Of Issue: 10/06/2009
© 2009 Sontay Limited. All rights reserved.
2-Wire loop powered
IP67 Housing
12 to 30Vdc power supply
Fast speed of response, as much as 10m per minute
Locking nut supplied
Ultrasonic 4-20mA level transmitter, c/w locking nut
Additional fixing nut
Adaptor flange for LS-UL3 fixings
International Tel: +44 1732 861225
LS-MC
Issue: 5.0
Advertisement
Table of Contents
Related Manuals for Sontay LS-MC
Summary of Contents for Sontay LS-MC
- Page 1 LS-MC Issue: 5.0 Date Of Issue: 10/06/2009 © 2009 Sontay Limited. All rights reserved. Ultrasonic Level Transmitter Features • 2-Wire loop powered • IP67 Housing • 12 to 30Vdc power supply • Fast speed of response, as much as 10m per minute •...
- Page 2 8. Applications where heavy condensation is likely on the instrument face should be avoided. 9. The LS-MC is not suitable for use in a hazardous area. 10. The electrical connections are Red = 24-36Vdc supply, and Blue 4-20mA output.
- Page 3 The 4mA level may be set above or below the 20mA level to suit the monitoring or control equipment. On power up, the LS-MC will take a few seconds to initialise, then the display will run through a set-up routine, showing a Note: The LS-MC measures and calculates at all times in full set of figure eight’s, then the software revision and...
- Page 4 If the new value is incorrect, the edit sequence for b.rEF can Tip: A feature of the LS-MC useful at this stage is that it can be started again by pressing the blue button .
- Page 5 If the new value is correct, press the red button to save The LS-MC will signal an alarm condition in the event that the 20mA level programmed in and the display will auto- the target echo is lost for a period of 10s or more.
- Page 6 If, once the LS-MC is in operation, an echo other than the display will stop flashing. Press red button to save and true liquid surface echo is detected, and an incorrect level...
- Page 7 © 2009 Sontay Limited. All rights reserved. Changing Operation To Distance Mode Fault Finding & Error Messages (continued) If the LS-MC is to be used to measure distance rather than Error messages (continued): level, the display can now be changed accordingly. With the Flashing “LE”...
- Page 8 For the latest information and product updates, register at www.sontay.com Whilst every effort has been made to ensure the accuracy of this specification, Sontay cannot accept responsibility for damage, injury, loss or expense resulting from errors or omissions. In the interest of technical improvement, this specification may be altered without notice.
