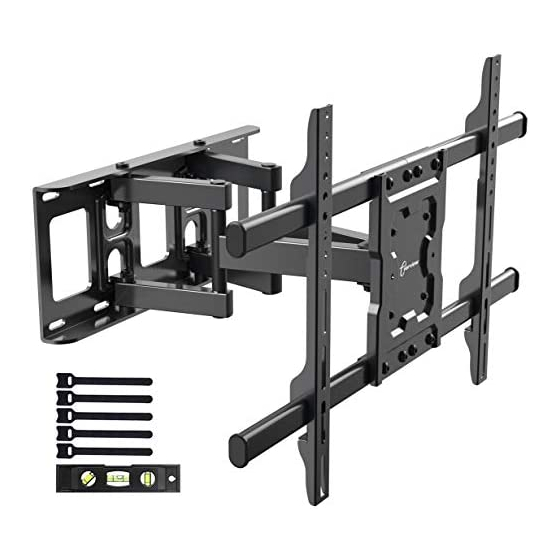

- Page 1 M IDDLE FULL-MOTION TV WALL MOUNT EV2700MDW customerservice@everviewmount.com...
-
Page 2: Weight Capacity
WARNING! WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM IMPROPER INSTALLATION OR ASSEMBLY. READ THE FOLLOWING WARNINGS BEFORE BEGINNING. If you do not understand the instructions or have any concerns or questions, please contact a qualified installer. Do not install or assemble if the product or hardware is damaged or missing. Not all parts and hardware included must be used. -
Page 3: Supplied Hardware
Supplied Hardware Arm and Wall Plate allen wrench 5x5 Wall Extension A TV Bracket Wall Extension B Arm Extensions Washers Spacers Spacers Philips Screws Philips Screws Philips Screws ø6mm L15mm L5mm M4 x 12mm M6 x 12mm M8 x 25mm M4 x 30mm M6 x 30mm M8 x 50mm... - Page 4 Step 1 Before TV Bracket Installation Measure the distance between the holes located at the back of your TV(these measures may form the shape of a square , or a rectangle) and check that these taken measures are within the VESA(*) range for this wall mount.
- Page 5 Step 2 step 1 tight the two screw together step 2 tight the two screw together...
- Page 6 Step 3 Install TV Bracket For Flat Screen TV M4 x 12mm M4 x 30mm M8 x 25mm M6 x 12mm M6 x 30mm *for your reference For Curved TV M4 x 30mm M8 x 50mm M6 x 30mm *for your reference...
- Page 7 Step 4 Attach the Extensions to the Wall Plate step1 step2 allen wrench M6X12MM M6X14MM allen wrench a(12PCS) b(4PCS) c(8PCS) d(8PCS) e(1PC) f(1PC) for studs with the sapce between 16.5” to 18” for 18”to 24”space studs Extension A Extension B Extension B Only one side need to attach each of extensions A and B.
- Page 8 Step 4A Use a stud finder (not included) to locate wood studs. Mark the edge and center locations. Use wall plate to mark mounting location x4 Mark the 4 inside holes for locations for 24” space studs. 18” space studs. left right Holes pattern for...
- Page 9 Drill 4 pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Make sure the depth is not less than 2 3/8” (60mm). 2⅜ in.(60mm) Mount wall plate using 4 sets of 5/16 lag bolts and washers B with a 1/2 in. socket wrench (not included). Secure the lag bolts to pilot holes for Secure the lag bolts to 4 inside holes 24”space studs.
- Page 10 Step 5 Hang TV Hang TV with brackets onto the wall plate Step 6 Secure TV Secure TV with brackets...
-
Page 11: Tilt Adjustment
Step 7 Tilt Adjustment Tilt adjustment If mount can not tilt freely, pls adjust the hardness of nut in both sides. -3° +12° metric wrench 25/64 in. (10mm) Step 8 Level Adjustment If needed, the TV can be leveled +/-3 degrees. - Page 12 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us. Email：customerservice@everviewmount.com...
