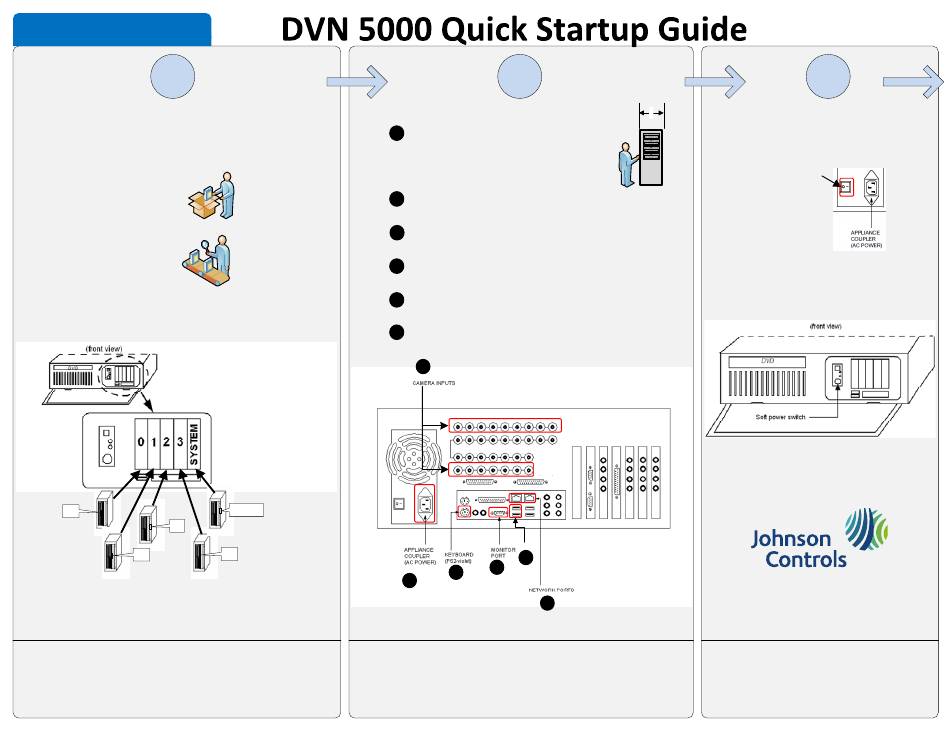

Johnson Controls DVN 5000 Quick Start Up Manual

Please read before installation
Step
1
Important: For complete installation instructions,
refer to the DVN 5000 Rackmount Series
Installation Guide.
□ Unpack the equipment.
□ Check for damage.
□ Insert hard drives into drive slots as shown
a
below.
0
2
1
□ Press each drive until it clicks and the handle is
held behind the release button.
a. See "Inserting the RAID Drives and System Drive in the Drive Bay" in the
DVN 5000 Rackmount Series Installation Guide (Part Number
24‐10129‐4).
□
1
□
2
□
3
□
4
□
5
□
6
System
3
6
a
b. Refer to the DVN 5000 Storage, Shipping, and Environmental Guidelines
(Part Number 24‐10520‐22).
c. See "Cable Connections Scheme" in the DVN 5000 Rackmount Series
Installation Guide (Part Number 24‐10129‐4).
d. See "Connecting the Power" in the DVN 5000 Rackmount Series Installation
Guide (Part Number 24‐10129‐4).
Step
2
Mount the DVN in a 19‐inch rack,
if applicable, using the rack shelf
b
or an optional sliding rail.
c
Connect to VGA monitor.
Connect mouse and keyboard.
c
Connect to network.
c
Connect analog cameras.
d
Connect AC Power.
5
(back view)
MOUSE
3
2
3
4
x
□ Turn on the main power on the
back of the DVN.
Main Power Switch
c
□ Press the power switch on the
front of the DVN.
e. See "Switching the Server On and Off" in the
DVN 5000 Rackmount Series Installation Guide
(Part Number 24‐10129‐4).
PAGE 1
24‐10520‐14 Rev. A
Step
3
e
e
