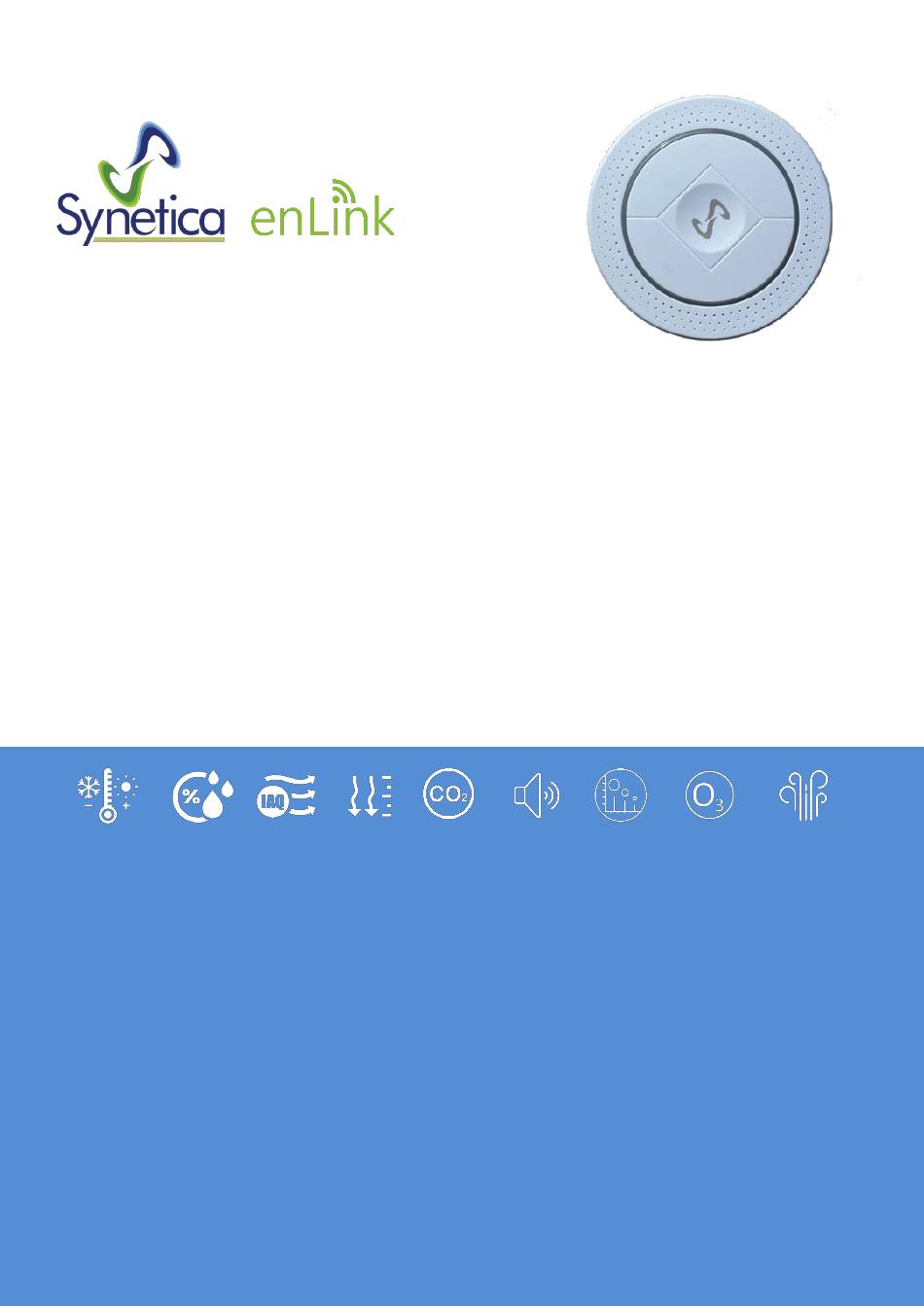

Synetica enLink IAQ Quick Start Manual

Quick Start Guide
enLink IAQ
Wireless Indoor Air Quality Monitor
•
LoRa long range wireless
•
Satisfies the accuracy and range requirements for IWBI WELL v2 standard.
•
Battery or externally powered
•
Built in sensor options for:
•
Temperature (°C)
•
Carbon Dioxide (CO
•
Barometric Pressure (Pa)*
•
Particles PM 1, 2.5, 4, 10*
•
One additional gas from CH
Temperature Humidity
The enLink IAQ wireless Air Quality Monitor is a precision instrument
which accurately measures up to 9 key environmental parameters
including Temperature, Humidity, VOC's, Carbon Dioxide, Particulate
Matter (PM1, PM 2.5, PM4 & PM10), Sound Level, Barometric
Pressure, Ozone, Formaldehyde, Carbon Monoxide, Nitrogen Dioxide,
Hydrogen Sulphide, Sulphur Dioxide and Oxygen.
enLink IAQ is a precision instrument and satisfies the accuracy and
range requirements for IWBI WELL v2 certification.
Readings are transmitted to the cloud using long range LoRa wireless,
where the data can be displayed and analysed.
A built in USB port allows all parameters including air quality data,
wireless signal strength and wireless network configuration to be
viewed and set using simple menus via any USB enabled host such as
a PC or Mac.
SYNETICA enLink IAQ Quick Start Guide Rev 1.4
)*
2
O (Formaldehyde), CO, NO
2
VOC's Pressure CO
•
Humidity (%RH)
•
Sound (dB)*
•
Volatile Organic Compounds (VOC's)
•
Ozone*
, H
2
Sound Particles
2
Features
• Multiple sensor options*
• LoRa long range wireless
• Frequency Range 863-870MHz*
• Frequency Range 902-928MHz*
• Up to +18dBm Tx Power
• Built in USB port for configuration
• Battery or externally powered
• CE compliant
• RoHS compliant
• Made in the UK
*Model dependent
S, SO , O . *
2 2 2
Ozone Additional Gases
