Synetica enLink OAQ Quick Start Manual

Quick Start Guide
enLink OAQ
Wireless Outdoor Air Quality Monitor
•
LoRa long range wireless
•
Battery or externally powered
•
Built in sensor options for:
•
Temperature (°C)
•
Barometric Pressure (Pa)
•
EPA Air Quality Index (AQI)
•
Carbon Dioxide (CO
•
Particles PM 1, 2.5, 4, 10*
•
One additional gas from CH
Temperature Humidity

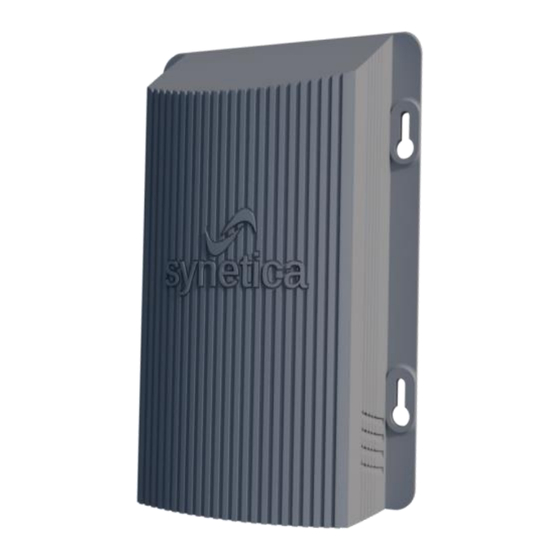

The enLink OAQ wireless Air Quality Monitor is a precision instrument
which accurately measures up to 10 key environmental parameters
including Temperature, Humidity, VOC's, Carbon Dioxide, Particulate
Matter (PM1, PM 2.5, PM4 & PM10), EPA AQI (based on O3 and NO2),
Sound Level, Barometric Pressure, Ozone, Formaldehyde, Carbon
Monoxide, Nitrogen Dioxide, Hydrogen Sulphide, Sulphur Dioxide and
Oxygen.
Readings are transmitted to the cloud using long range LoRa wireless,
where the data can be displayed and analysed.
A built in USB port allows all parameters including air quality data,
wireless signal strength and wireless network configuration to be
viewed and set using simple menus via any USB enabled host such as
a PC or Mac.
SYNETICA enLink OAQ Quick Start Guide Rev 1.5
)*
2
O (Formaldehyde), CO, NO
2
VOC's Pressure CO
•
Humidity (%RH)
•
Volatile Organic Compounds (VOC's)
•
Sound (dB)*
•
Ozone (O
, H
2
Sound Particles
2
Features
• Multiple sensor options*
• LoRa long range wireless
• Frequency Range 863-870MHz*
• Frequency Range 902-928MHz*
• Up to +18dBm Tx Power
• Built in USB port for configuration
• Battery or externally powered
• CE / FCC compliant
• RoHS compliant
• Made in the UK
*Model dependent
)*
3
S, SO , O . *
2 2 2
Ozone Additional Gases
