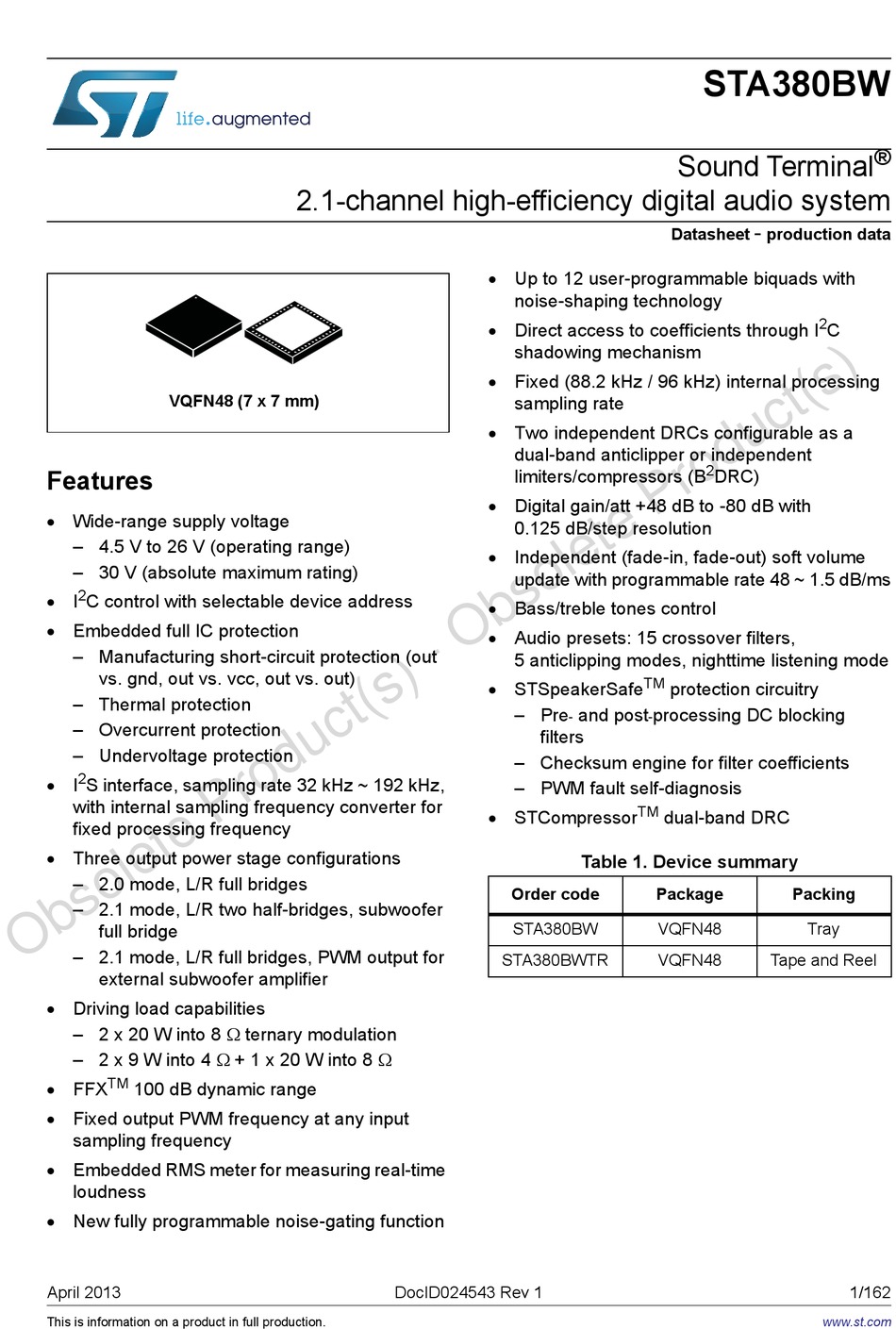

VQFN48 (7 x 7 mm)
Features
 Wide-range supply voltage
– 4.5 V to 26 V (operating range)
– 30 V (absolute maximum rating)
2
 I
C control with selectable device address
 Embedded full IC protection
– Manufacturing short-circuit protection (out
vs. gnd, out vs. vcc, out vs. out)
– Thermal protection
– Overcurrent protection
– Undervoltage protection
2
 I
S interface, sampling rate 32 kHz ~ 192 kHz,
with internal sampling frequency converter for
fixed processing frequency
 Three output power stage configurations
– 2.0 mode, L/R full bridges
– 2.1 mode, L/R two half-bridges, subwoofer
full bridge
– 2.1 mode, L/R full bridges, PWM output for
external subwoofer amplifier
 Driving load capabilities
– 2 x 20 W into 8  ternary modulation
– 2 x 9 W into 4 + 1 x 20 W into 8 
TM
 FFX
100 dB dynamic range
 Fixed output PWM frequency at any input
sampling frequency
 Embedded RMS meter for measuring real-time
loudness
 New fully programmable noise-gating function
April 2013
This is information on a product in full production.
2.1-channel high-efficiency digital audio system
DocID024543 Rev 1
 Up to 12 user-programmable biquads with
noise-shaping technology
 Direct access to coefficients through I
shadowing mechanism
 Fixed (88.2 kHz / 96 kHz) internal processing
sampling rate
 Two independent DRCs configurable as a
dual-band anticlipper or independent
limiters/compressors (B
 Digital gain/att +48 dB to -80 dB with
0.125 dB/step resolution
 Independent (fade-in, fade-out) soft volume
update with programmable rate 48 ~ 1.5 dB/ms
 Bass/treble tones control
 Audio presets: 15 crossover filters,
5 anticlipping modes, nighttime listening mode
TM
 STSpeakerSafe
– Pre
and post
processing DC blocking
-
-
filters
– Checksum engine for filter coefficients
– PWM fault self-diagnosis
TM
 STCompressor
dual-band DRC

Table 1. Device summary

Order code
Package
STA380BW
VQFN48
STA380BWTR
VQFN48
STA380BW
Sound Terminal
-
Datasheet
production data
2
C
2
DRC)
protection circuitry
Packing
Tray
Tape and Reel
www.st.com
®
1/162
162
