User Guide
Model PLL-SD10 Smart Dimmer

Description

The PLL-SD10 is a solid state, microprocessor-controlled
dimmer. Before the network is applied, the PLL-SD10 can control
the load with a default feature set.
If the button is pressed and released, the PLL-SD10 will
automatically ramp to its full on or off state. If the button receives
another push and release before the final state has been reached,
the PLL-SD10 will halt at that point in the load curve.
When the button is pressed and held, the PLL-SD10 will begin to
ramp slowly to its full on or off state. When released, it will halt at
that point in the load curve.
By default, the LED on the button of the PLL-SD10 is off when
the load is off, and is on when the load is on.
When the PLL-SD10 is connected to the PHASTLink network, the
following features are available for programming:
LED Brightness and On/Off State
Ramp Rate Adjust
Network-Controlled Lighting Scenes

Electrical Specifications

Max Load 600 Watts

Junction Box Requirements

Box Dimensions (inches)
3 x 2 x 2 1/2
3 x 2 x 3 1/4
3 x 2 x 3 1/2

Installation

To reduce the risk of serious injury or death, turn all power off before installing this equipment.
PHAST lighting products generate heat. They should only be installed in room-temperature
(approx. 77°F, 25°C) indoor environments. Installing these products in attics, closets, or other
confined areas with inadequate ventilation or heat dissipation ability has the potential to cause
overheating and a possible fire hazard, and will void the warranty.
1. Connect the black (hot) wire to the line voltage (see Figures 2 and 3).
2. Connect the white (common) wire to neutral.
3. Connect the red wire to the load (incandescent lights, up to 600 watts).
Page 1 of 3
Maximum Number of Conductors
Min. Cu. In.
No. 18
No. 16
Capacity
12.5
8
7
14.8
9
8
18.0
12
10
WARNING! DANGEROUS VOLTAGE!
WARNING!
08/07/00

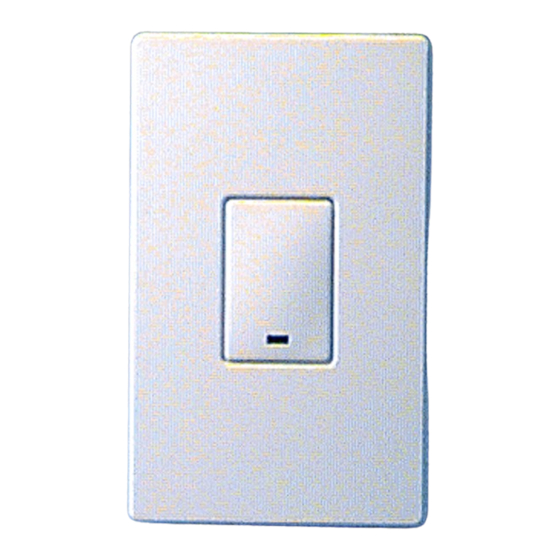

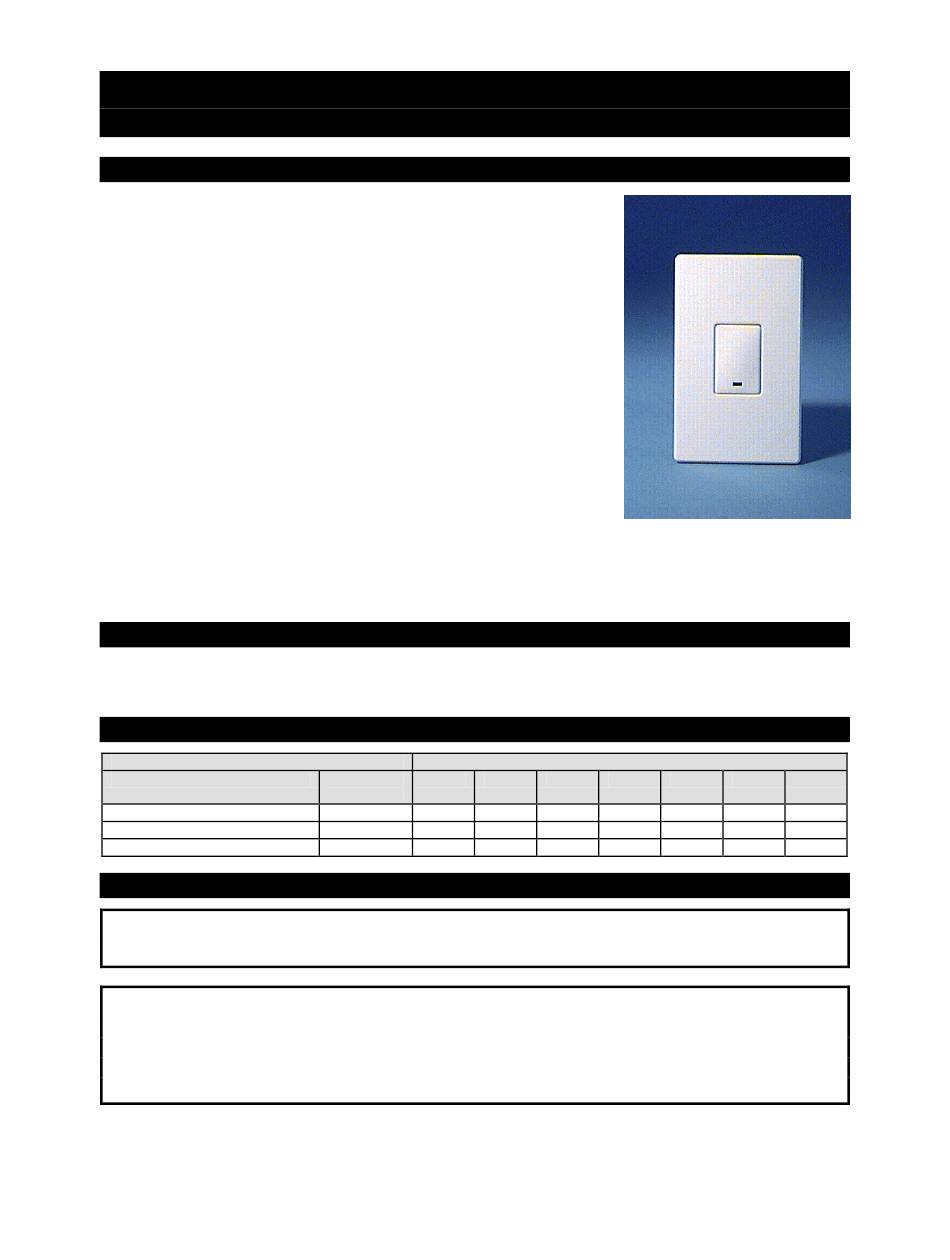

Figure 1 - PLL-SD10
Maximum On Level
Push and Hold Delay
Detachable Button (push/hold/release)
Supply
120 VAC, 60 Hz
Interface
PHASTLink
No. 14
No. 12
No. 10
6
5
5
7
6
5
9
8
7
No. 8
No. 6
4
2
4
2
6
3
Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phast PLL-SD10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AMX Phast PLL-SD10

  • Page 1 User Guide Model PLL-SD10 Smart Dimmer Description The PLL-SD10 is a solid state, microprocessor-controlled dimmer. Before the network is applied, the PLL-SD10 can control the load with a default feature set. If the button is pressed and released, the PLL-SD10 will automatically ramp to its full on or off state.
  • Page 2 4. Connect the green wire to ground. 5. The blue wire is a low-voltage tap to connect up to seven PHAST PLL-3WAY switches (see Figures 2 and 3). 6. Make sure the RJ-45 connectors have been correctly installed on the PHASTLink cables and insert the RJ-45 connectors in the RJ-45 jacks on the back of the PLL-SD10 (see Figure 3).
  • Page 3 1 2 3 4 5 6 7 8 (neutral) Figure 4 - RJ-45 Plug Figure 3 - Rear View of PLL-SD10 Troubleshooting Problem: LED does not come on at power-up. 1. Check the voltage across the Hot and Common wires to make sure the device is getting power (should be 120VAC).
