Summary of Contents for Sylvania STT104BT-BLACK-ING

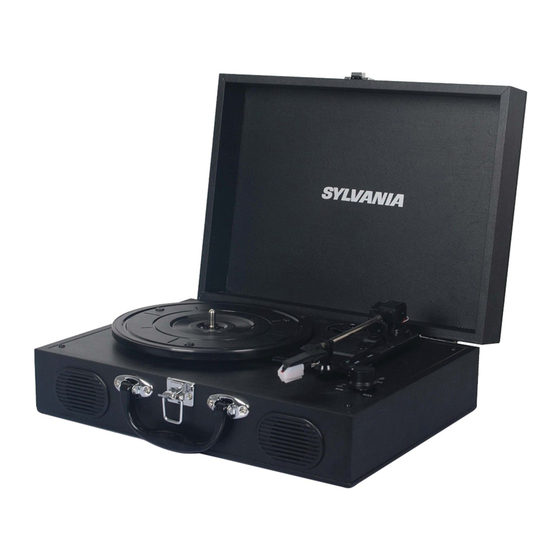

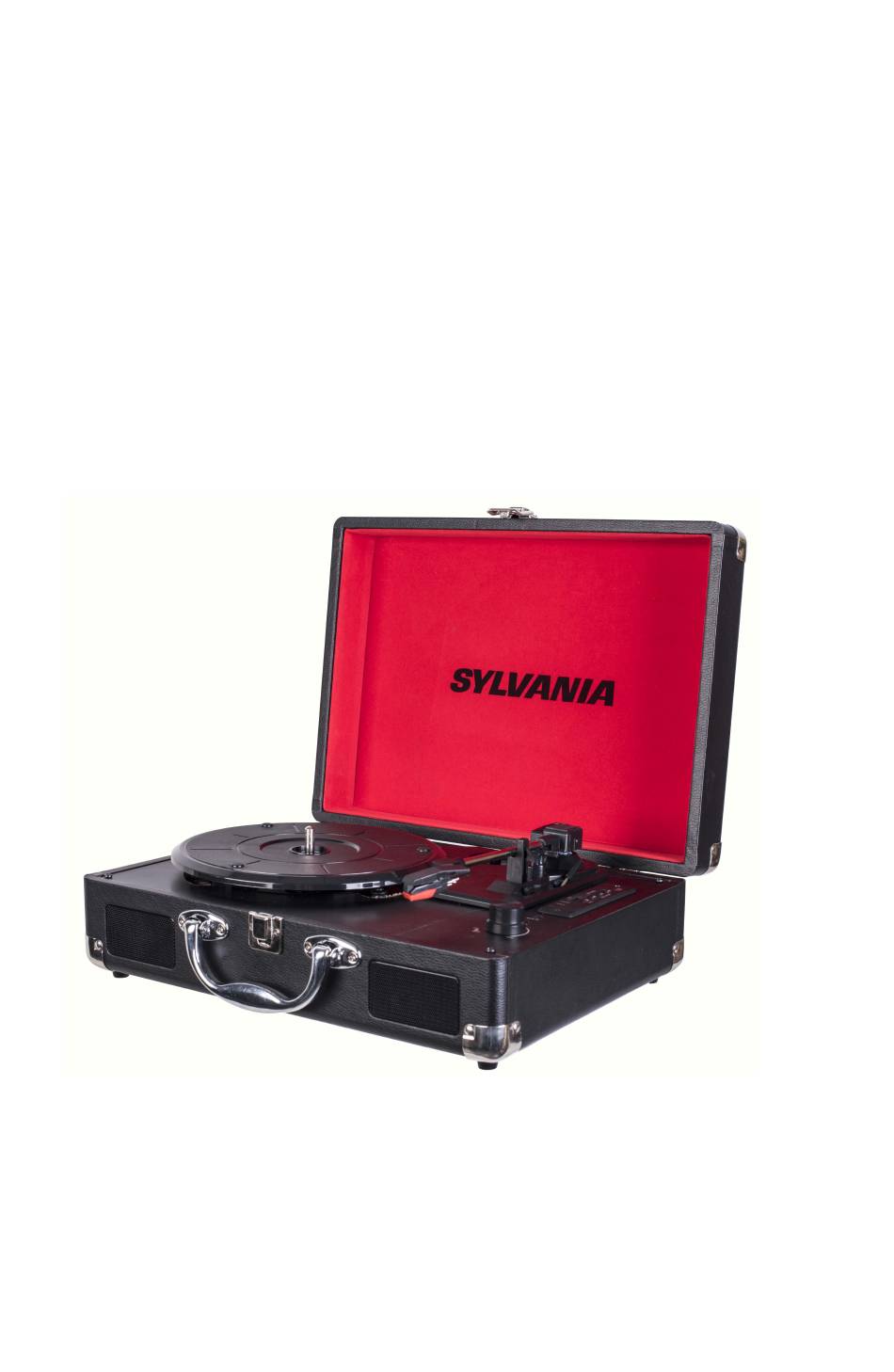

- Page 1 SYLVANIA TURNTABLE PLAYER WITH USB/SD/BLUETOOTH MODEL: STT104BT-BLACK_ING READ INSTRUCTIONS CAREFULLY BEFORE USE AND STORE IN A SAFE PLACE FOR FUTURE REFERENCE SYLVANIA is a registered trademark of OSRAM Sylvania Inc. used under license.
-
Page 2: Fcc Statement
IMPORTANT INSTRUCTIONS CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To assure continued operation, follow the attached installation instructions and use only shielded cables when connecting to other devices.
- Page 4 WARNING! • The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc. • No naked flame sources, such as lighted candles, should be placed on the apparatus. • The use of apparatus in moderate climates. •...
-
Page 5: Product Overview
PRODUCT OVERVIEW 45 RPM Adapter Lift Lever Speed Lever CHARGE POWER Tone Arm Rest AUX IN Tone Arm PHONE Cartridge Spindle Platter MODE Lamp Previous Button SD CARD Slot Play/Stop &REC STOP Button Previous Button USB Slot Source/REC. Button CHARGE Lamp CHARGE POWER Lamp POWER... - Page 6 1.0A Power Socket RCA Audio Out Carry Handle Speaker Speaker...
-
Page 7: General Operations
GENERAL OPERATIONS Turn on/off the unit 1. Plug the small end of the power plug into your turntable, the big one to the wall outlet. 1.0A To DC in 5V jack Note: The supplied AC adaptor is suitable for use on AC main supplies of 100-240V AC and should only be connected to a mains supply within these parameters. -
Page 8: Using An External Amplifier
Using an external amplifier 1. Insert one end of the RCA cable to the AUX IN port on an external amplifier or other devices, the other into the LINE OUT ports on the unit. (cable not supplied) 1.0A 2. Start playback in anyway supported by the unit 3. - Page 9 STEP-BY-STEP OPERATIONS Listen to the PHONO 1. Remove the stylus cover from the stylus and release the Tone arm form the Tone arm rest. 2. Place a record on the turntable platter and select the specified speed (33 1/3, 45 or 78) according to the record.
-
Page 10: Bluetooth Operation
2. Activate the Bluetooth function on your external Bluetooth device (cell phone or other music device). 3. select the pairing name "SYLVANIA STT104BT" from the devices list on your external device and tap it. If the passcode is required on some device, enter the password ‘0000’. -
Page 11: Other Information
OTHER INFORMATION Replacing the Stylus Cartridge Refer to figures 1-8 To fit a new cartridge, repeat process 3 & 4 in reverse order. Note: Please exercise extreme care while performing this operation so as to avoid damaging the tone arm and audio line wires. The Turntable’s cartridge needs to be replaced every 3 - 4 months after continuous playing. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION No power Check the power connection and AC/DC Adapter not make sure it is in good condition. connected properly The power in the built- Connect the unit to the wall outlet to in battery used up and charge the battery. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS AC 100 - 240V, 50/60Hz Power input Power output 350 x 255 x 27 mm Dimensions 1.8W × 2 Speaker power 71 x 41 x 28.7 mm Speaker dimensions Battery 1200mAh Cartridge Ceramic stereo Speed 33 1/3, 45, 78 RPM Sound input Turntable, Bluetooth, USB/SD card, AUX IN sound output... - Page 14 To make a warranty claim, please email support@curtiscs.com or call 1-800-968-9853. 90 day Year Warranty This product is warranted to be free from defects in material and workmanship for a period of ninety (90) days from the date of original purchase.
