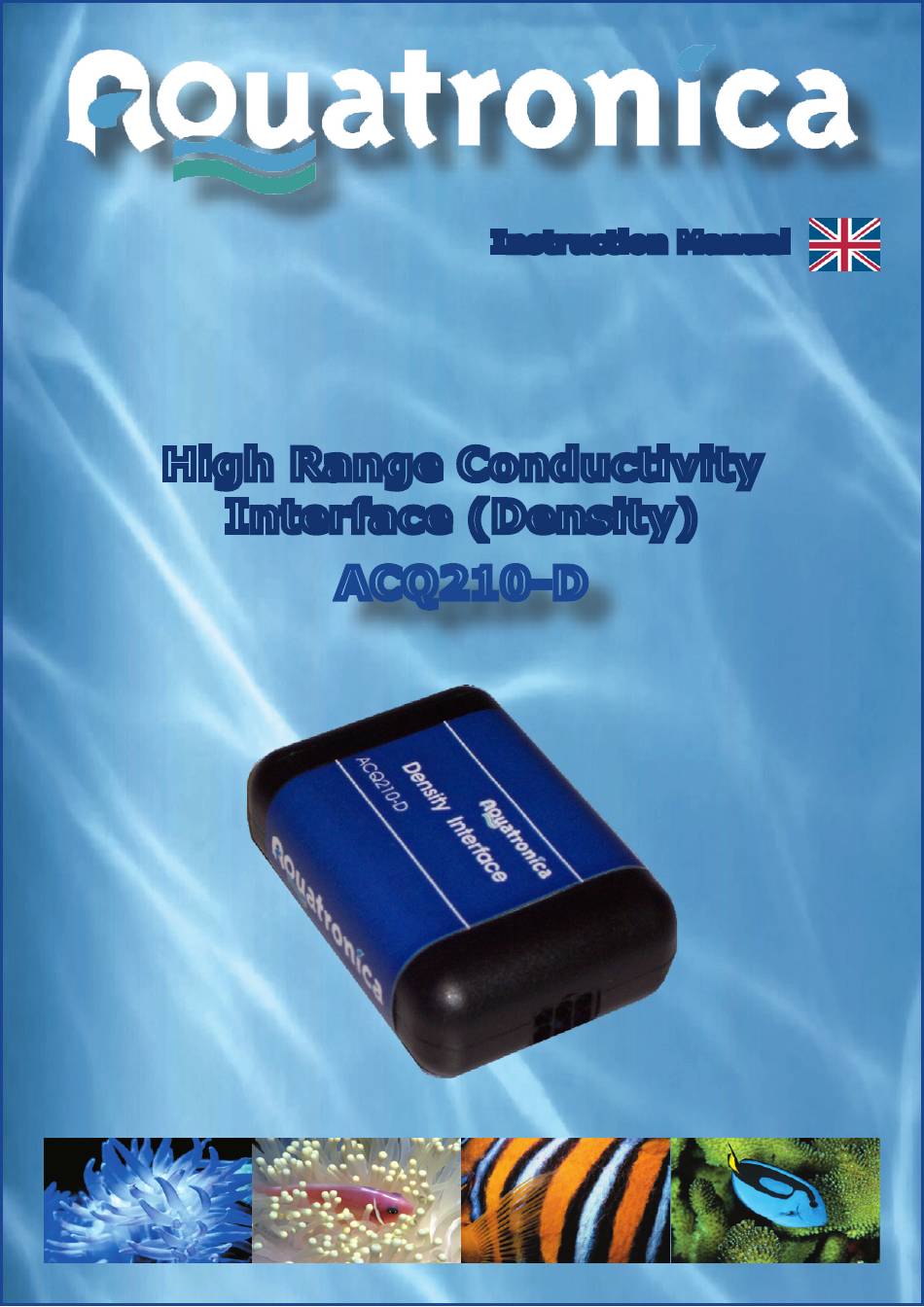

- Page 1 Instruction Manual High Range Conductivity Interface (Density) ACQ210-D IsACQ210D-0 Rev. 250907-2 1 - 16 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
-
Page 2: Table Of Contents
• Warranty .................... Page. 13 • Declaration of conformity ..............Page. 14 • Conversion table ................Page. 15 2 - 16 IsACQ210D-2 Rev. 250907-2 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 3: General Information
Connection to “Aquarium Controller” system Connect the conductivity probe’s connector to the interface (ACQ210-D). Connect the ACQ210-D interface to the power unit (or HUB) using the provided BUS cable NOTE: Insert the correct end of the connector into the power unit; inserting it in the other direction can seriously damage the equipment. -
Page 4: Displaying The Read Value
• Select the letter to insert using the keys and move within the word using the keys. When finished, press “Enter”. (Fig. 4) IsACQ210D-0 Rev. 250907-2 4 - 16 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... - Page 5 (Ref. + ∆MAX); the outputs on the upper line are set using the key. 5 - 16 IsACQ210D-2 Rev. 250907-2 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
- Page 6 (lower right corner) for the se- lected time. When finished, press the “Enter” key. 18:00 1.0232 (Fig. 9) IsACQ210D-0 Rev. 250907-2 6 - 16 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
- Page 7 “Enter”. The delete screen will appear. Press “Enter” Esc: Cancel to delete or “Esc” to cancel. (Fig. 12) 7 - 16 IsACQ210D-2 Rev. 250907-2 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
- Page 8 After programming the various settings, press “En- ter”. IsACQ210D-0 Rev. 250907-2 8 - 16 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
- Page 9 • Select the measurement unit using the keys and press “Enter”. Note: See conversion table at the end of this (Fig. 19) manual. 9 - 16 IsACQ210D-2 Rev. 250907-2 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
-
Page 10: Disconnect
• The disconnection screen will appear (Fig. 24). Press “Enter” to disconnect or “Esc” to cancel. Enter: Confirm Esc: Cancel (Fig. 24) IsACQ210D-0 Rev. 250907-2 10 - 16 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 11: Suggestions For An Accurate Reading
- Do not immerse the probe completely in water. The cable’s seam must always be ap- proximately 2 cm above the water. IMPORTANT For reliable conductivity readings, use only AQUATRONICA electrodes and cali- bration solutions. The use of other brands of electrodes could cause incorrect readings of the instrument. -
Page 12: Waste Diposal Legislation
Local regulations may provide for the separate collection of household appliances at municipal waste sites or retailers when a new product is purchased. IsACQ210D-0 Rev. 250907-2 12 - 16 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 13: Warranty
Thank you for the trust you have placed in AQUATRONICA by purchasing this product. AQUATRONICA subjects all its products to severe quality tests. If, in spite of the controls, the product should malfunction, we recommend you immediately contact the dealer/pro- ducer for any checks or interventions necessary. -
Page 14: Declaration Of Conformity
Place of issue: Cavriago (RE) Italy Date of issue: 05/23/06 The A.E.B. srl legal representative Paterlini Ivan IsACQ210D-0 Rev. 250907-2 14 - 16 Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com... -
Page 15: Conversion Table
Conversion Table CONDUCTIVITY - DENSITY - SALINITY - SPECIFIC GRAVITY Conductivity Density Salinity Specific Gravity (mS/cm) ( g/l) (ppt/PSU) 35,5 mS/cm 1.013,8 g/l 22,4 ppt/PSU 1,0164 36 mS/cm 1.014,1 g/l 22,7 ppt/PSU 1,0166 36,5 mS/cm 1.014,4 g/l 23,0 ppt/PSU 1,0169 37 mS/cm 1.014,6 g/l 23,4 ppt/PSU... - Page 16 A.E.B. Srl Division Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: +39 0522 494403 Fax: +39 0522 494410 http:\\www.aquatronica.com E-mail: service@aquatronica.com...
