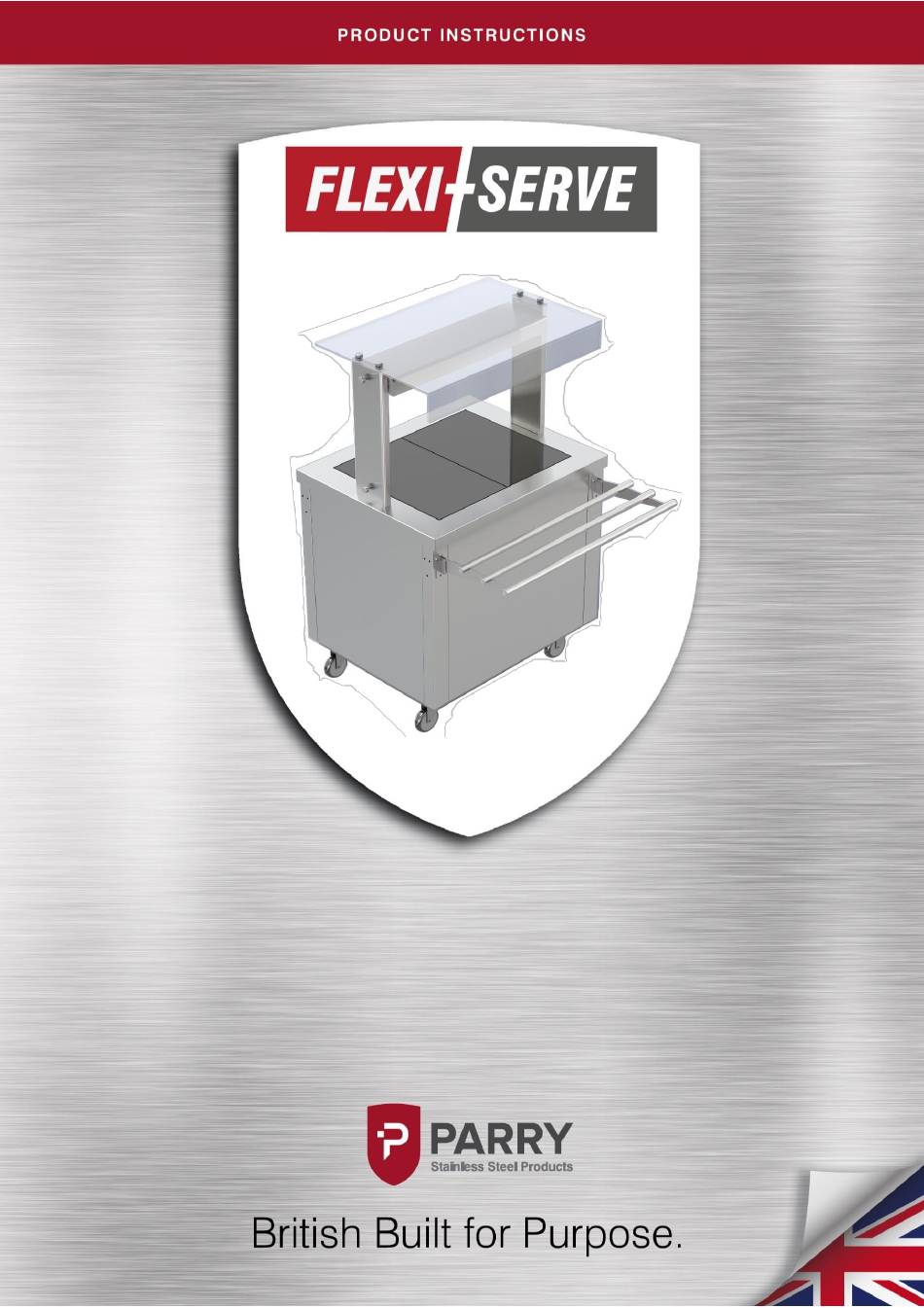

- Page 1 Instruction Manual FS-HT Range Available as: FS-HT2, FS-HT3, FS-HT4, FS-HT5 Including Gantry versions & 800mm Height...
-
Page 3: Table Of Contents
Exploded View ........................... 16 Parts List ..........................17-18 Warranty Information ........................ 19 Disposal & Recycling ......................... 20 Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT. Sales Tel: 01332 875544 Fax: 01332 874455 Parry-British Built for Purpose... -
Page 4: Product Overview
Product Overview The new Parry Flexi-Serve range has been designed specifically to suit the requirements of the user. The FS-HT Range comprises of a fan assisted heated cupboard and heated Ceran tiles to the top of the unit. The Flexi-Serve range can be manufactured with or without a gantry. - Page 5 Height with Gantry 1440 (h) (mm) Optional Total Power (Watts) 1860 2040 2220 2400 Total Power with 2060 2440 2620 3000 Gantry (Watts) Voltage 230V 50Hz ~ Weight (kg) 128.5 169.5 Weight with Gantry 226.5 (kg) Parry-British Built for Purpose IN500-1...
- Page 6 Height with Gantry 1340 (h) (mm) Optional Total Power (Watts) 1860 2040 2220 2400 Total Power with 2060 2440 2620 3000 Gantry (Watts) Voltage 230V 50Hz ~ Weight (kg) 76.5 149.5 Weight with Gantry 96.5 (kg) Parry-British Built for Purpose IN500-1...
-
Page 7: Safety Instructions
Units fitted with 13amp plug, plug into a suitable socket. Static Use Position the Flexi-Serve unit in the serving position and adjust legs to suit the surface. Units fitted with 13amp plug, plug into a suitable socket. Parry-British Built for Purpose IN500-1... - Page 8 Taking Out the Doors Slide door to the Lift door up Angle bottom of Pull door down middle door forward Attaching the Tray Slide onto the Unit Parry-British Built for Purpose IN500-1...
- Page 9 Fixing the Connecting Plates and Trims to the Units Push the two units together that you require the joining plate to be attached to. Screw in the supplied Allen screws with the supplied Allen key. Top of Unit Bottom of Unit Parry-British Built for Purpose IN500-1...
- Page 10 Kick plates clip onto the legs of the unit. You must order legs instead of castors to be able to have kick plates. Installation of Gantry Glass Gantry Glass Standard Fully Enclosed Gantry Glass Island Gantry Glass Parry-British Built for Purpose IN500-1...
- Page 11 Installation or movement of shelves Parry-British Built for Purpose IN500-1...
-
Page 12: Operating Instructions
Test to ensure food is kept at serving temperature. Whilst serving is not in place best practice is to keep the lids on the containers. After Use Turn off power dials to the Hot Cupboard, Hot Top and power switch Parry-British Built for Purpose IN500-1... -
Page 13: Cleaning Instructions
With the containers removed wipe down the machine with a soft cloth, do not use abrasive materials. Stainless steel cleaners maybe used and cleaning instructions on the product must be adhered to. Never clean the unit with water jets. Parry-British Built for Purpose IN500-1... -
Page 14: Maintenance Instructions
Maintenance and service must only be undertaken by a qualified electrician. Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts. -
Page 15: Fault Finding
Gantry not lighting illuminated. If there is no Turn on mains power illumination See an engineer to replace faulty switch Single bulbs not lighting Check if the bulb has blown Replace with a 200W bulb Parry-British Built for Purpose IN500-1... -
Page 16: Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void. -
Page 17: Wiring Diagram
Wiring Diagram Parry-British Built for Purpose IN500-1... -
Page 18: Exploded View
Exploded View Parry-British Built for Purpose IN500-1... -
Page 19: Parts List
CASTOR100BHD Braked Castor After Oct 2021 castor in use CASTOR100HDB/C Gland GLAND0M16 Gland Nut LOCKNTM16 Rack HCWIRESHELF Shelf Support Rail No Code Shelf Supporting Bar (Sizes Vary) No Code Door Magnet DRCT00010 Door Roller DOOROLLER Parry-British Built for Purpose IN500-1... - Page 20 FS-IG2 (Size 2 GN) FS-IG3 (Size 3 GN) Island Glass FS-IG4 Size 4 GN) FS-IG5 (Size 5 GN) FS-AG2 (Size 2 GN) FS-AG3 (Size 3 GN) Assisted Glass FS-AG4 (Size 4 GN) FS-AG5 (Size 5 GN) Parry-British Built for Purpose IN500-1...
-
Page 21: Warranty Information
Parry and not the sale or installation date of the equipment. Please ensure you have referred to the manufacturer’s instruction before placing a warranty... -
Page 22: Disposal & Recycling
Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in order to help conserve the environment.
