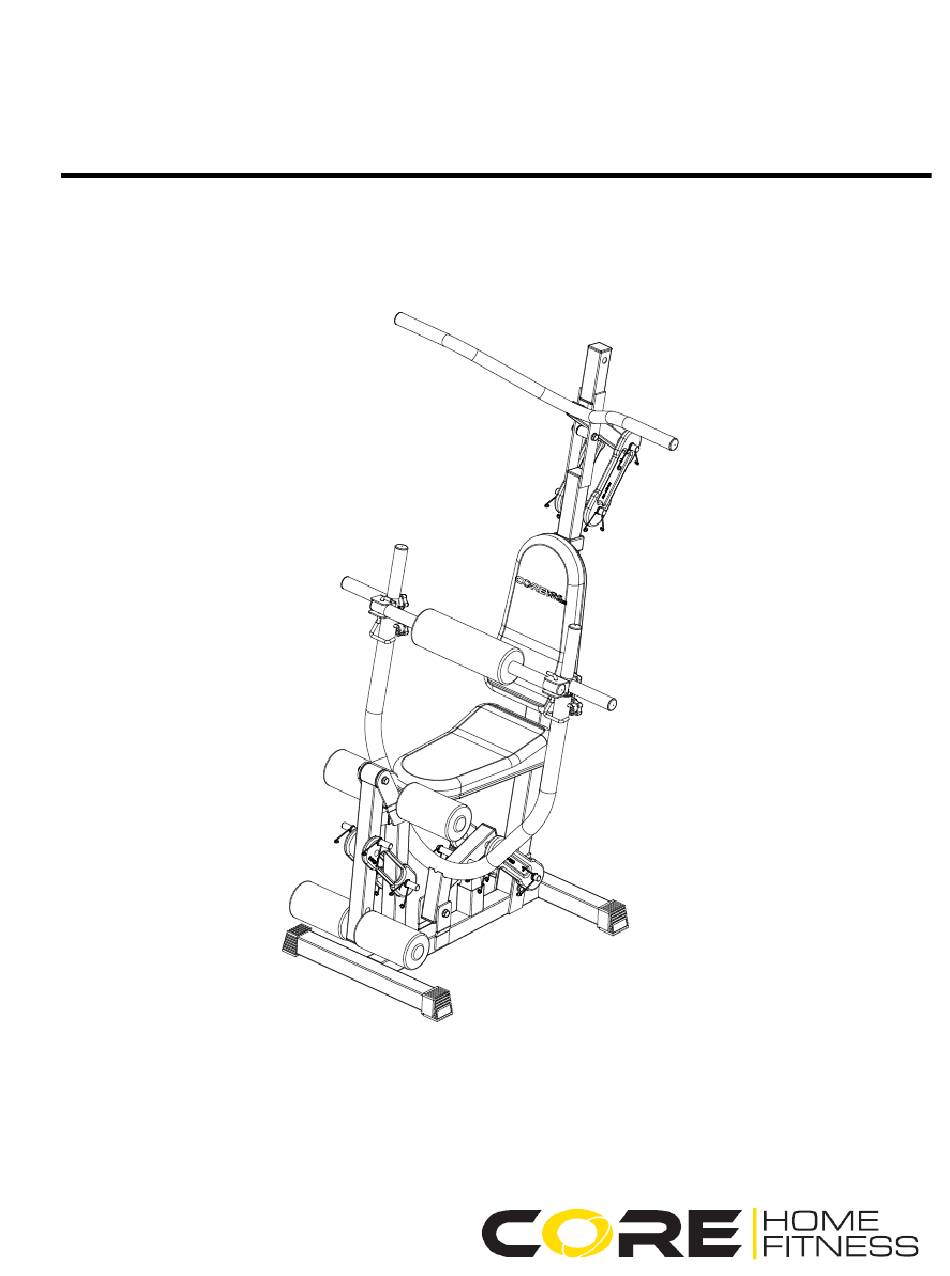

- Page 1 MUSCLE BUILDER MB1000 ’ W N E R A N U A L...
-
Page 2: Table Of Contents
Labels and Placards ................................Warranty and Disclaimer ................................ Copyright 2020 by CORE HOME FITNESS Health & Fitness Co., Ltd. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from CORE HOME FITNESS Every effort has been made to keep this information current;... -
Page 3: Introduction
NTRODUCTION Thank you for choosing the MUSCLE BUILDER 1000.This unit has been designed to provide the user the most rewarding experience based upon the carefully planned features it possesses. The design elements of this product will provide you with a comfortable, intuitive, safe and reliable experience, guiding you to a habit-forming lifestyle. -
Page 4: Safety Instructions
AFETY NSTRUCTIONS Read this Owner's Manual carefully before assembling, servicing, or using your MUSCLE BUILDER 1000. WARNING: SERIOUS INJURY MAY OCCUR IF THESE SAFETY PRECAUTIONS ARE NOT OBSERVED. UNDERSTANDING EACH AND EVERY WARNING TO THE FULLEST IS IMPORTANT. IF ANY OF THESE WARNINGS ARE UNCLEAR, CONTACT OUR PRODUCT SUPPORT FOR CLARIFICATION. -
Page 5: Assembly And Setup - Mb1000
Verify that all parts listed above are included in your shipment. Take time now to enter your MUSCLE BUILDER 1000 serial number in the space below. If parts are missing, or if you have any operational questions, please call CORE HOME FITNESS’s Service department; have your serial number ready. -
Page 6: Assembly
ASSEMBLY - Many of the parts in this instruction manual are already preassembled to make your work easier. Diagram 1 1. Attach Seat Frame to Back Frame Attach the Seat (3) to Mainframe (1) using hardware 15A, 21, 19. Attach the Backrest (2) to Seat (3) + Mainframe (1) assembly using hardware 15D, 21, 19. - Page 7 2. Install the Press Arms & Leg Diagram 2 Assembly to the Frame Assembly (Assy Ⅱ) Align the Lever for Chest Muscle Exercise (11) to the Mainframe (1). Install the Plastic Bushing (8) into the base of the Lever for Chest Muscle Exercise (11).
- Page 8 3. Install the Shoulder Press Arms Diagram 3 Align Upper Handle Bar Assembly (4) to Adjustable Press Support (5), using hardware (15B, 21, 19). Tighten the hardware securely. Hardware: (1) Bolt M10 x 70 mm – Item 15B (2) Washer 10 – Item 21 (1) Hex Nut M10 - Item 19 (2) Round Cap - Item 35 (1) Plastic Plug 38 x 38 mm –...
-
Page 9: Exercise Guidelines
■ BE SURE that all warning labels and placards affixed to the MUSCLE BUILDER 1000 remain on the unit. DO NOT alter warning labels and placards. BE SURE that each user reads and understands the information shown on all labels and placards (safety, instructional and/or other). -
Page 10: Preventive Maintenance
(adjustment or parts replacement) should be performed. If any components are found to be worn or damaged, the unit should be removed from service until repairs can be made. Only components supplied or approved by CORE HOME FITNESS shall be used to maintain and/or repair the unit. -
Page 11: Labels And Placards
ABELS AND LACARDS 050-5763 050-5764 ’ CORE H 1000 O OME MUSCLE BUILDER WNER ANUAL... -
Page 12: Warranty And Disclaimer
ISCLAIMER CORE HOME FITNESS warrants all frameworks for a period of 10 years. All moving parts are warranted for 2 years. 10-year limited warranty on structural frame not including coatings. 90 days on upholstery stitching only, cables and belts. Warranty is for parts only. Warranty is good and available to the original purchaser only as noted by CORE HOME FITNESS invoice and is not transferable nor assumable. - Page 13 CORE HOME FITNESS 8401 Southern Boulevard Youngstown, Ohio 44512, USA E-mail:Support@CoreHomeFitness.com Phone: 1-800-520-1663 PART NUMBER: MB1000-15 Rev. A ’ CORE H 1000 O OME MUSCLE BUILDER WNER ANUAL...
Need help?
Do you have a question about the MUSCLE BUILDER 1000 and is the answer not in the manual?
Questions and answers
I need information or video of how to install the tension bands?
To install the tension bands for the Core Home Fitness MUSCLE BUILDER 1000, follow these steps:
1. Insert Adjustable Fix Pins – Place the Adjustable Fix Pin (14, 14A) into Assembly IV as shown in Diagram 4.
2. Attach Tension Bands – Install the Light Tension Bands (7) and Middle Tension Bands (25) onto Adjustable Fix Pin (14).
3. Attach Heavy Tension Bands – Install the Heavy Tension Bands (16) onto Adjustable Fix Pin (14A).
4. Secure with Spring Clips – Use Spring Clip (38) to secure the tension bands in place as shown in Diagram 4.
Ensure all components are properly aligned and secured before using the equipment.
This answer is automatically generated
